Manitowoc Q Series - Section 2 - Installation Instructions; Dimensions

Section 2 Installation Instructions
2-1
Section 2
Installation Instructions
Dimensions

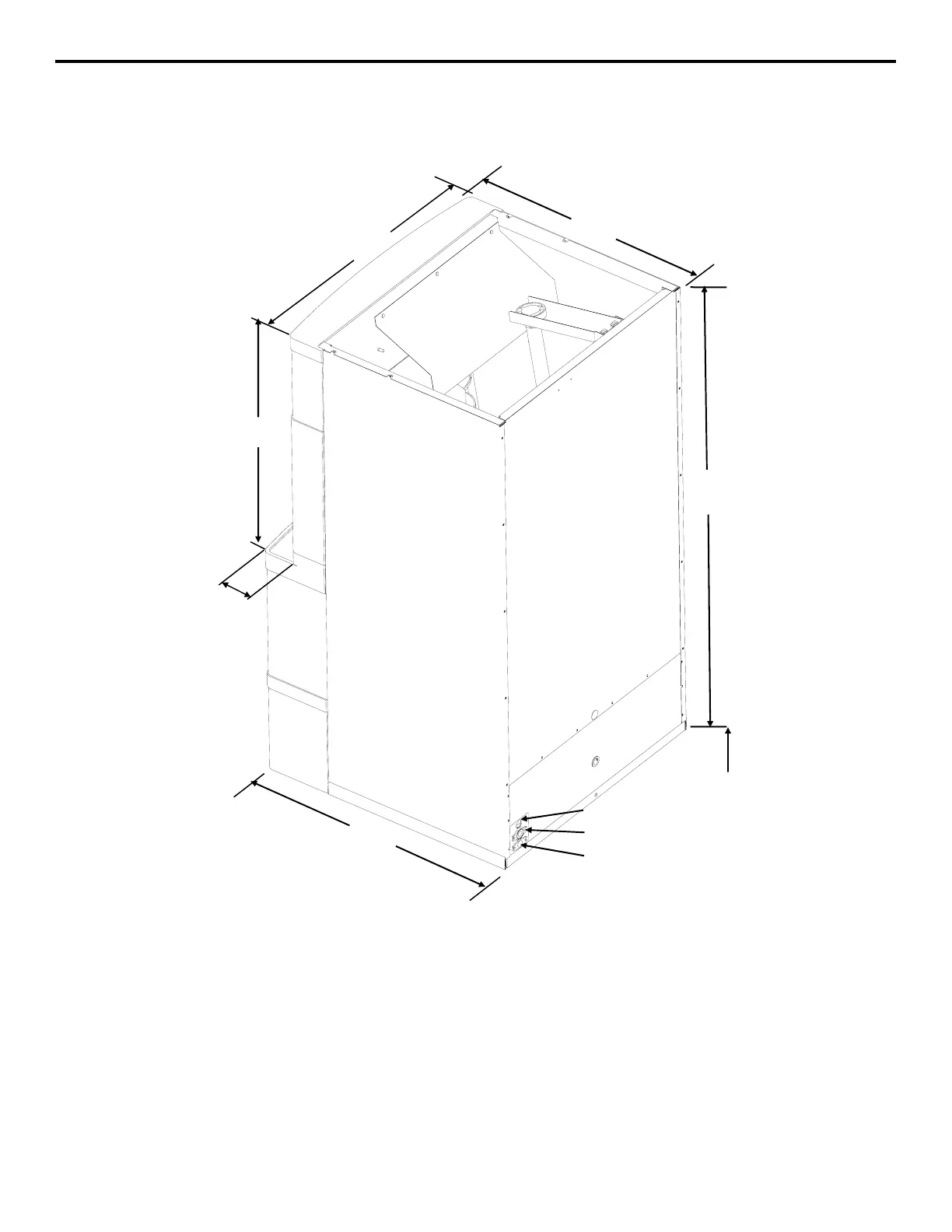

SV1658G
28.50”
(72.4 cm)
54.50”
(138.4 cm)
3.50”
(8.9 cm)
28.00”
(71.1 cm)
WATER INLET 3/8″ (0.95 CM) FPT (QFA 291 ONLY)
ELECTRICAL 6’ (1.8M) CORD SUPPLIED
30.25”
(76.8 cm)
32.00”
(81.3 cm)
DRAIN 1/2″ (1.27 CM) FPT
ADD 6″
(
15.2 CM
)
FOR LEGS
