Manitowoc Q Series User Manual

Section 6 Service
6-5
Upper Bearing Assembly Removal
WARNING
Before removing any parts, unplug or disconnect
the electric power to the dispenser at the electric
service switch box.
1. Remove all ice from the bin.
2. Remove the auger assembly. (Refer to page 6-2.)
3. Remove three thumbscrews from the agitator
auger bearing to remove the bearing.
4. Remove three thumbscrews from the delivery
auger bearing to remove the bearing.

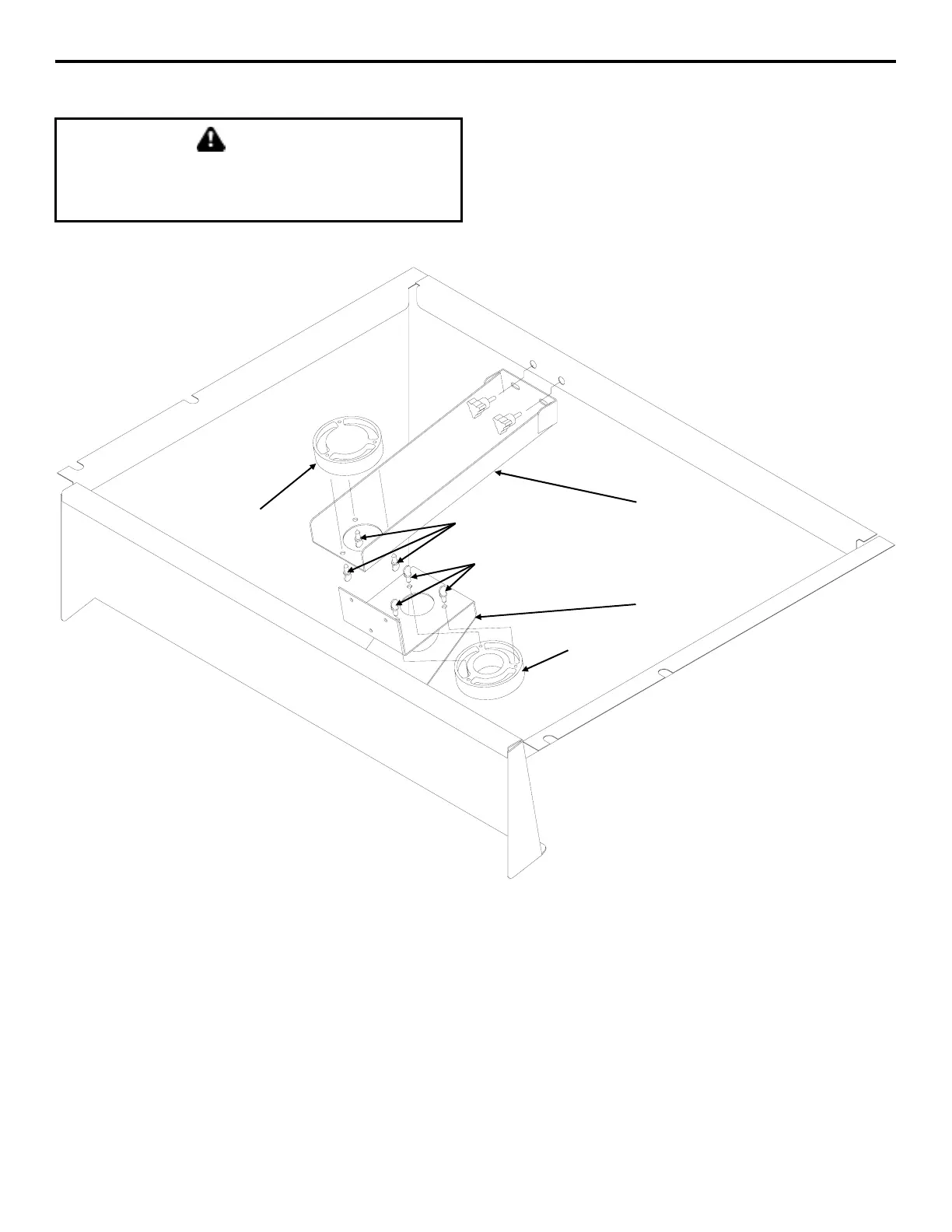

Upper Bearing Assembly
SV1663G
UPPER DELIVERY
AUGER BEARING
DELIVERY
AUGER
BEARING
BRACKET
UPPER AGITATOR
AUGER BEARING
AGITATOR
AUGER
BEARING
BRACKET
DELIVERY AUGER
BEARING
THUMBSCREWS
AGITATOR AUGER
BEARING
THUMBSCREWS
