Manitowoc QM30A Service Manual

Installation Instructions Section 2
2-6
ICE MAKING WATER INLET TUBING
0.95 cm (3/8”) MINIMUM INSIDE DIAMETER
ICE MAKING/BIN WATER DRAIN TUBING
1.59 cm (5/8”) MINIMUM INSIDE DIAMETER

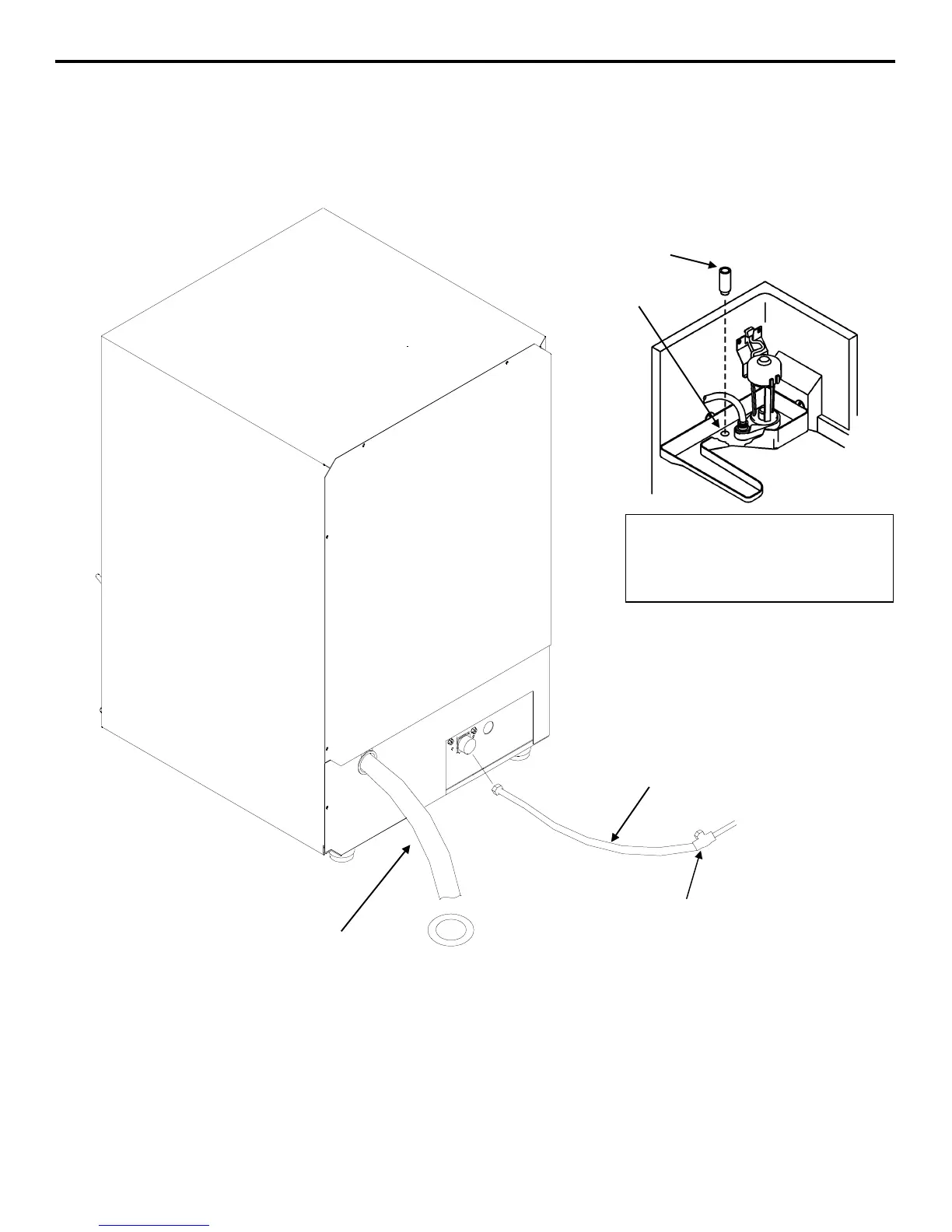

Typical Water Supply and Drain Line Sizing and Connections
sv1680b
WATER SHUT OFF VALVES
OVERFLO
W
TUBE
DRAIN
HOLE
Important
Over flow tube must be securely
installed during initial set up.
