Manitowoc QM30A Service Manual

Section 6 Service
6-1
Section 6
Service

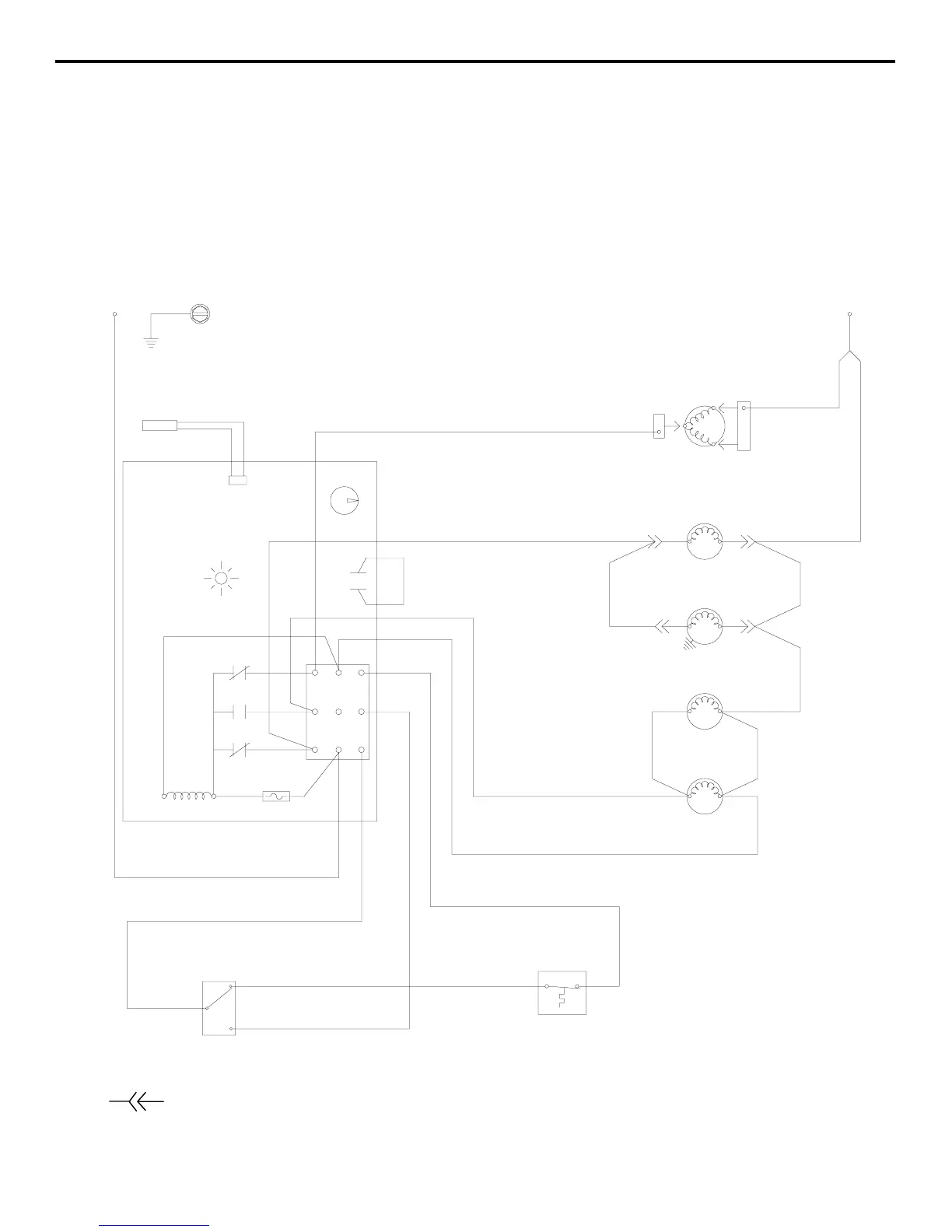

Wiring Diagram QM30 230/50/1
CAUTION: DISCONNECT POWER BEFORE
WORKING ON ELECTRICAL CIRCUITRY.
NOTE: DIAGRAM SHOWN DURING THE
FREEZE CYCLE
L1
L2
THERMISTOR
CONTROL
BOARD
LIGHT
1
2
3
TRANS. FUSE
ICE THICKNESS
ADJUSTMENT DIAL
(3)
(9)
JUMPER WIRE
(6)
(2)
(1)
(13) (20)
(14)
(21)
(22)
(23)
(24)
C
S
R
OVERLOAD
PROTECTOR
COMPRESSOR
STARTING
DEVICE
FAN MOTOR
WATER PUMP
HOT GAS
SOLENOID
WATER FILL
SOLENOID
BIN
THERMOSTAT
(4)
(12)
(7)
(8)
WASH
OFF
ON
FEMALE/MALE CONNECTOR
WIRE NUMBER DESIGNATION (NUMBER MARKED AT EACH END OF WIRE)
(
)
TOGGLE
SWITCH
sv1773A
