Manitowoc Shuttlelift CD5520

MAINTENANCE CD5520/YB5520 OPERATOR MANUAL
6-8 Published 07-06-2017, Control # 406-03

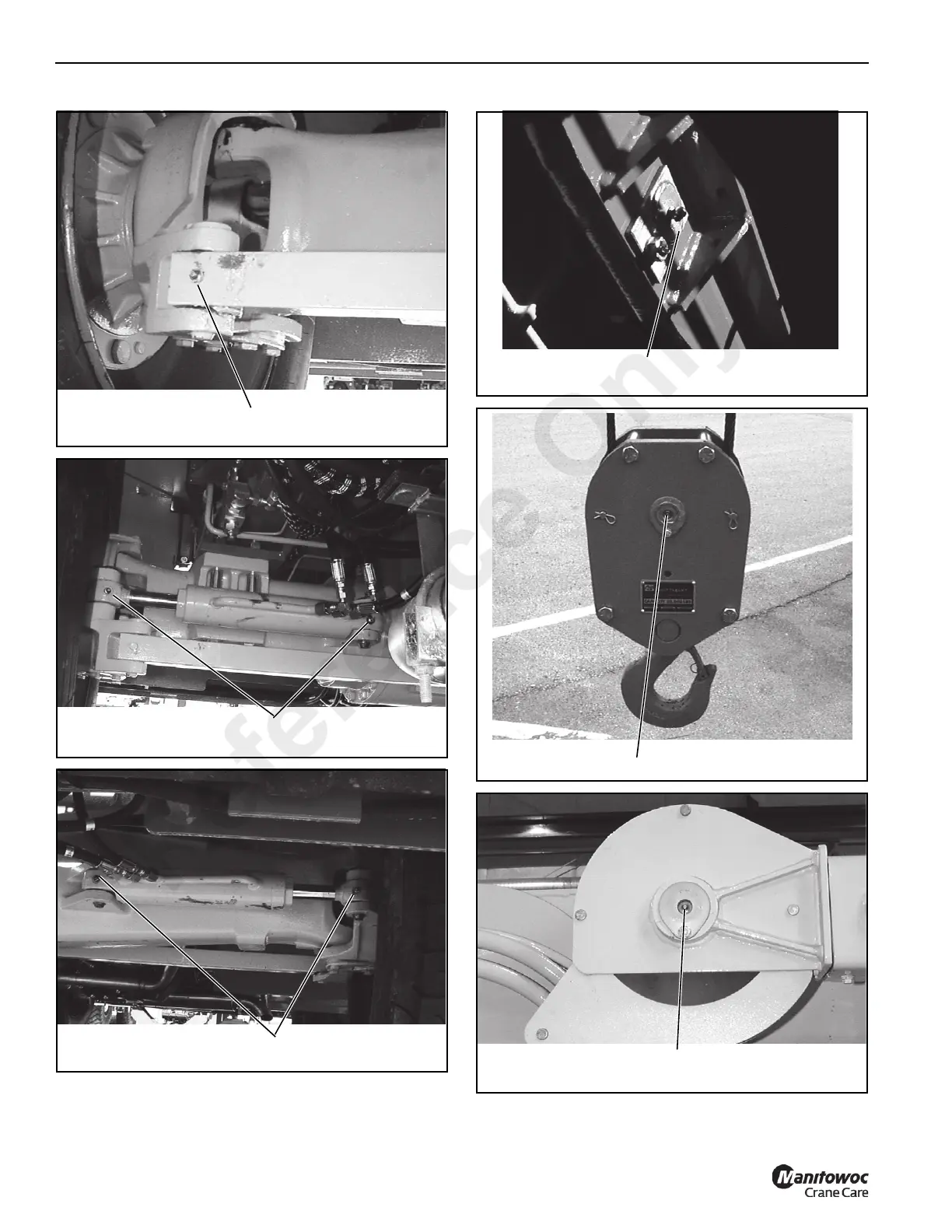

FIGURE 6-8
p0422
Steering Link Lube Points
(Rear Axle)
FIGURE 6-9
p0418
Steering Cylinder Pivot Ends Lube
Points (Front Axle)
FIGURE 6-10
p0420
Steering Cylinder Pivot Lube Points
(Rear Axle)
FIGURE 6-11
p0423
Pivot Lube Points
(Rear Axle)
FIGURE 6-12
p0391
Drop Block Lube Point
FIGURE 6-13
p0315
Boom Extension Head Sheave
Lube Point
Reference Only
