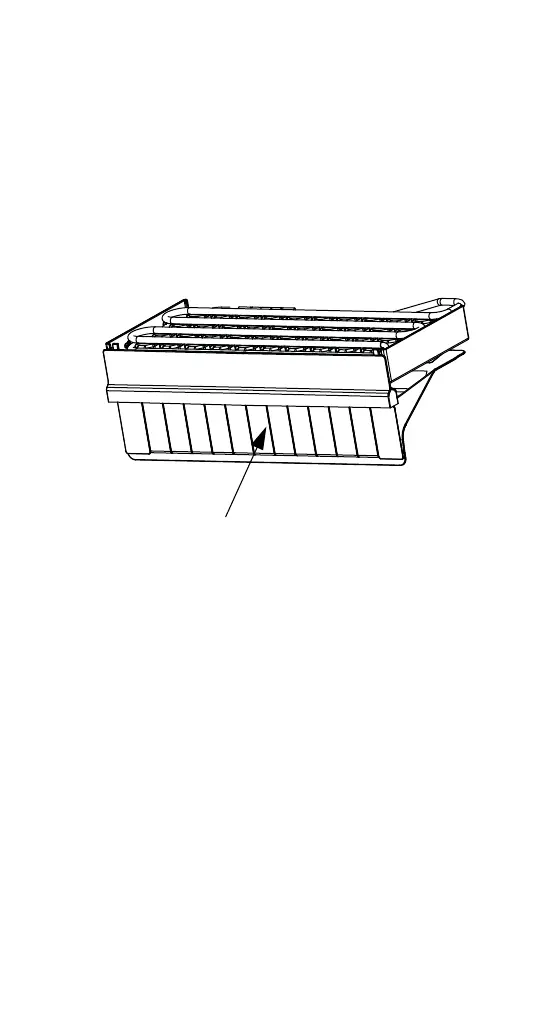

Water Curtain
The water curtain is designed to keep the spraying
water from escaping the evaporator compartment.
Removal of the bin door is not required, but enhances
access.
1. Grasp the ice curtain and lift up.
2. To re-install into ice machine, pivot the water
curtain and pull down into position. Make sure
tabs are secure in grooves.
