7.2. Lever valve

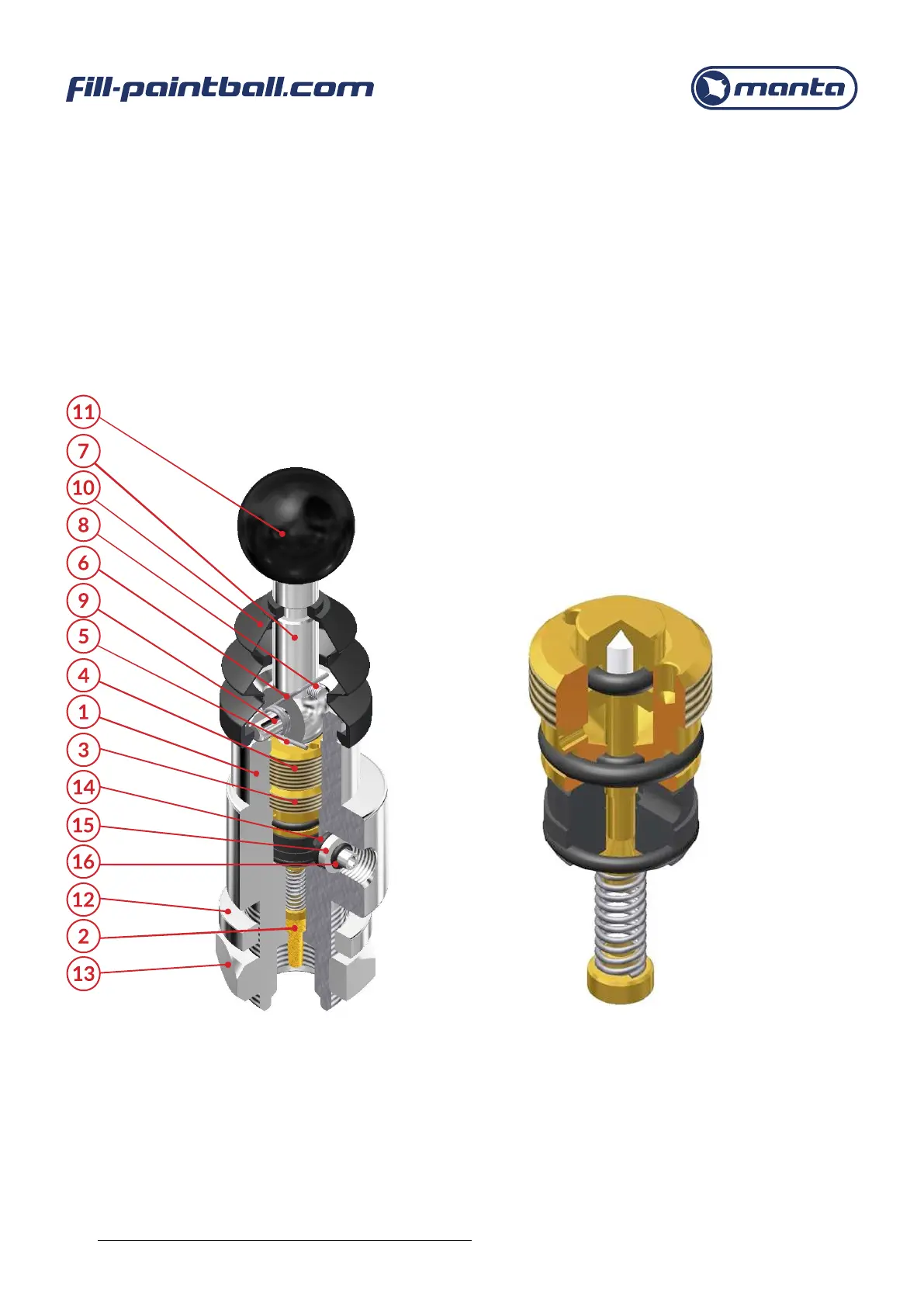

Figures 4 and 5 show the construction of the ll station lever valve ZD-3500 and the valve
insert WZ-1000. All of the appliance’s components are listed together with their catalogue
numbers in Table 3.
Figure 7: Lever Valve ZD-3500 Figure 8: Valve insert WZ-1000.
