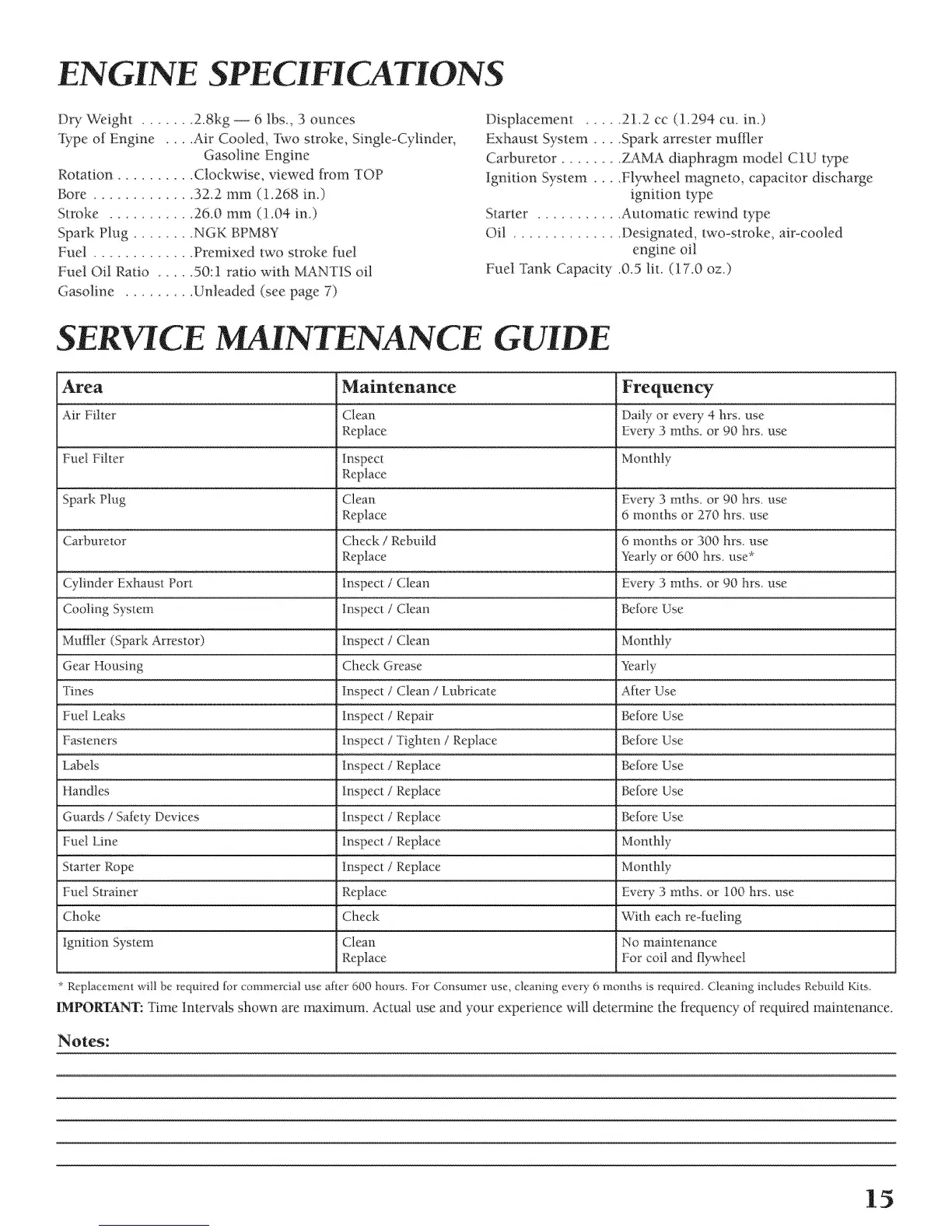

ENGINE SPECIFICATIONS
Dry Weight ....... 2.8kg -- 6 lbs., 3 ounces
I)pe of Engine .... Air Cooled, Two stroke, Single-Cylinder,
Gasoline Engine
Rotation ....... Clockwise, viewed from TOP
Bore ............ 32.2 mnr (1,268 in.)
Stroke .......... 26.0 mm (1.04 in)
Spark Plug ........ NGK BPMSY
Fuel ........... Premixed two stroke fuel
Fuel Oil Ratio ..... 50:1 ratio with MANTIS oil
Gasoline ......... Unleaded (see page 7)
Displacement ..... 21.2 cc (1.294 cu. in,)
Exhaust System .... Spark arrester muffler
Carburetor ......... ZAMA diaphragm model C1U type
Ignition System .... Flywheel magneto, capacitor discharge
ignition type
Starter ........... Automatic rewind type
Oil ............ Designated, two-stroke, ai>cooled
engine oil
FueI Tank Capacity .0.5 lit. (17.0 oz)
SER CE MAINTENANCE GUIDE
Area Maintenance Frequency
Air Filter Clean Daily or every 4 hrs use
Replace Every 3 mths. or 90 hrs. use
Fuel Filter Inspect Mor_th|y
Replace
Spark Plug Clean Every 3 mtbs. or 90 hrs_ use
Replace 6 months or 270 hrs. use
Carburetor Check / Rebuild 6 months or 300 hrs. use
Replace Yearly or 600 brs. use*
Cylinder Exhaust Port Every 3 mths. or 90 hrs. use
luspect / Clean Betore Use
Inspect / Clean Monthly
Gear }lousing Check Grease Yearly
Trees Inspect / Clean / Lubricate After Use
Fuel Leaks Inspect / Repair Betore Use
Fasteners Inspect / Tighten / Replace Bet}:_reUse
Labels Befure Use
Handles Behare Use
Guards / Safety Devices Inspect / Replace Before Use
Fuel Line Inspect / Replace Monthly
Starter Rope Monthly
Fuel Strainer Replace EveW 3 mths. or t00 hrs. use
Choke Check With each reo_t_aeling
Ignition .System Clean No maintenance
Replace For coil and flywheel
Replacement w_tlbe required for commerdal use aher 600 hours. For CoT_sumeruse, cleaning every 6 months is required. Cleaning i_c[udes Rebuild Kils.
IMPORTANT: Time Intervals shown are rnaxinmm. Actual use and your experience will determine the frequency of required maintenance.
Notes:
