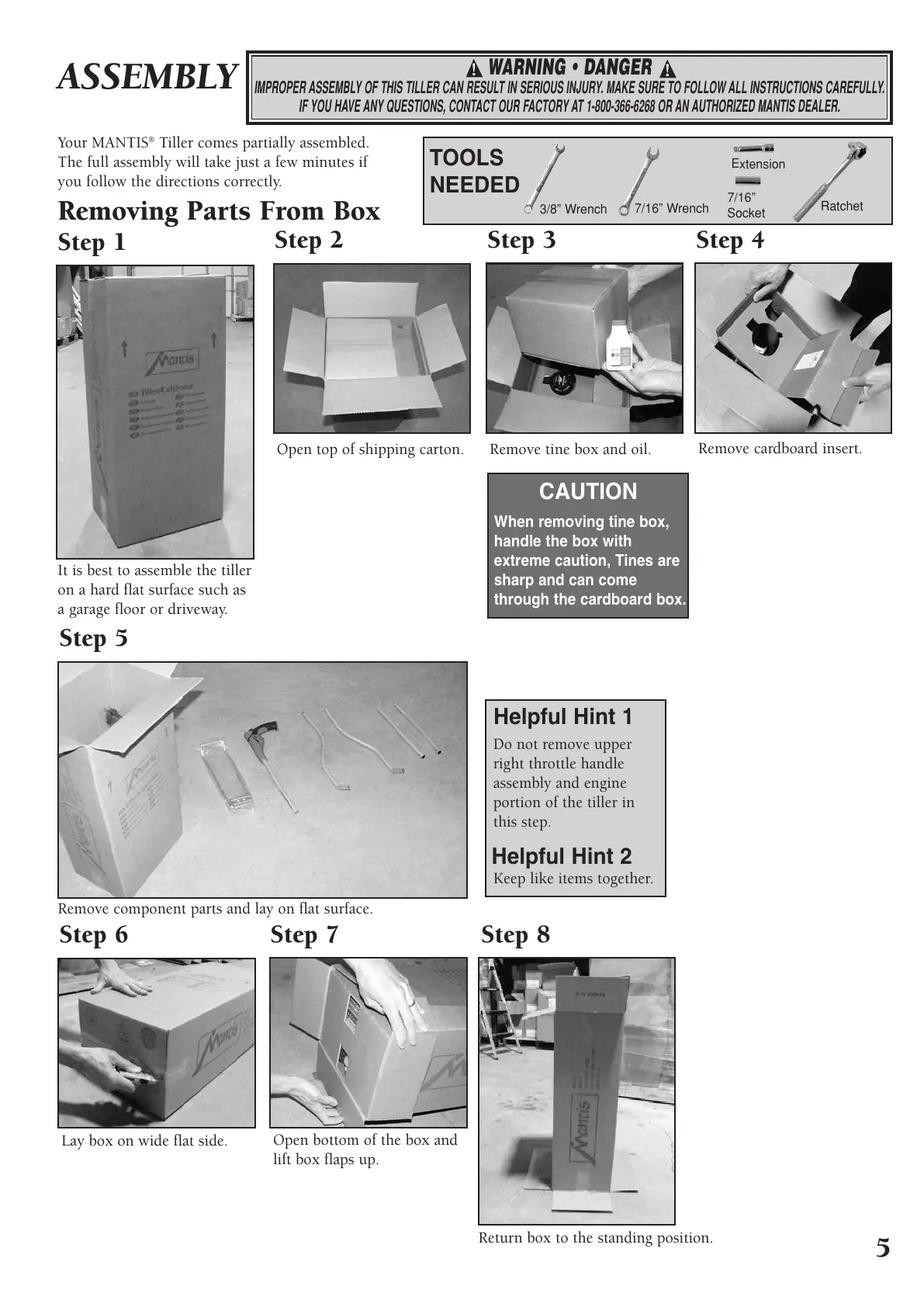

Removing Parts From Box
ASSEMBLY
Step 1
It is best to assemble the tiller
on a hard flat surface such as
a garage floor or driveway.
Step 2
Open top of shipping carton.
Your MANTIS
®
Tiller comes partially assembled.
The full assembly will take just a few minutes if
you follow the directions correctly.
Step 5
Remove component parts and lay on flat surface.
Step 3 Step 4
Remove tine box and oil.
Remove cardboard insert.
Step 6 Step 7 Step 8
Lay box on wide flat side.
Open bottom of the box and
lift box flaps up.
Return box to the standing position.
Do not remove upper
right throttle handle
assembly and engine
portion of the tiller in
this step.
Helpful Hint 1
Keep like items together.
Helpful Hint 2
CAUTION
When removing tine box,
handle the box with
extreme caution, Tines are
sharp and can come
through the cardboard box.
5
Ratchet
7/16” Wrench
3/8” Wrench
Extension
7/16”
Socket
TOOLS
NEEDED
WARNING • DANGER
IMPROPER ASSEMBLY OF THIS TILLER CAN RESULT IN SERIOUS INJURY. MAKE SURE TO FOLLOW ALL INSTRUCTIONS CAREFULLY.
IF YOU HAVE ANY QUESTIONS, CONTACT OUR FACTORY AT 1-800-366-6268 OR AN AUTHORIZED MANTIS DEALER.
!
!
