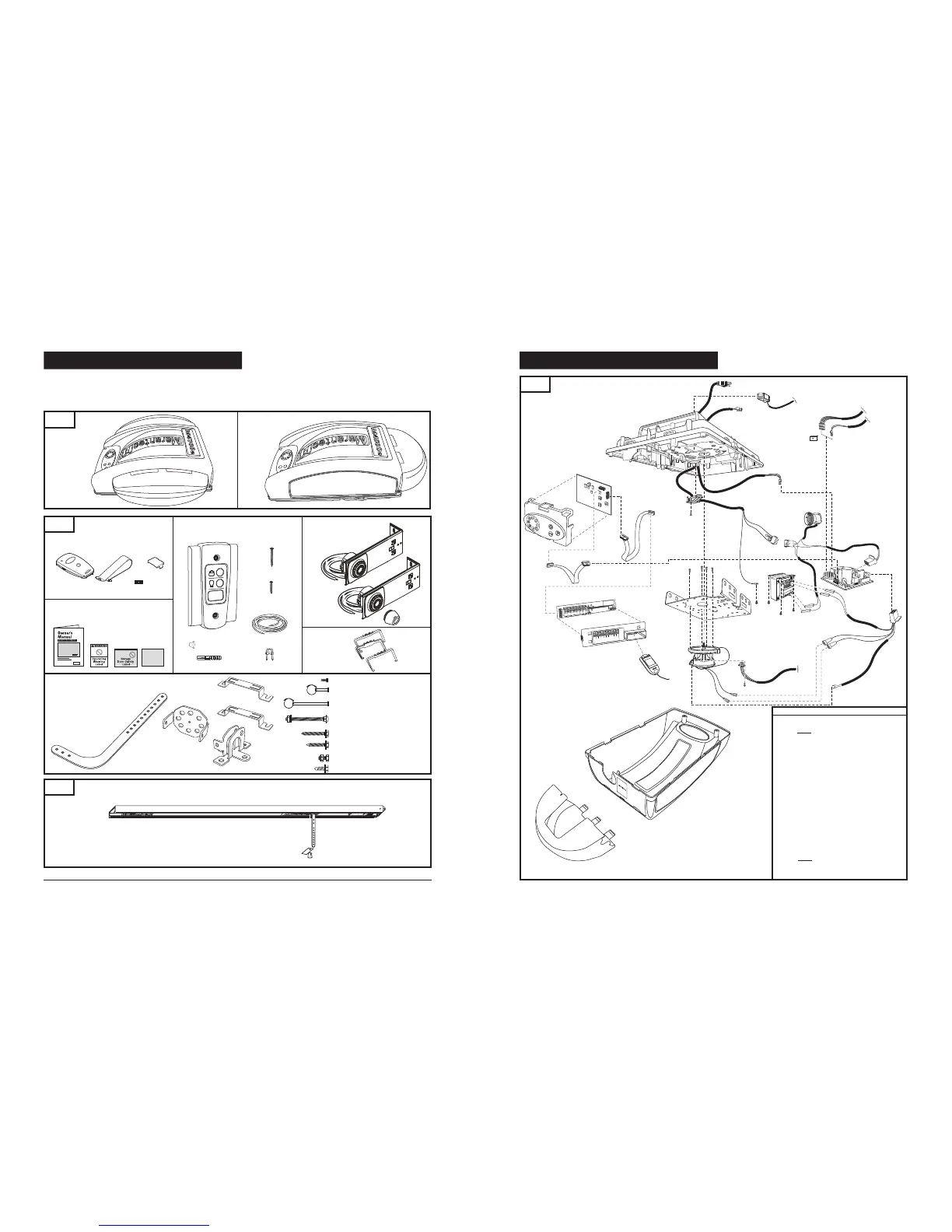

6. OPERATOR PACKAGE CONTENTS
The following items are included with your Garage Door Operator (GDO). All hardware components are located in the GDO
carton. The accessories are packaged with their respective hardware in separate packs for ease of identification and use.
Fig. 7
Fig. 6
OPERATORS
2-Channel Mini Transmitter
Transmitter
Visor Clip
Cover
Programming
Connector
Garage Door Operator Manual and
Safety Labels
ACCESSORIES
Wall Control Panel
(with Hardware Kit)
Photo Eye Safety System
(packaged in separate carton)
RAIL ASSEMBLY
6
Fig. 8
18. OPERATOR ASSEMBLY PARTS (cont‘d)
Drywall Anchors (2)
Staples (10)
(2)
30 Ft. 2-Conductor
Wire
Tapered-Head Screws
Screw Caps (2)
Machine screws
(2)
Models (per application)
Belt Chain
7’ Door ML-807B ML-807C
8’ Door ML-808B ML-808C
10’ Door ML-810B ML-810C
31
M4700e
(Two Light
Operator)
M4500e
(One Light
Operator)
Warranty
Card
Items shown not actual size.
Fig. 55
1
2
22
11
33
44
55
66
77
88
1
2
3
4
5
6
7
8
9
10
M4500e Operator
6
5
3
1
2
4
7
8
9
12
10
11
13
19
20
15
18
16
6
17
14
*Guide for part replacement only
Item Part # Description
1 80350 Lamp Lens
2 83889 Housing with Labels
3 Chassis
4 78724 Wire Harness
5 8054389 Reference Switch
6 8030987 Power Cord
7 8007776 Strain Relief Cover
8 73557 Ribon Cable
9 73109 Ribon Cable
10 78914 Logic Board
11 79011 Control Panel
12 78938 Terminal Board
13 70014 Terminal Board Housing
14 78236 Modular Receiver
15 78156 Transformer
16 73699 Wire Harness (Motor / Transformer)
17 72784 Power Board
18 8055529 RPM Sensor w/Wire Harness
19 73894 Motor Assembly
20 Mounting Plate
21 60379 Clip
22* 83388 Harness (Locmatic ready operator)
5
18
21
Lag Screw (2): 5/16” x 1-3/4”
Curved Door Arm
#8009466
Plastite Screw (4): 6 X 14
Clevis Pin (1): 5/16” x 7/8”
Cotter Ring (1)
Carriage Bolt (2): 1/4” - 20 x 2”
Lock Washer (2): 1/4”
Hex Nut (2): 1/4” - 20
Hex Bolt (2): 5/16” - 18 x 3/4”
Lock Nut (2): 5/16” - 18
Clevis Pin (1): 1/4” x 3-1/4”
Cotter Ring (1)
Hex Head Tek Screw (2): 1/4 x 3/4”
Hardware Kit
Lag Screw (4): 1/4” x 1-1/2”
Header Bracket
#8030742
Door Bracket
#8030743
Rail Clip (2)
#74744
Wire Holder Kit
22
22
