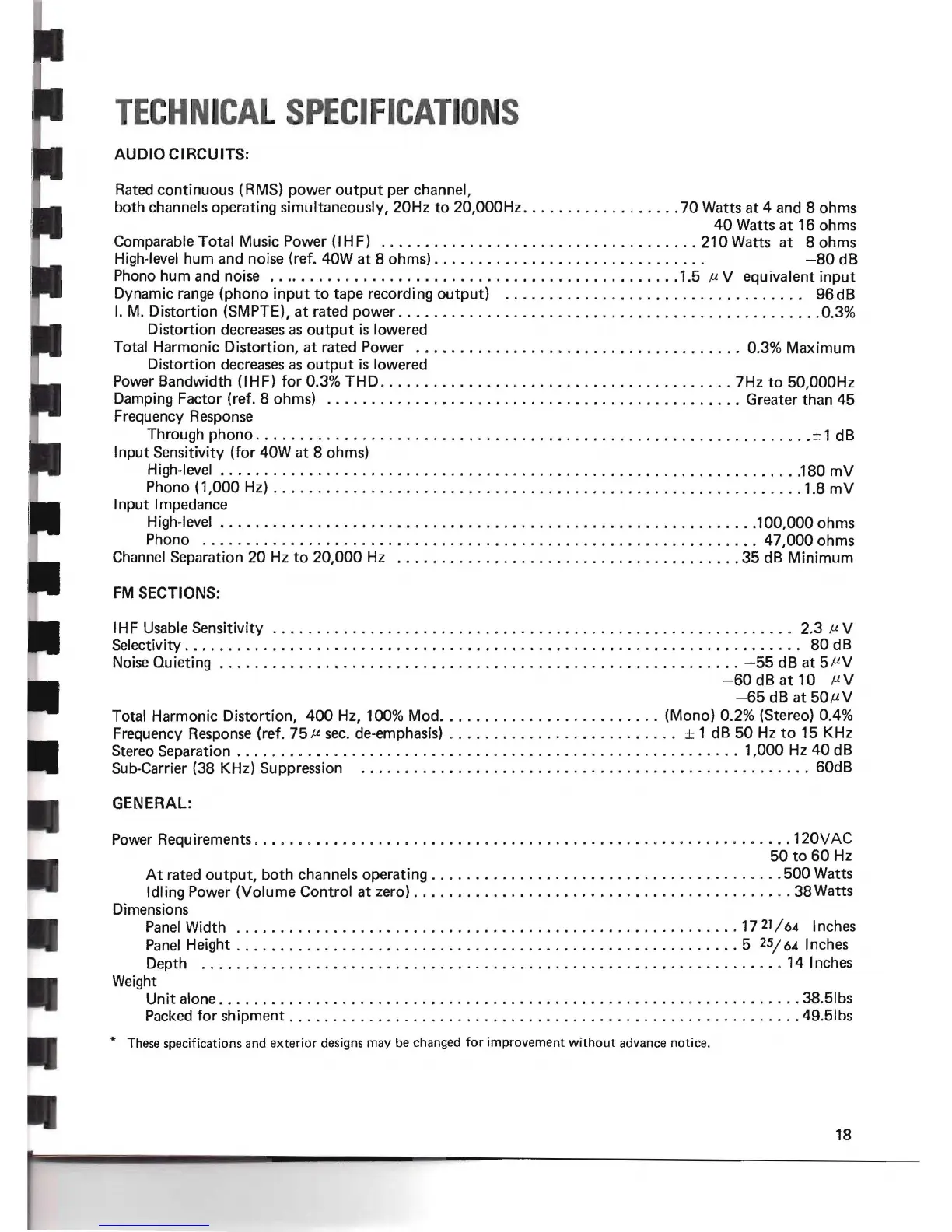

TE
CHN
ICA
L
SPECI
FICAT
IO
NS
AUDIO CIRCUITS:
Rated continuous (RMS) power
output
per channel,
both channels operating simultaneously, 20Hz
to
20,OOOHz
Comparable Total Music Power (I HF)
70 Watts at 4
40 Watts
210 Watts
and
at
at
8 ohms
16 ohms
8 ohms
High-level hum and noise (ref. 40W at 8 ohms). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
-80
dB
Phono hum and noise 1.5
f.1.
V equivalent
input
Dynamic range (phono
input
to
tape recording
output)
96dB
I. M. Distortion (SMPTE), at rated power 0.3%
Distortion
decreases
as
output
is lowered
Total Harmonic Distortion, at rated Power 0.3% Maximum
Distortion
decreases
as
output
is lowered
Power Bandwidth
(lHF)
for
0.3%
THD
, . . 7Hz
to
50,OOOHz
Damping Factor (ref. 8 ohms) Greater than 45
Frequency
Response
Through phono ±1 dB
Input Sensitivity
(for
40W at 8 ohms)
High-level 180
mV
Phono (1,000 Hz) 1.8
mV
Input Impedance
High-level 100
,000
ohms
Phono 47,000 ohms
Channel
Separation 20 Hz
to
20,000 Hz
....
.
.......
............
.
.......•....
..
35 dB Minimum
FM SECTIONS:
IHF Usable Sensitivity
..
....................
.
..
.
•..
...
. .
..
..............
. . . . . . . . . 2.3
f.1.
V
Selectivity
Noise Quieting ,
Total Harmonic Distortion,
400
Hz, 100% Mod
Frequency
Response
(ref.
75f.1.
sec.
de-emphasis)
Stereo Separation
Sub-Carrier (38 KHz) Suppression
GENERAL:
Power Requirements
At
rated
output,
both channels operating
Idling Power (Volume Control at zero)
Dimensions
Panel
Width
Panel
Height
Depth
Weight
Unit
alone
Packed
for
shipment
" 80 dB
-55
dB at
5f.1.V
-60dBatl0
f.1V
-65
dB at 50f.1V
(Mono) 0.2% (Stereo) 0.4%
± 1 dB 50 Hz
to
15 KHz
1,000 Hz 40 dB
60dB
120VAC
50
to
60 Hz
500 Watts
38 Watts
17
21/64
Inches
5
25/64
Inches
14 Inches
38.5Ibs
49.5Ibs
* These specifications and
exterior
designs may be changed for improvement
without
advance notice.
18
