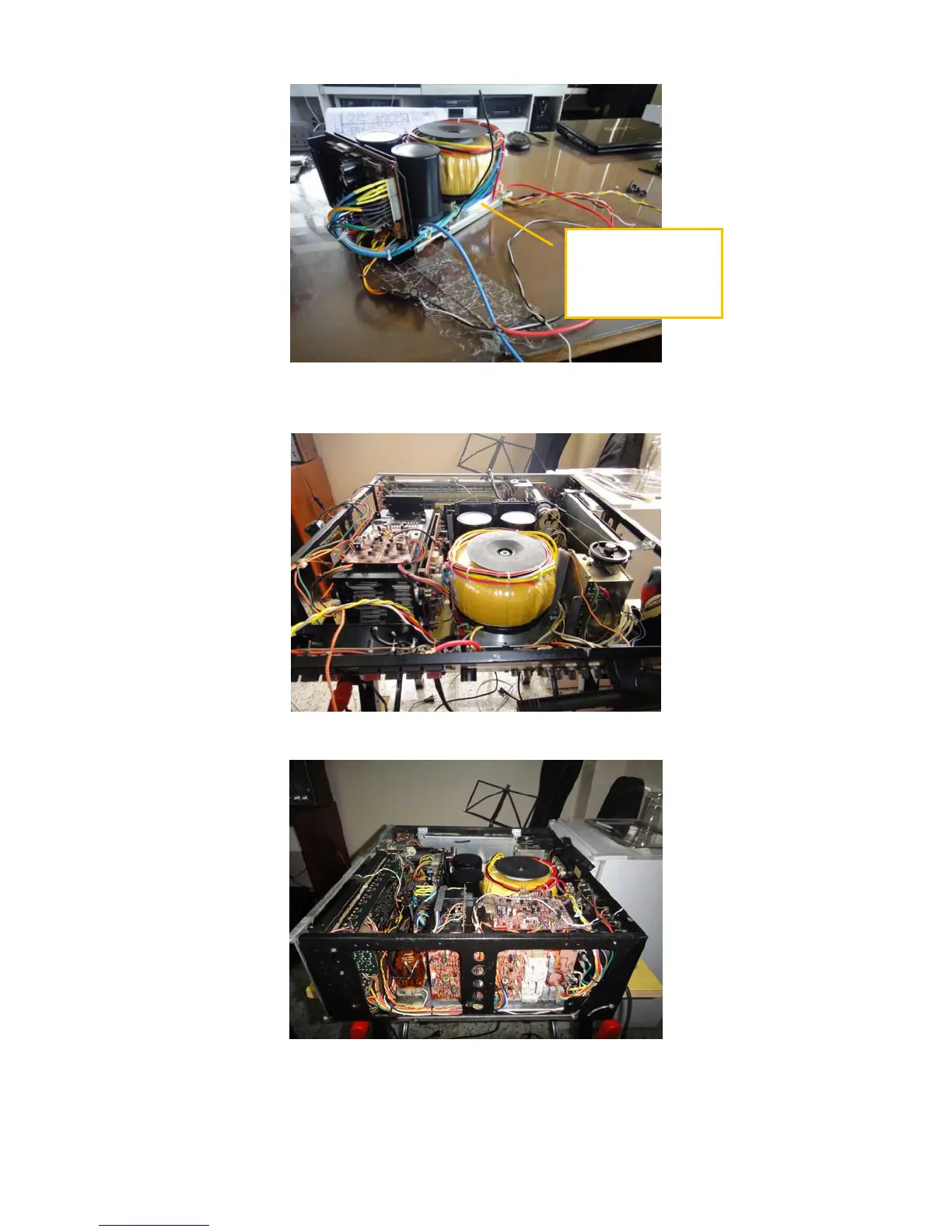

View of the new transformer and electrolytic capacitors of the power module, connected to the P800 board:
The transformer base is reattached to the receiver, using the same screws and connections, plus the aluminum
base for the new transformer:
Finalizing the connections (soft start and thermostats):
Aluminum base for
mounting the new
transformer.
