Bi-amp connection
Bi-amp connection is a method to connect separate amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification. This
connection enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing
a higher sound quality.

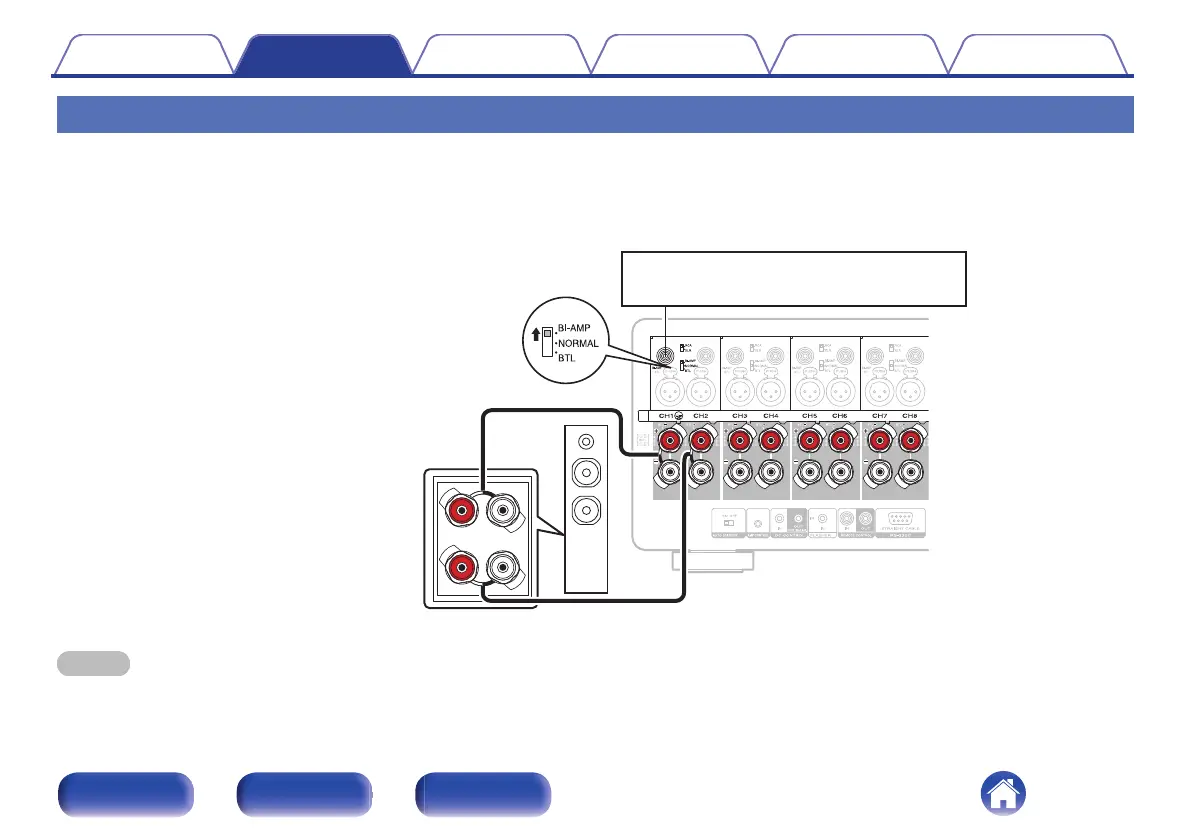

Example: Using channels 1 and 2 as a bi-amp
wq
Input to the odd-numbered channel (channel 1).
Switch the NORMAL/BI-AMP/BTL selector
setting to BI-AMP.
Connect one cable from
channel 1 to the tweeter of the
speaker and the other cable
from channel 2 to the woofer of
the speaker.
NOTE
0
When making bi-amp connections, be sure to remove the short-circuiting plate or wire between the speaker’s woofer and tweeter terminals.
0
Be sure to configure the and NORMAL/BI-AMP/BTL selector setting before turning the power on. If you try to change these settings after turning the power on, the settings
will not be applied.
