BTL connection
A BTL connection uses two channels to power one speaker. Two power amplifiers are used to output antiphase signals from one input signal, achieving
powerful audio reproduction.

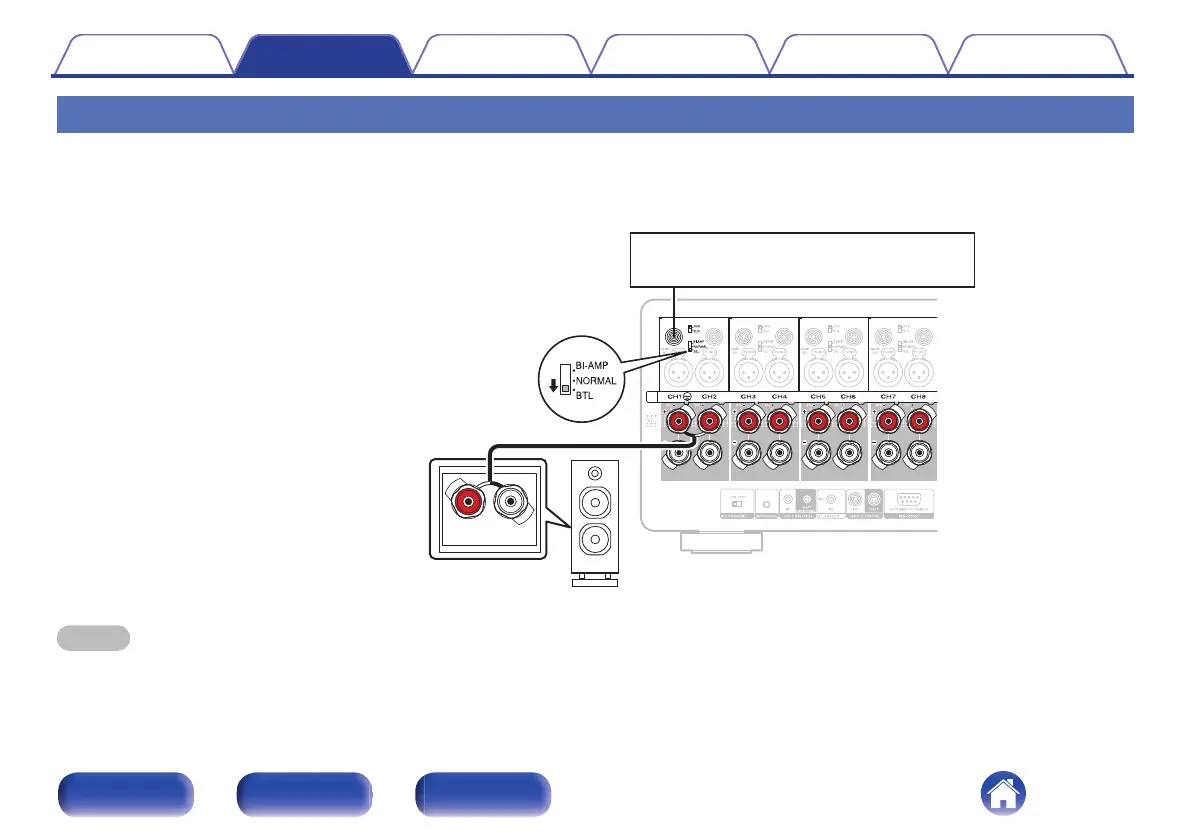

Example: Using channels 1 and 2 for a BTL connection
wq
Input to the odd-numbered channel (channel 1).
Switch the NORMAL/BI-AMP/BTL
selector setting to BTL.
Connect one cable from the
positive (+) side of channel 1 to
the negative (-) side of the
speaker and the other cable from
the positive side of channel 2 to
the positive side of the speaker.
NOTE
0
Be sure to configure the and NORMAL/BI-AMP/BTL selector setting before turning the power on. If you try to change these settings after turning the power on, the settings
will not be applied.
