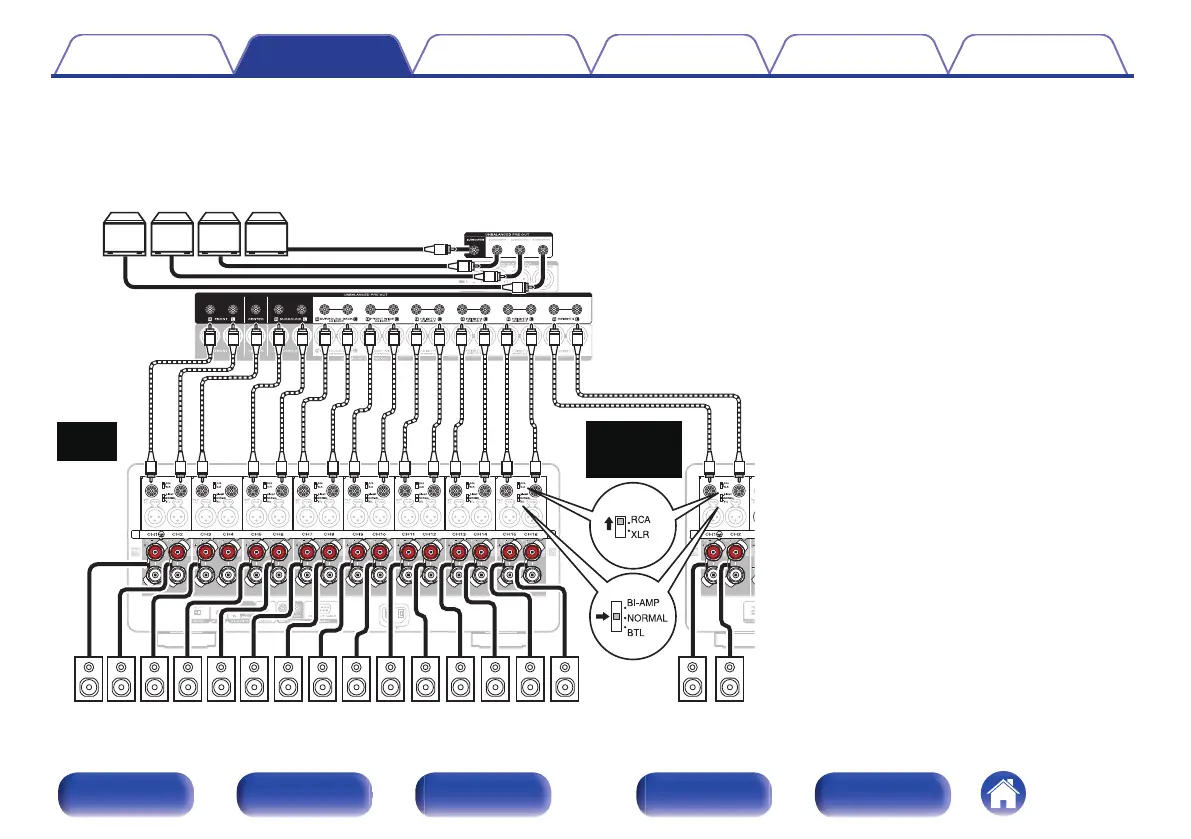

Example of connections to Marantz AMP 10 power amp
n
Connecting the UNBALANCED RCA PRE OUT connector
When using UNBALANCED RCA connectors for connection, set the input change switch to “RCA” on Marantz AMP 10.
z
1
When using a single surround back speaker, connect
it to the SURROUND BACK L terminal.
z2
The output terminals for Height/Ceiling/Dolby Atmos
Enabled speakers vary according to the speaker
combination that you use. For the PRE OUT connector
that connects each Height/Ceiling/Dolby Atmos
Enabled speaker, refer to “Amp Assign” -
“Layout” (v p. 218).
z
1
z
2
z
2
z
2
z
2
z
2
z
2
z
2
z
2
SW4 SW3 SW2 SW1
SR SLFR FL C RHR RHL TMR TML CH TSFHR FHLFWR FWL
SBLSBR
Marantz
AMP 10
Marantz
AMP 10
Second unit
