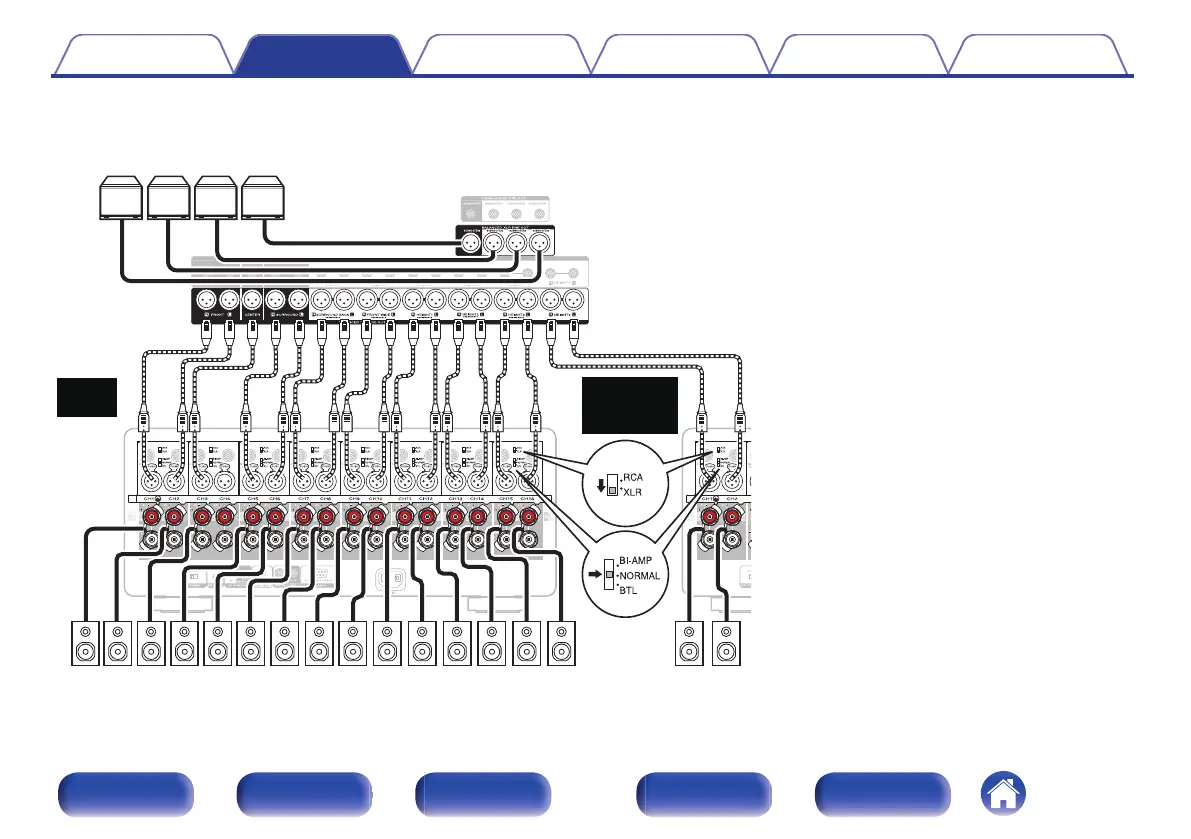

Connecting the BALANCED XLR PRE OUT connector
When using BALANCED XLR connectors for connection, set the input change switch to “XLR” on Marantz AMP 10.
z1
When using a single surround back speaker, connect it
to the SURROUND BACK L terminal.
z2
The output terminals for Height/Ceiling/Dolby Atmos
Enabled speakers vary according to the speaker
combination that you use. For the PRE OUT connector
that connects each Height/Ceiling/Dolby Atmos
Enabled speaker, refer to “Amp Assign” -
“Layout” (v p. 218).
z
2
z
2
z
1
z
2
z
2
z
2
z
2
z
2
z
2
SW4 SW3 SW2 SW1
SR SLFR FL C RHR RHL TMR TML CH TSFHR FHLFWR FWL
SBLSBR
Marantz
AMP 10
Marantz
AMP 10
Second unit
