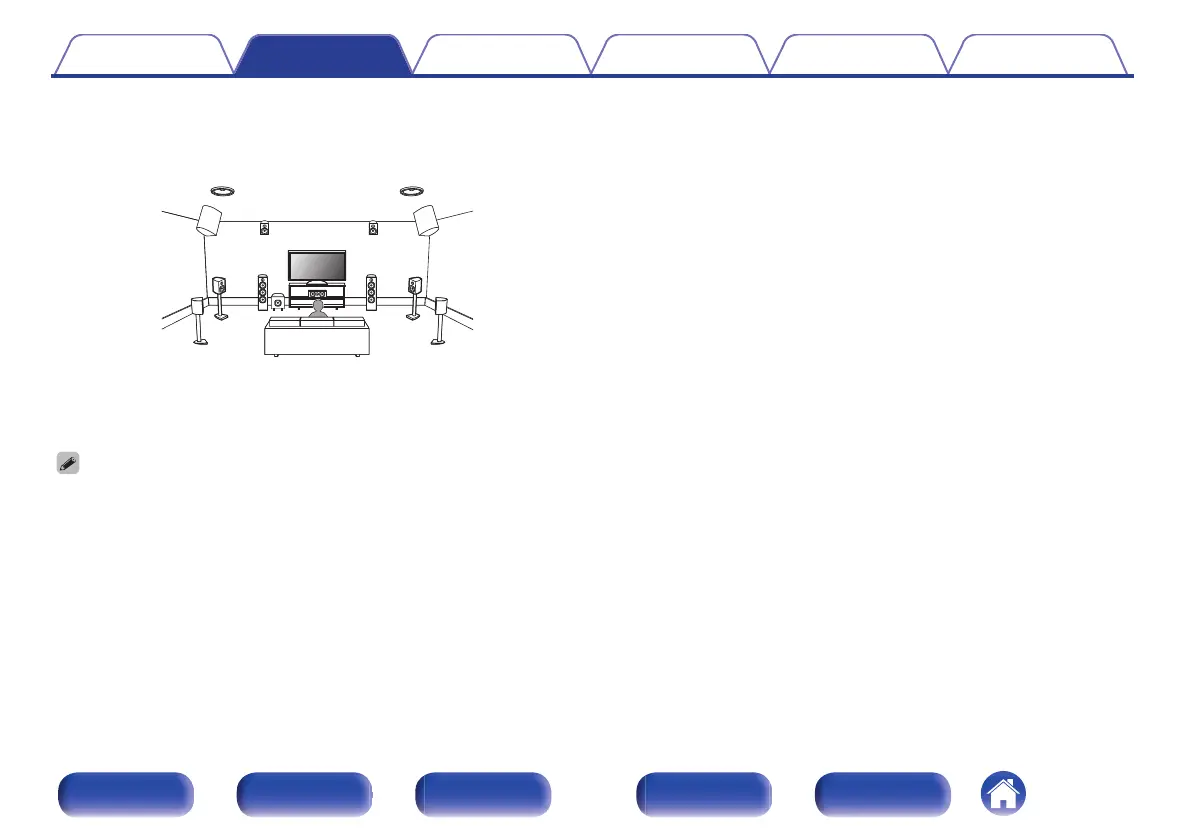

Example layout when using front wide and
three sets of height speakers
C
FL FR
SW
RSLS
TML TMR
FHL FHR
RHL RHR
FWL FWR
For each speaker connection, refer to “Connecting a power
amp” (v p. 43).
0
Set “Floor” to “5ch & FW” and “Height Sp” (or “Dolby Sp”) to “6ch” in the menu
when connecting in this configuration. (v p. 216)
0
You can change the Front Height Speakers, Top Middle speakers and Rear Height
Speakers to any Height/Ceiling/Dolby Atmos Enabled speakers in the “Amp
Assign” - “Layout” setting. (v p. 221)
