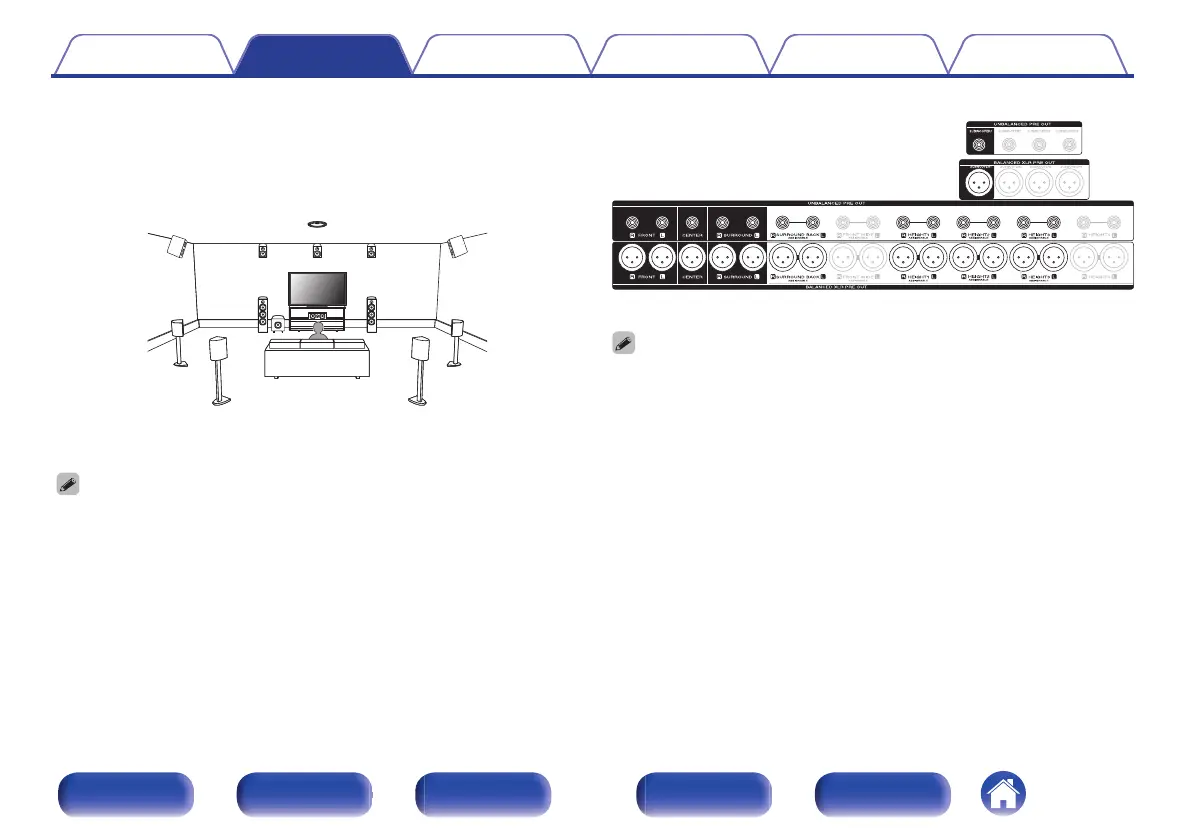

Example layout for Auro-3D 13.1 channel
system
This speaker configuration is optimized for Auro-3D playback.
FL FR
SW
SRSL
C
FHL FHR
CH
SHL SHR
TS
SBRSBL
For each speaker connection, refer to “Connecting a power
amp” (v p. 43).
0
Set “Floor” to “5ch & SB” and “Height Sp” to “6ch” in the menu when connecting in
this configuration. (v p. 216)
Next, set “Height” - “Front Layout” to “Front Height & Center Height” and “Middle
Layout” to “Surround Height & Top Surround”. (v p. 221)
FR FL C SR SL
FHR
SW1
FHLSBR SBL SHR SHL
CH TS
0
To use two sets of height speakers with a center height and top surround
speakers, connect the center height and top surround speakers to the HEIGHT 3
connector.
0
For the best Auro-3D experience Surround Height speakers are recommended,
however you may substitute Rear Height speakers from a Dolby Atmos speaker
setup in place of Surround Height speakers.
