Connecting 15.1-channel speakers
o

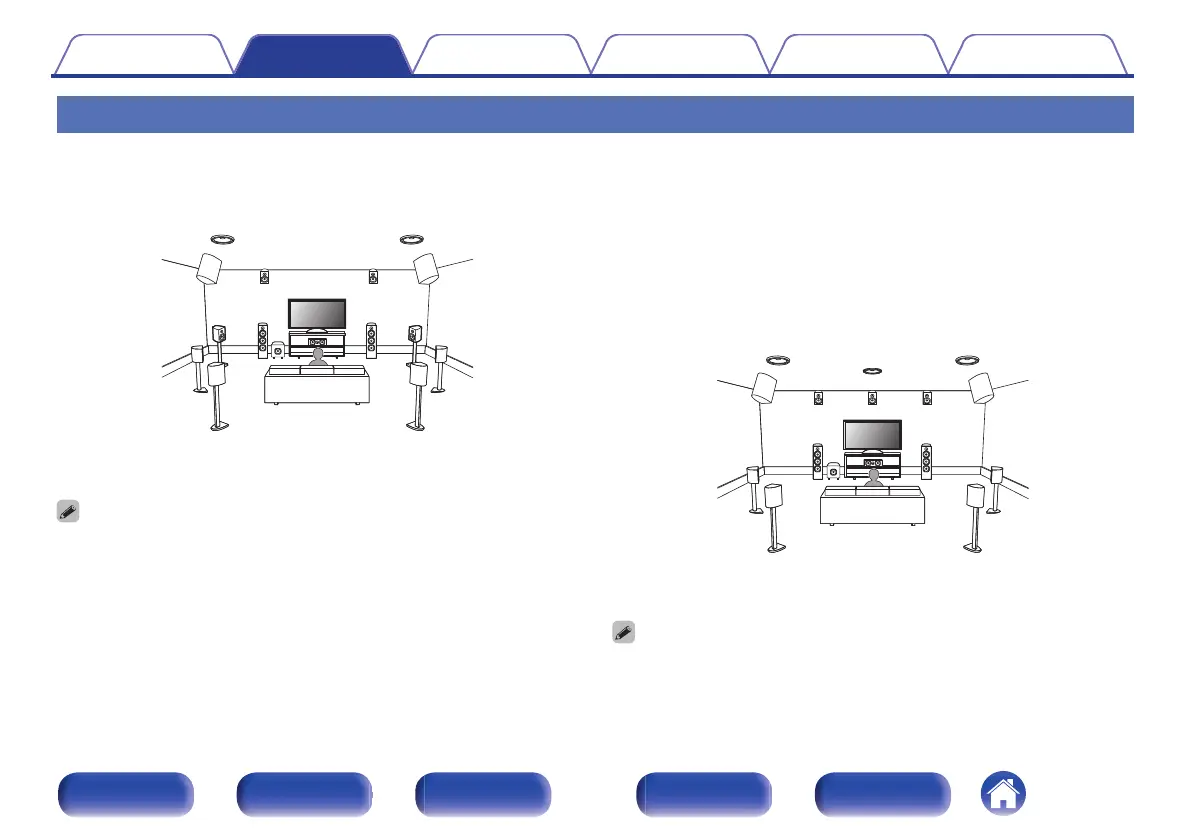

Example layout when using surround back,
Front Wide and three set of height speakers
C
FL FR
SW
RSLS
TML TMR
FHL FHR
RHL RHR
FWL FWR
SBL
SBR
For each speaker connection, refer to “Connecting a power
amp” (v p. 43).
0
Set “Floor” to “5ch & SB & FW” and “Height Sp” (or “Dolby Sp”) to “6ch” in the
menu when connecting in this configuration. (v p. 216)
0
You can change the Front Height Speakers, Top Middle speakers and Rear Height
Speakers to any Height/Ceiling/Dolby Atmos Enabled speakers in the “Amp
Assign” - “Layout” setting. (v p. 221)
o
Example layout when using surround back
and eight height speakers
This system can connect with up to 15.1-channel speakers and
simultaneously play up to 13.1-channels for Dolby Atmos and Auro-3D
playback.
The top middle speakers, top surround speaker, and center height
speaker are switched and played according to the audio format you
are playing.
TML TMR
C
SW
RSLS
RHL RHR
SBL
SBR
FHL FHR
FL FR
CH
TS
For each speaker connection, refer to “Connecting a power
amp” (v p. 43).
0
Set “Floor” to “5ch & SB” and “Height Sp” to “8ch” in the menu when connecting in
this configuration. (v p. 216)
