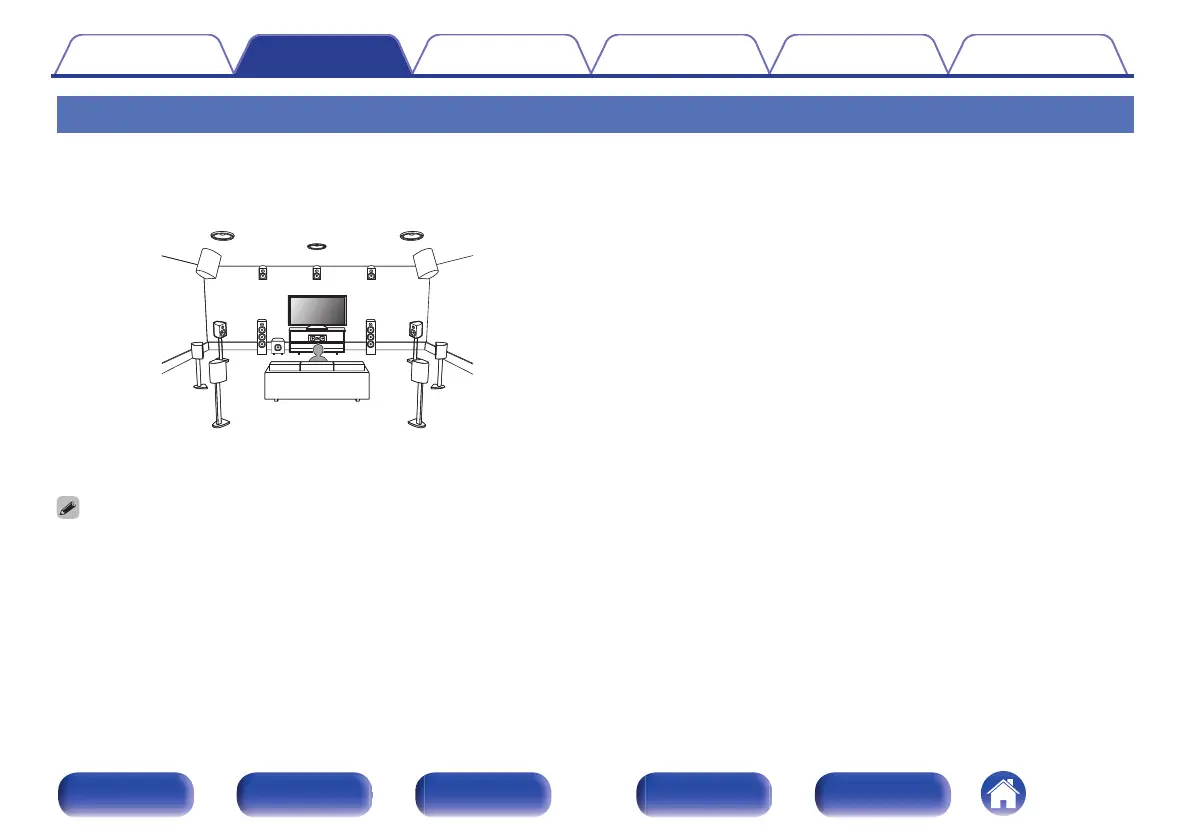

Connecting 17.1-channel speakers
This system can connect with up to 17.1-channel speakers and simultaneously play up to 15.1-channels for Dolby Atmos and play up to 13.1-channel for
Auro-3D playback.
The top middle speakers, top surround speaker, and center height speaker are switched and played according to the audio format you are playing.
FWL FWR
TML TMR
C
SW
RSLS
RHL RHR
SBL
SBR
FHL FHR
FL FR
CH
TS
For each speaker connection, refer to “Connecting a power
amp” (v p. 43).
0
Set “Floor” to “5ch & SB & FW” and “Height Sp” to “8ch” in the menu when
connecting in this configuration. (v p. 216)
0
You can change the Front Height Speakers, Top Middle speakers and Rear Height
Speakers to any Height/Ceiling/Dolby Atmos Enabled speakers in the “Amp
Assign” - “Layout” setting. (v p. 223)
