Connecting 13.1-channel speakers : Bi-amp connection of front speakers
This system plays back 13.1-channels. You can use the bi-amp
connection for front speakers. Bi-amp connection is a method to connect
separate amplifiers to the tweeter terminal and woofer terminal of a
speaker that supports bi-amplification. This connection enables back EMF
(power returned without being output) from the woofer to flow into the
tweeter without affecting the sound quality, producing a higher sound
quality.
C
SW
RSLS
FHL FHR
RHL RHR
SBL
SBR
FL
(Bi-Amp) (Bi-Amp)
FR
TML TMR
NOTE
0
When making bi-amp connections, be sure to remove the short-circuiting plate or
wire between the speaker’s woofer and tweeter terminals.

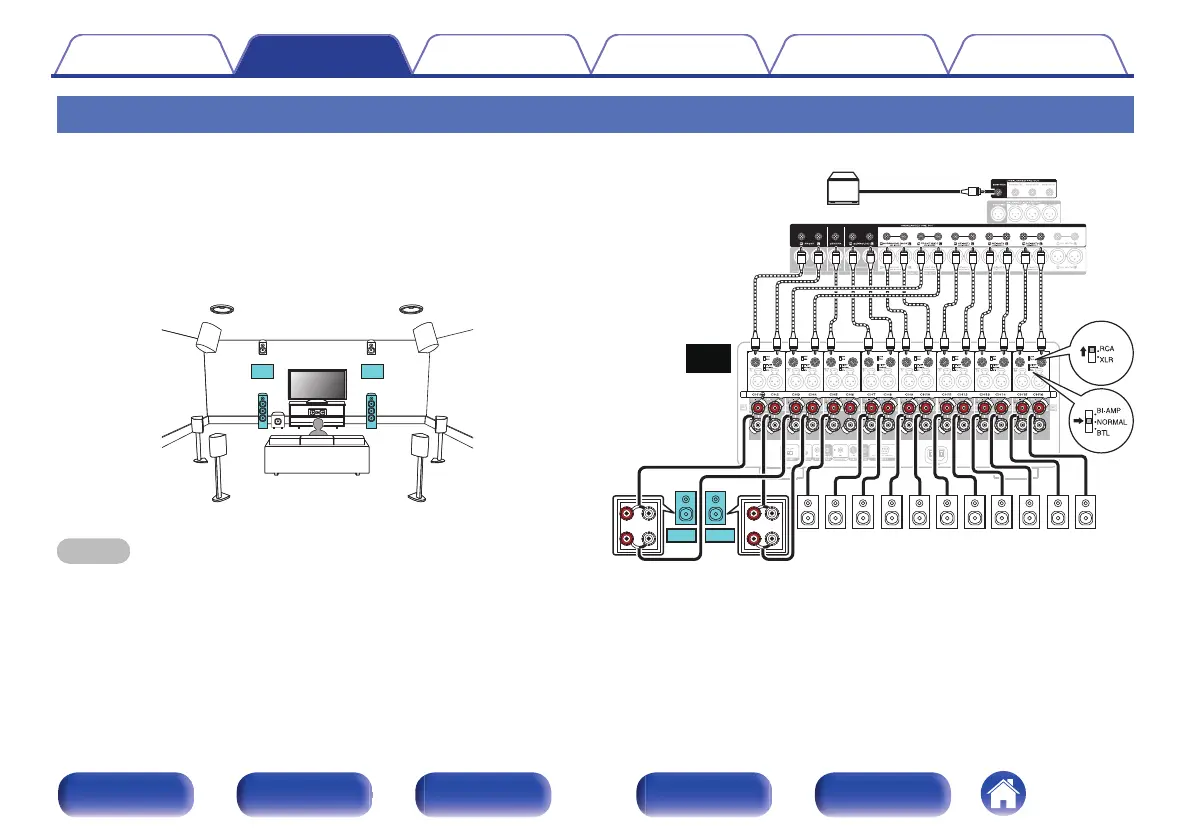

GExampleH UNBALANCED RCA connector connection
wqwq
(R) (L)
FLFR
SR SLC RHR RHL TMR TMLFHR FHL
SW1
SBLSBR
Marantz
AMP 10
z
2
z
2
z
2
z
2
z
2
z
2
z
1
z
1
z1
The PRE OUT connectors for a bi-amp connection vary depending on the
MAIN ZONE layout. Refer to “Amp Assign” - “Bi-Amp”. (v p. 224)
z2
The height speakers, ceiling speakers and Dolby Atmos Enabled speakers
can be connected to the HEIGHT1, HEIGHT2 and HEIGHT3 RCA connectors
or HEIGHT1, HEIGHT2 and HEIGHT3 XLR connectors. Set the speaker to be
connected from “Height” in the menu. (v p. 218)
