Marantz DV3100 - Enjoying Dolby Pro Logic Surround Sound

CONNECTIONS PAGE 13
Connecting to Optional Audio System
Enjoying Dolby Pro Logic Surround Sound
COAXIAL
OUT
DIGITAL
OUT
S-VIDEO
OUT
AUDIO
OUT
VIDEO
L
R
To AUDIO OUTTo VIDEO OUT
Video cable

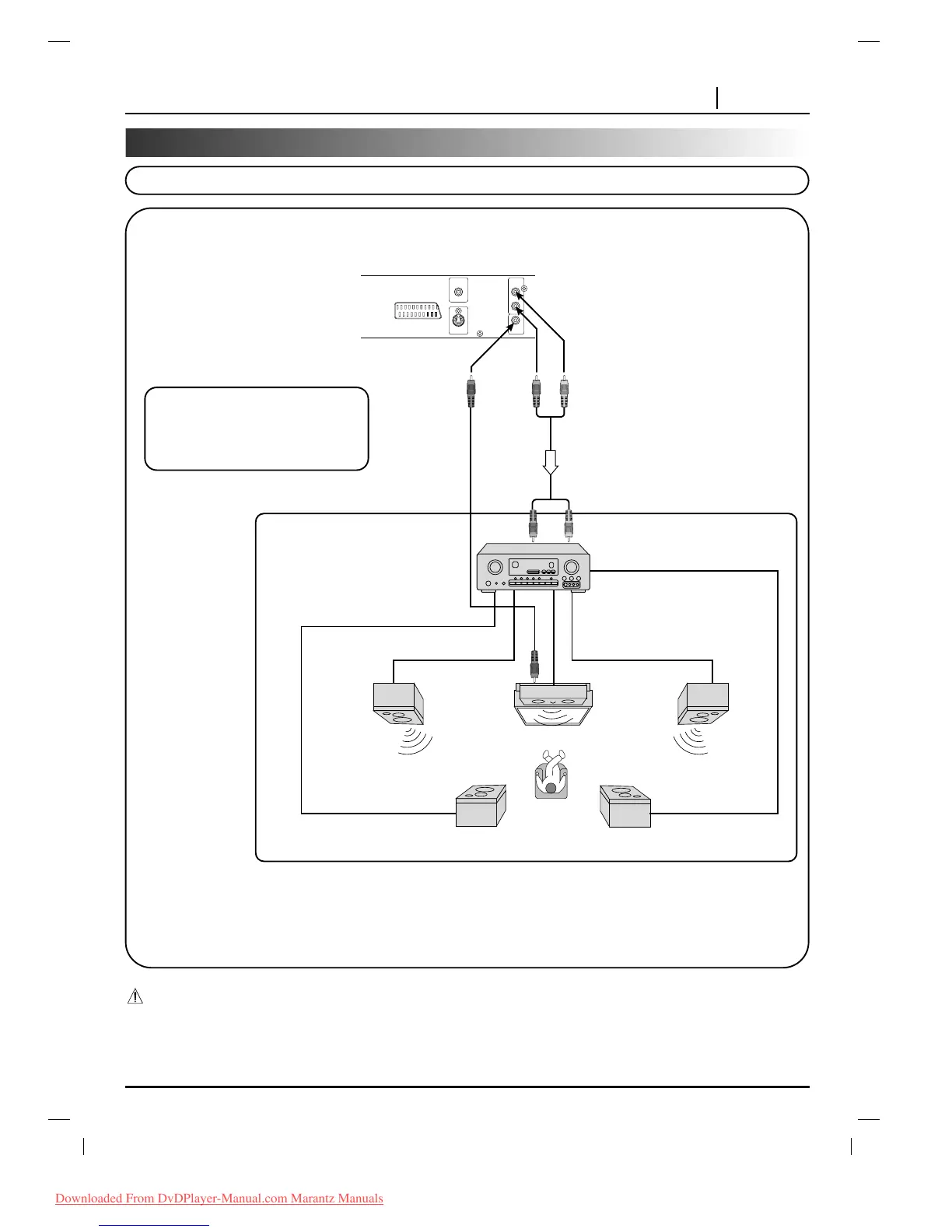

Connection example
Receiver equipped
with Dolby Pro
Logic Surround
Front
speaker
(left)
Front
speaker
(right)
To video input
Rear speaker
(left)
Rear speaker
(right)
TV
Center speaker
To audio input
Audio cable
A/V EUROCONNECTOR
TV
Warning
Do not set the Digital Audio Output of this DVD player to “Dolby Digital” unless you are connecting the DIGITAL AUDIO jack of this
DVD player to an AV decoder that has the Dolby Digital (AC-3) decoding function. High volume sound may damage your hearing as
well as the speakers. (Refer to “Selecting Digital Audio Output” on page 35.)
Dolby Pro Logic Surround
You can still enjoy the excitement of Surround Sound even if your A/V receiver does not offer Dolby Digital (AC-3) decod-
ing. If your A/V receiver has a Dolby Pro Logic decoder. Refer to the following connection diagram.
Connect one or two rear speakers.
The output sound from the rear speakers
will be monaural even if you connect two
rear speakers.
● With a receiver equipped with Dolby Digital (AC-3)
Connect the equipment the same way as described in “Enjoying Dolby Digital (AC-3) Sound” on the previous page. Refer
to that receiver’s owner’s manual and set the receiver so you can enjoy Dolby Pro Logic Surround sound.
