Marantz HD-CD1 - Rear Panel Connections; Rear Panel Ports and Switches

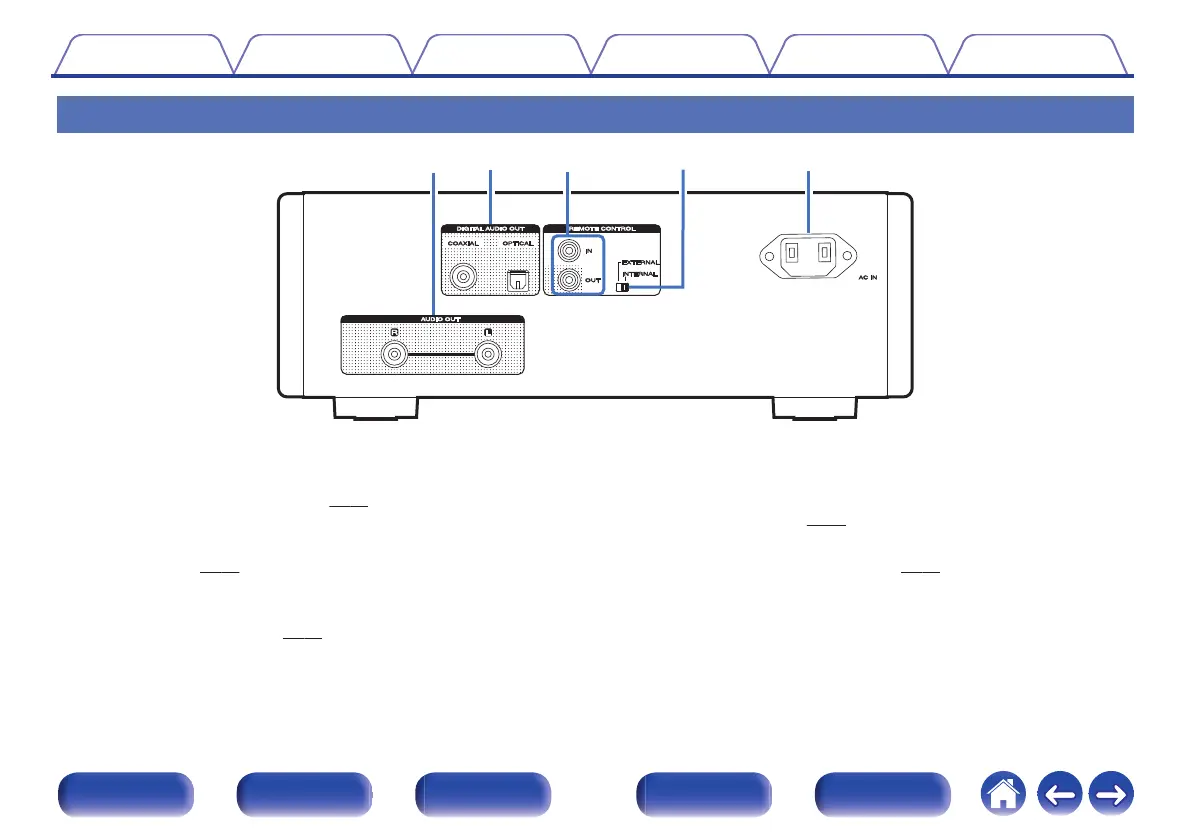

Rear panel
.
q
we
tr
A
AUDIO OUT connectors
Used to connect devices equipped with analog audio inputs connectors
or an external power amplifier. (v p. 17)
B
DIGITAL AUDIO OUT connectors (COAXIAL/OPTICAL)
Used to connect an Amplifier or D/A converter that has a digital input
connectors. (v p. 16)
C
REMOTE CONTROL jacks
Used to connect to a Marantz amplifier that is compatible with the
remote control function. (v p. 18)
D
EXTERNAL/INTERNAL switch
Turn this switch to “EXTERNAL” to operate the unit by pointing the
remote control at the amplifier connected to this unit using the remote
control connection. (v p. 18)
E
AC inlet (AC IN)
Used to connect the power cord. (v
p. 20)
