Marantz MM7025 User Manual

4
ENGLISH

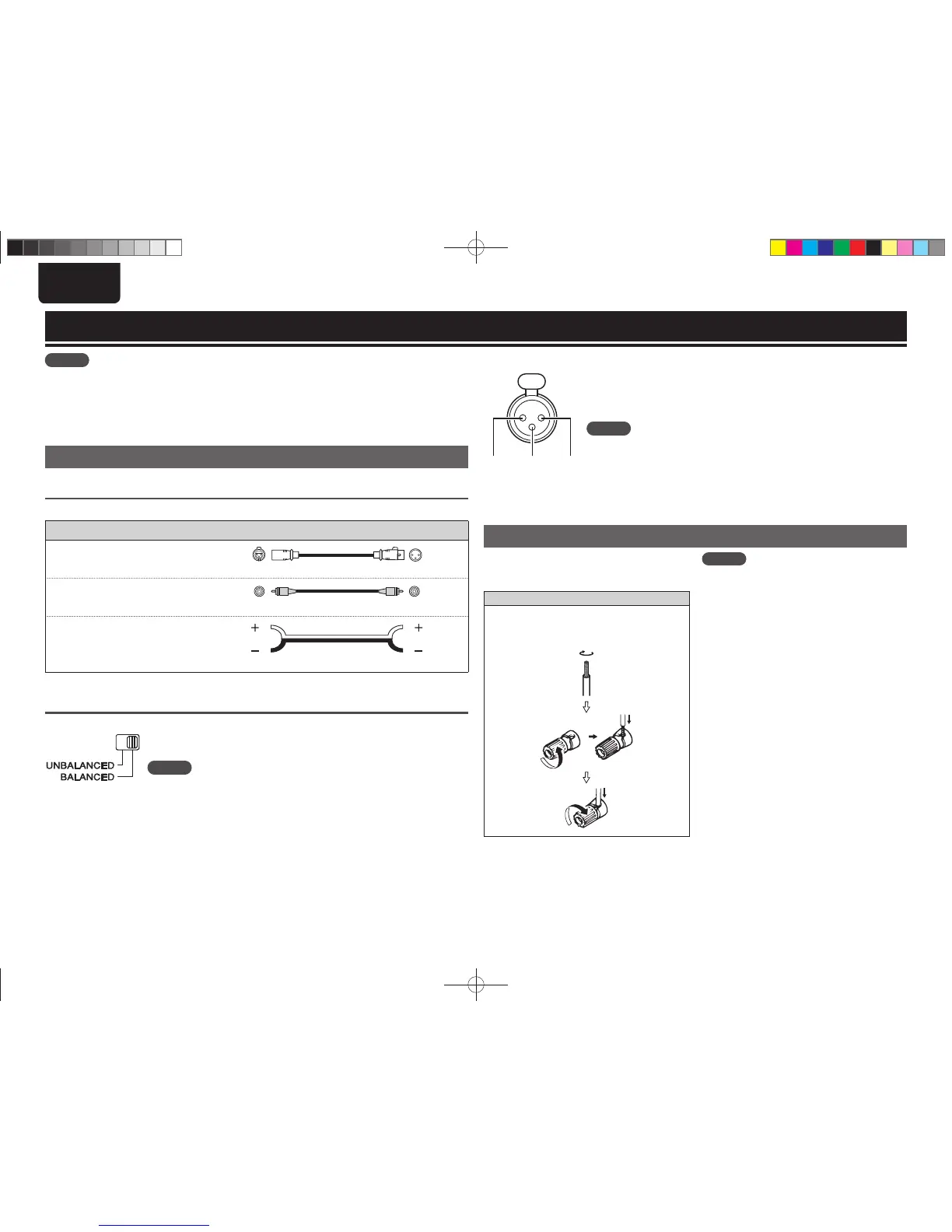

Connections
NOTE
• Do not plug in the power cord until all connections have been completed.
• When making connections, also refer to the operating instructions of the other components being
connected.
• Check the channel, and then connect correctly.
• Do not bundle power cords together with connection cables. Doing so can result in noise.
Preparations
Cables used for connections
Prepare the correct cables for use with the additional devices.
Audio cables
Balanced connections (XLR)

Balanced cable
Unbalanced connections (RCA)
Audio cable
Speaker connections
Speaker cable
Sets the connected input connectors
Switches the input settings used for input to each channel.
BALANCED: Set when connected to the XLR connector.
UNBALANCED: Set when connected to the RCA connector.
NOTE
If audio is input into input connectors that are not set using the input switching
switch, the audio will not be output from the speakers.
n XLR connector PIN arrangement
ew q
q GND (Ground)
w HOT (Hot)
e COLD (Cold)
The PIN arrangement in this device uses the European method.
In the USA method,
w
is COLD, and
e
is HOT.
When connecting a device that utilizes the USA type of PIN arrangement, replace
the
w
and
e
plugs on one side of the balanced cable.
NOTE
Do not short the HOT and GND or COLD and GND for use.
Speaker connections
Carefully check the channels of the speakers to be
connected to this unit (L/R/SL/SR/C) and + (red), –
(black), and connect like poles together.
Connecting the speaker cables
Peel off about 10 mm of sheathing from the tip
of the speaker cable, then either twist the core
wire tightly or terminate it.
NOTE
• Connect so that the speaker cable core wires
do not protrude from the speaker terminal.
The protection circuit may be activated if the
core wires touch the rear panel or if the + and –
sides touch each other (vpage10 “Protection
circuit”).
• Never touch the speaker terminals while the
power supply is connected. Doing so could
result in electric shock.
• Use speakers with impedance of 6 ohms or
more.
MM70557025NENG5th0729.indd4MM70557025NENG5th0729.indd4 2010/07/2921:49:372010/07/2921:49:37

Marantz MM7025 Specifications

General

Output level	2.4 mV
Damping factor	100
Amplifier class	-
Frequency range	20 - 20000 Hz
Output impedance	30000 Ω
Input sensitivity	1.2 mV
Audio output channels	2.0 channels
Peak power per channel	170 W
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.03 %
RMS power output per channel (8 Ohm)	140 W
AC (power) in	Yes
Audio (L/R) in	2
Line inputs (RCA)	1
Speakers connectivity type	XLR
Material	Metal
Cooling type	Passive
Product color	Black
Connectivity technology	Wired
Power consumption (standby)	0.4 W
Power consumption (typical)	220 W

Weight and Dimensions

Depth	350 mm
Width	440 mm
Height	126 mm
Weight	10500 g
