Marantz MM8003 Service Manual

11
Connect the mains cord into the unit.3.
Press the 4. POWER ON/OFF button for turn on the unit.
(Except/U1B)
Then the STANDBY LED do not turn on a light.

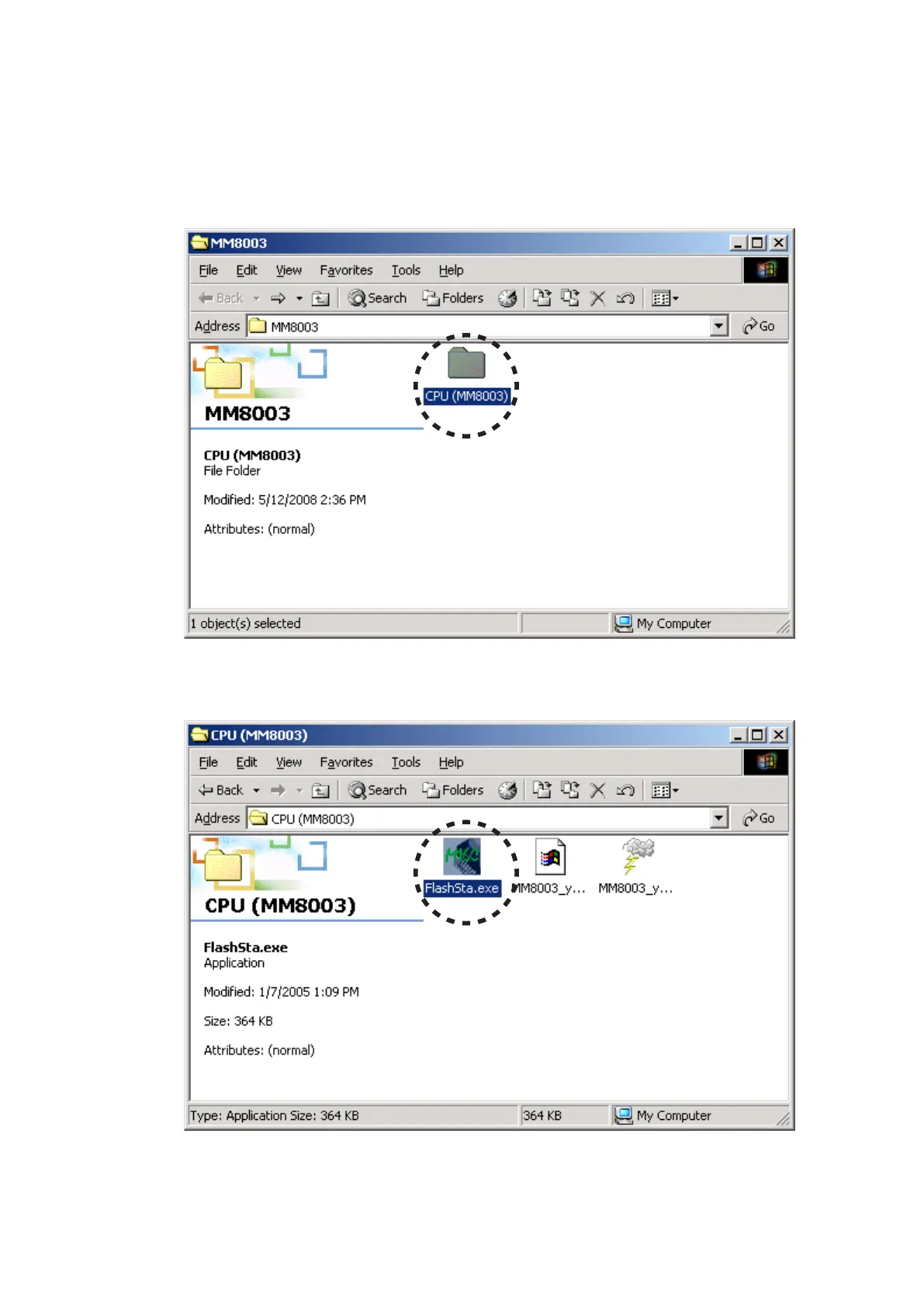

Put the CPU (MM8003) folder into anywhere on your 5.
PC’s hard disc.
Double click the CPU (MM8003) folder.6.
DoubleclicktheFlashSta.exe.AndlaunchtheM16C7.
Flash Start.
本機に電源コードを接続します。3.
本機の4. POWER ON/OFFボタンを押して電源を入れます。
このときSTANDBY LEDは点灯しません。
CPU (MM8003)フォルダをPCの任意のフォルダにコピー5.
します。
CPU (MM8003)フォルダをダブルクリックします。6.
FlashSta.exe
をダブルクリックし、M16C Flash Startを起7.
動します。

Marantz MM8003 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	8 - 100000 Hz
Input sensitivity	2400 mV
Audio output channels	7.1 channels
Peak power per channel	170 W
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.03 %
RMS power output per channel (8 Ohm)	140 W
AC (power) in	Yes
Speakon ports quantity	8
Purpose	Home
Product color	Black
Cables included	AC
Connectivity technology	Wired
Power consumption (standby)	0.4 W
Power consumption (typical)	880 W

Weight and Dimensions

Depth	384 mm
Width	440 mm
Height	184.5 mm
Weight	17900 g
