Marantz MM8003 Service Manual

1
Rated power output
(from 20 Hz - 20 kHz/THD=0.08% two channels driven)
.............................................................8 ohms 140 W/Ch
.............................................................6 ohms 170 W/Ch
Output bandwidth (8-Ω load, 0.09%)
................................................................... 5 Hz – 40 kHz
Frequency Response
................................................... 8 Hz – 100 kHz (± 3 dB)
Damping factor
.................................................................100
Input Sensitivity/Impedance
..........................................1.2 V/ 22 kΩ (UNBALANCED)
................................................ 2.4 V/30 kΩ (BALANCED)
Signal to Noise Ratio (IHF-A)
..................................... 105 dB
Voltage amplifi cation level
........................................... 29 dB
GENERAL
Power Requirement
......................... AC 100 V 50/60 Hz [ /F ]
.........................AC 230 V 50/60 Hz [ /N ]
..............................AC 120 V 60 Hz [ /U ]
Power Consumption
............................................880 W [ /N ]
.........................................800 W [ /F/U ]
Standby power
...............................................................0.4 W
Weight
.......................................................................17.9 kg
ACCESSORIES
Remote control cable
............................................................1
AC power cable
....................................................................1
1. TECHNICAL SPECIFICATIONS
DIMENSIONS
[K version]
BASIC
CONNECTIONS
OPERATION
ADVANCED
CONNECTIONS
TROUBLESHOOTING
OTHERS
NAMES AND
FUNCTION
OTHERS
ENGLISH
14
OTHERS
Rated power output (from 20 Hz to 20 kHz/THD = 0.08 % two
channels driven)
.........................................................140 W / ch 8 1
.........................................................170 W / ch 6 1
Output bandwidth (8-1 load, 0.09%)
...........................................................5 Hz – 40 kHz
Frequency response (1 W, 8 1)
...........................................8 Hz – 100 kHz (± 3 dB)
Damping factor .................................................................. 100
Input sensitivity/impedance
................................1.2 V/ 22 k 1 (UNBALANCED)
...................................... 2.4 V/30 k 1 (BALANCED)
Signal-to-noise ratio (IHF-A) ......................................... 105 dB
Voltage amplifi cation level .............................................. 29 dB
Supply voltage ..................................................AC120V 60 Hz
Power consumption ....................................................... 800 W
Standby power ................................................................ 0.4 W
Weight ......................................................................17.9 kg
Accessories
Power cable ................................................................... 1
Remote control cable ..................................................... 1
Warranty card
USA ........................................................................ 1
Canada .................................................................. 1
Operating instructions (this document) .......................... 1

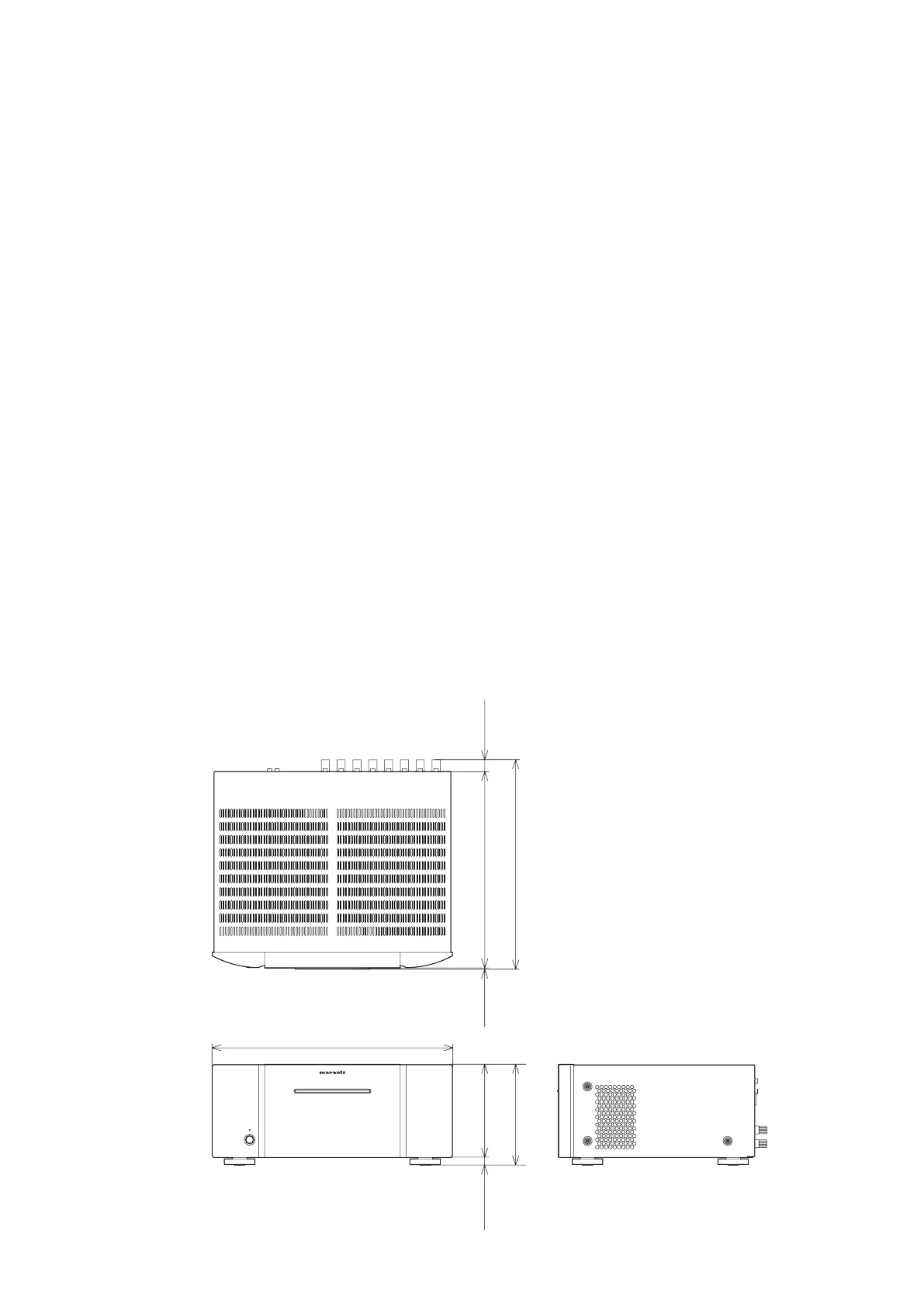

7-5/16 ins.
(184.5 mm)
9/16 ins. (14 mm)
6-3/4 ins.
(170.5 mm)
17-3/8 ins. (440 mm)
1/8 ins. (2 mm)
15-1/8 ins. (384 mm)
7/8 ins. (22 mm)
14-3/16 ins. (360 mm)
OUTSIDE DIMENSIONS
The section describes the care and maintenance
tasks that must be performed to optimize the
operation of your Marantz equipment.
CLEANING OF EQUIPMENT EXTERNAL SURFACES
The exterior fi nish of your unit will last indefi nitely with
proper care and cleaning, Never use scouring pads,
steel wool, scourging powders or harsh chemical
agents (e.g., lye solution), alcohol, thinner, benzine,
insecticide or other volatile substances as these wil
mar the fi nish of the equipment. Likewise, never
use cloths containing chemical substances. If the
equipment get dirty, wipe the external surfaces with
a soft, lint-free cloth.
If the equipment becomes heavily soiled:
• dilute some washing up liquid in water, in a ratio of
one part detergent to six parts water.
• dip a soft, lint free in the solution and wring the it is
damp.
• wipe the equipment with the damp cloth.
• dry the equipment by wiping it with a dry cloth.
REPAIRS
Only the most competent and qualified service
technicians should be allowed to service the
factory-trained warranty station personnel have
the knowledge and special facilities needed for
repair and calibration of this precision equipment.
After the warranty period has expired, repairs will
be performed for a charge if the equipment can be
returned to normal operation.
In the event of diffi culty, refer to your dealer or write
directly to the nearest location to you that is listed on
the Marantz Authorized Service Station list. If writing,
please include the model and serial number of the
equipment together with a full description of what you
think is abnormal about the equipment’s behaviour.
SPECIFICATIONS
MM8003U01ENG.indd14 08.4.282:20:00PM
15
基本连接操作高级连接
问题排解
其他
名称与功能
其他
其他
额定功率输出
(从20 Hz至20 kHz/THD = 0.08 %双声道驱动)
................................................... 140 W / ch 8 Ω
................................................... 170 W / ch 6 Ω
实际最大输出 (6 Ω / JEITA) ....... 220 W / ch 6 Ω
输出带宽 (8 Ω负载，0.09%)
.........................................................5 Hz - 40 kHz
频率响应 (1 W, 8 Ω)
................................... 8 Hz - 100 kHz (±3 dB)
阻尼因数 .........................................................................100
输入敏感度/阻抗
.......................1.2 V/ 22 kΩ (UNBALANCED)
...............................2.4 V/30 kΩ (BALANCED)
信噪比 (IHF-A) ......................................................105 dB
电压放大水平 ............................................................29 dB
供电电压 .................................................. AC220V 50 Hz
电源消耗 ...................................................................880 W
待机功率 .....................................................................0.5 W
重量 ......................................................................17.9 kg
附件
电源线 ...........................................................................1
遥控电缆 ......................................................................1
使用说明书 (本书) .................................................1
184.5 mm
14 mm
170.5 mm
440 mm
2 mm
384 mm
22 mm
360 mm
外部尺寸
请按照本手册中所说明的内容来执行维护操作
以使您的马兰士设备处于最佳状态。
设备表面清理维护
通过正确的保养和清理，您的设备表面涂层会
得以长久维持。请勿使用会损坏设备表面涂层
的擦洗垫、清洁用钢丝绒、清洁粉或强烈化学
药剂 (如碱液)、酒精、稀释剂、汽油、杀虫剂
或其它挥发性物质。同样，也不要使用含有化
学成分的布料。如果设备变脏，请使用柔软的
纯棉布料擦拭表面。
如果设备被严重沾污:
●
将清洁剂与水以1比6的比例进行稀释。
●
将柔软的纯棉布料浸在溶液中，并拧至湿润
状态。
●
用湿润的布料擦拭设备。
●
用干布料擦干设备。
维修
厂商维修站只允许最胜任的专业技术人员提供
维修服务，技术人员必须具备修理及点检本精
密设备的专业知识和特殊设备。设备超过保
修期后，若维修能使设备恢复正常操作则要付
费。如果存在维修困难的情况，请联系您的经
销商或直接写信给马兰士授权服务网点中就近
的服务中心。写信时，请注明产品型号和序列
号以及设备操作异常的详细现象描述。
规格
MM8003Kchisim.indd15 08.7.149:48:01AM

Marantz MM8003 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	8 - 100000 Hz
Input sensitivity	2400 mV
Audio output channels	7.1 channels
Peak power per channel	170 W
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.03 %
RMS power output per channel (8 Ohm)	140 W
AC (power) in	Yes
Speakon ports quantity	8
Purpose	Home
Product color	Black
Cables included	AC
Connectivity technology	Wired
Power consumption (standby)	0.4 W
Power consumption (typical)	880 W

Weight and Dimensions

Depth	384 mm
Width	440 mm
Height	184.5 mm
Weight	17900 g
