Marantz MM8077 Service Manual

10
About the photos used for descriptions in the DISASSEMBLY" section.
• The direction from which the photographs used herein were photographed is indicated at "Direction of photograph: ***"
at the left of the respective photographs.
• Refer to the table below for a description of the direction in which the photos were taken.
• Photographs for which no direction is indicated were taken from above the product.
1. FRONT PANEL ASSY
2. CPU PCB ASS'Y
3. TRANS
4. STBY.PCB ASS'Y-2

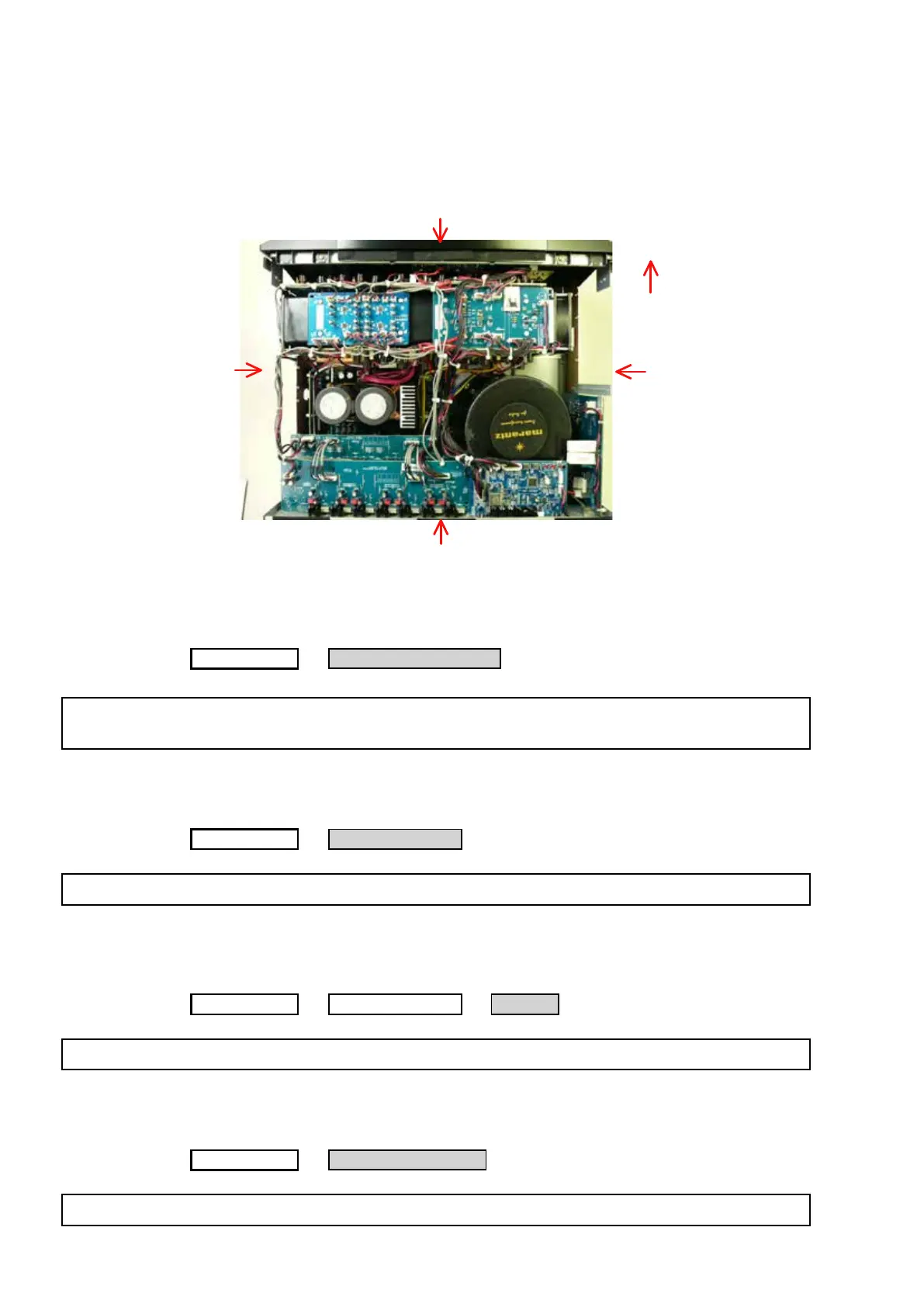

The viewpoint of each photograph
(Photografy direction)
［View from above］
Front side
Direction of photograph: B
Direction of photograph: D
Direction of photograph: C
Direction of photograph: A
TOP COVER
FRONT PANEL ASSY
→
Proceeding :
Please refer to "EXPLODED VIEW" for the disassembly method of each PCB included in FRONT PANEL ASSY and
FRONT PANEL ASSY.
TOP COVER
CPU PCB ASS'Y
→
Proceeding :
Please refer to "EXPLODED VIEW" for the disassembly method of CPU PCB ASS'Y.
TOP COVER
CPU PCB ASS'Y
→
TRANS
→
Proceeding :
Please refer to "EXPLODED VIEW" for the disassembly method of TRANS.
TOP COVER
STBY.PCB ASS'Y-2
→
Proceeding :
Please refer to "EXPLODED VIEW" for the disassembly method of STBY.PCB ASS'Y-2.

Marantz MM8077 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	10 - 100000 Hz
Output impedance	8 Ω
Input sensitivity	1200 mV
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.03 %
RMS power output per channel (8 Ohm)	150 W
Pre out port	No
Line inputs (RCA)	1
Speakers connectivity type	RCA
Purpose	Home
Material	Aluminium, Glass, Metal
Product color	Black
Channels quantity	7 channels
Connectivity technology	Wired
Power consumption (standby)	0.4 W
Power consumption (typical)	880 W

Weight and Dimensions

Depth	384 mm
Width	440 mm
Height	185 mm
Weight	18000 g
