Marantz MM8077 Service Manual

8
TECHNICAL SPECIFICATIONS

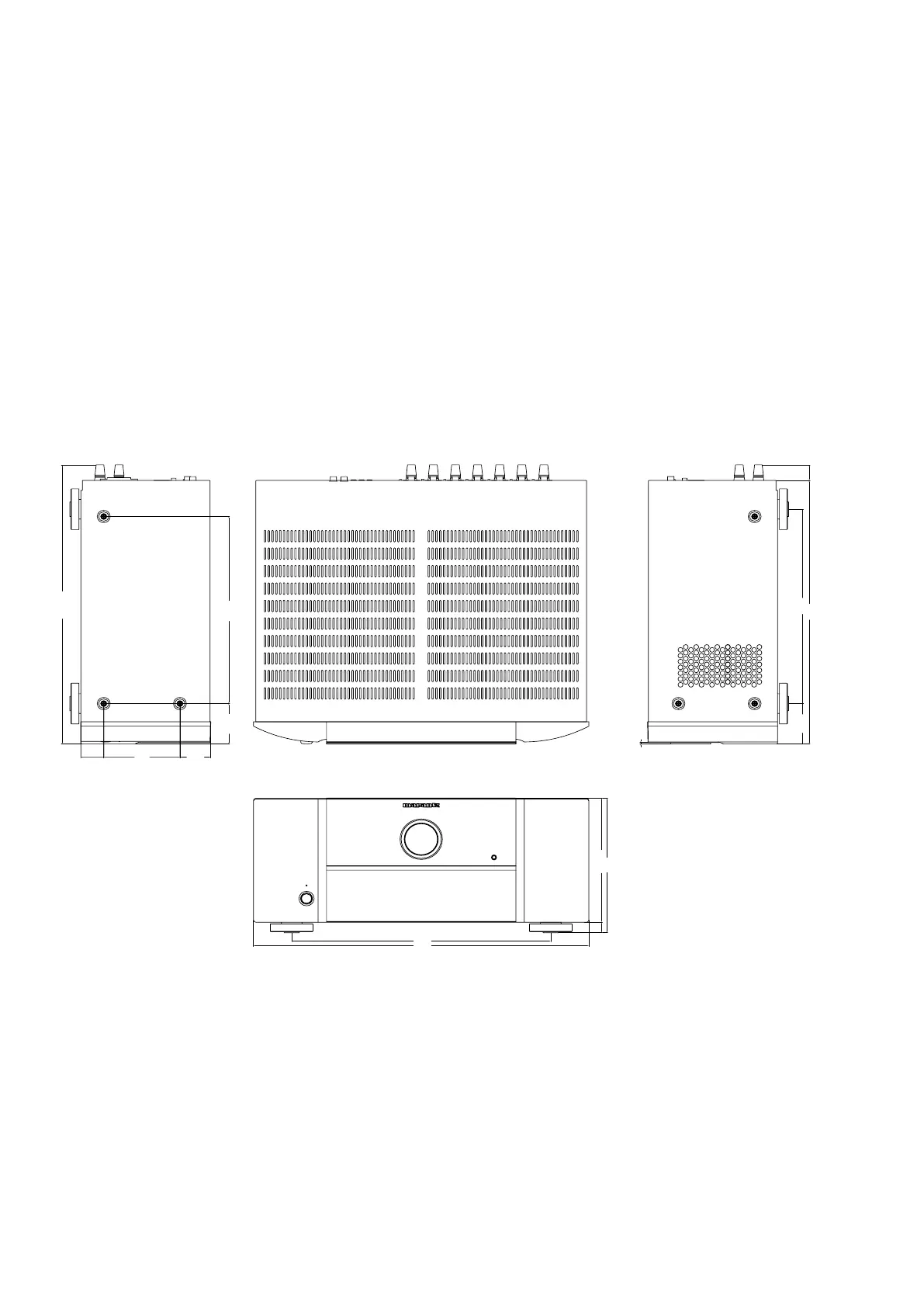

DIMENSION
383.5
25755.5
40.710029.8
340
440
14.5
185 170.5
21.5362
26755.5
2
n MM8077
Rated power output
(from 20 Hz to 20 kHz/THD = 0.08 %,
two channels driven):
150 W/ch, 8 Ω
180 W/ch, 6 Ω
Maximum effective output power
(from 1 kHz, 6 Ω, 10% two channels driven):
210 W/ch, 6 Ω
Output connectors: 6 – 8 Ω
Frequency response (1 W, 8 Ω): 8 Hz – 100 kHz (±3 dB)
Damping factor: 100
Input sensitivity/impedance: 1.2 V / 22 kΩ (UNBALANCED)
2.4 V / 30 kΩ (BALANCED)
Signal-to-noise ratio (IHF-A): 105 dB
Voltage amplifi cation level: 29 dB
Supply voltage (for U1B): AC 120 V, 60 Hz
Supply voltage (for N1B): AC 230 V, 50 Hz
Power consumption: 880 W
Standby power: 0.2 W
Maximum external dimensions: 440 (W) x 185 (H) x 384 (D) mm
Weight: 18.0 kg

Marantz MM8077 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	10 - 100000 Hz
Output impedance	8 Ω
Input sensitivity	1200 mV
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.03 %
RMS power output per channel (8 Ohm)	150 W
Pre out port	No
Line inputs (RCA)	1
Speakers connectivity type	RCA
Purpose	Home
Material	Aluminium, Glass, Metal
Product color	Black
Channels quantity	7 channels
Connectivity technology	Wired
Power consumption (standby)	0.4 W
Power consumption (typical)	880 W

Weight and Dimensions

Depth	384 mm
Width	440 mm
Height	185 mm
Weight	18000 g
