Marantz MM8077 Service Manual

5
Magnify schematic / printed wiring board
diagrams - 2
(Pan & Zoom function)

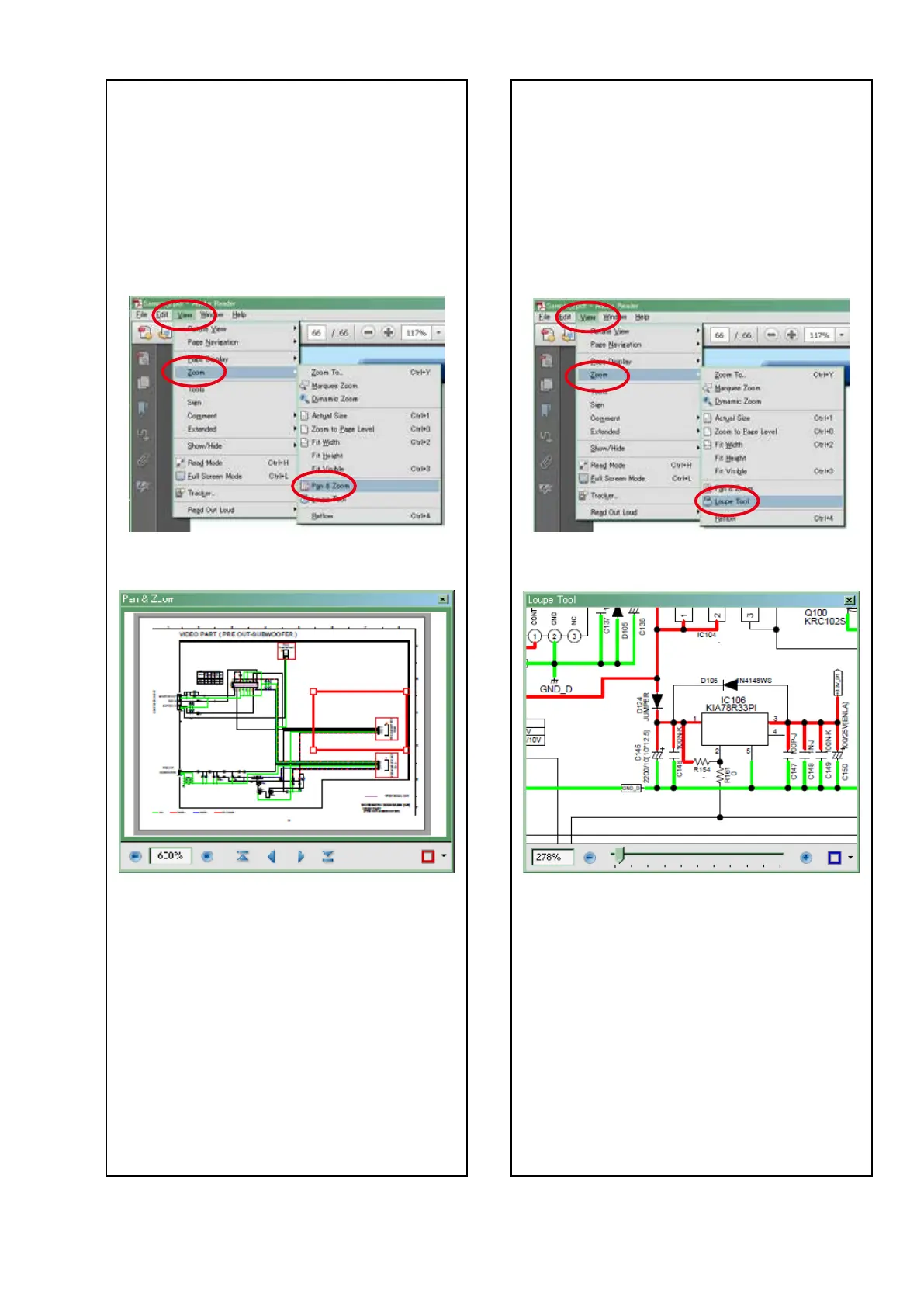

The Pan & Zoom function lets you see which part of a
magnied diagram is being shown in a separate window.
[Example using Adobe Reader X]
On the "View" menu, point to "Zoom", and then click
"Pan & Zoom".
• The Pan & Zoom window appears on the screen.
[Example using Adobe Reader 9]
On the "Tools" menu, point to "Select & Zoom", and
then click "Pan & Zoom Window".
Magnify schematic / printed wiring board
diagrams - 3
(Loupe Tool function)
The Loupe Tool function lets you magnify a specific
part of a diagram in a separate window.
[Example using Adobe Reader X]
On the "View" menu, point to "Zoom", and then click
"Loupe Tool".
• The Loupe Tool window appears on the screen.
[Example using Adobe Reader 9]
On the "Tools" menu, point to "Select & Zoom", and
then click "Loupe Tool Window".

Marantz MM8077 Specifications

General

Damping factor	100
Amplifier class	-
Frequency range	10 - 100000 Hz
Output impedance	8 Ω
Input sensitivity	1200 mV
Audio output channels	- channels
Peak power per channel	- W
Signal-to-Noise Ratio (SNR)	105 dB
Total Harmonic Distortion (THD)	0.03 %
RMS power output per channel (8 Ohm)	150 W
Pre out port	No
Line inputs (RCA)	1
Speakers connectivity type	RCA
Purpose	Home
Material	Aluminium, Glass, Metal
Product color	Black
Channels quantity	7 channels
Connectivity technology	Wired
Power consumption (standby)	0.4 W
Power consumption (typical)	880 W

Weight and Dimensions

Depth	384 mm
Width	440 mm
Height	185 mm
Weight	18000 g
