(5) Lift up the bottom case, remove the put the one with turning
to front side (Refer to fig.8).
Remark for reassemble
When you fit the bottom case, remove the lid of the bottom
case (Refer to fig.9) and confirm the arrangement of lead
lines for transformer.(Refer to fig.10).
Fig.9 Removing the lid of the bottom case
Fig.10 Arrangement of lead lines
2-3

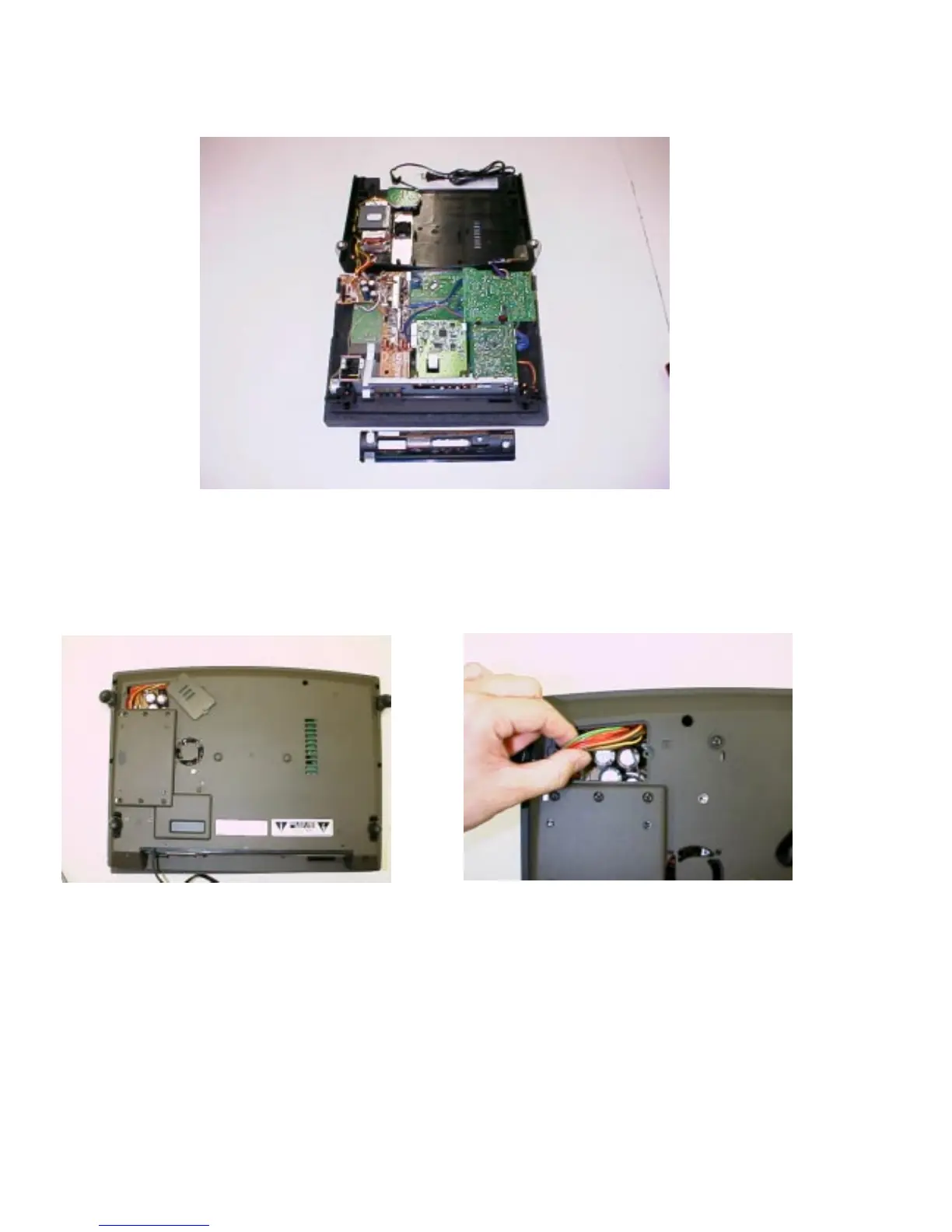

Fig.8 Taking the bottom case apart
