2. Take the top panel (001D) apart
(1) Turn MR2020 upside down by the jig. (Refer to fig.1-3)
Take care that the top cover will not damaged, especially
the 4 levers. If you don't have the jig, you prepare to put
some magazine or telephone guide under the MR2020.
(The height is over 3cm books)

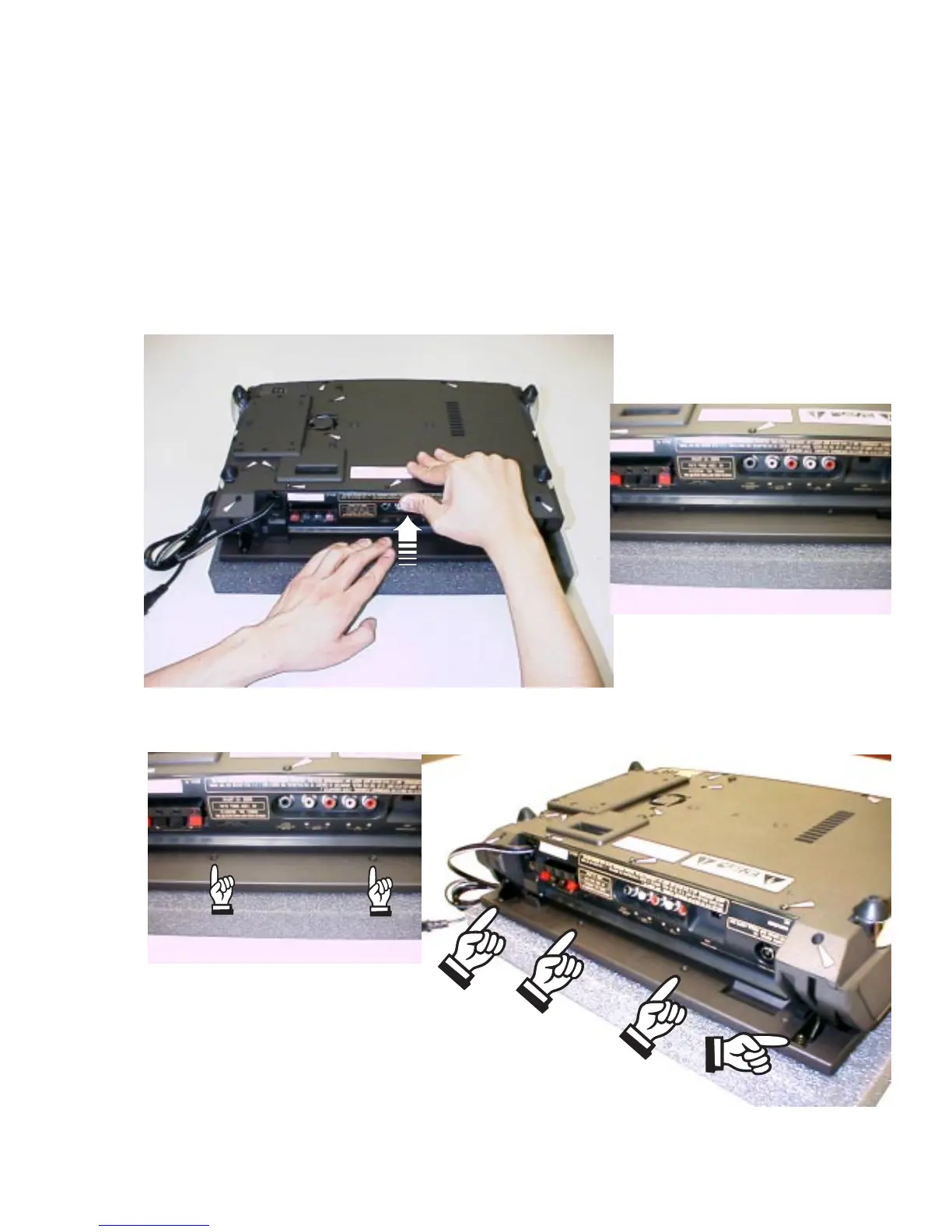

(2) Push the rear panel while keeping hold the top cover (see
fig.11 below). The top cover will move 5mm. (fig.12-13)
Now, 4 screws on the top cover will become accessible.
(fig.14) Take out these screws. (M3 type screw)
Fig.11 Pushing the rear panel
Fig.13 Pushed the rear panel
Fig.12 Before pushing the rear panel
Fig.14 Positions of 4 screws
2-4
