Marantz MR230 - Lid (Top Cover) Parts List

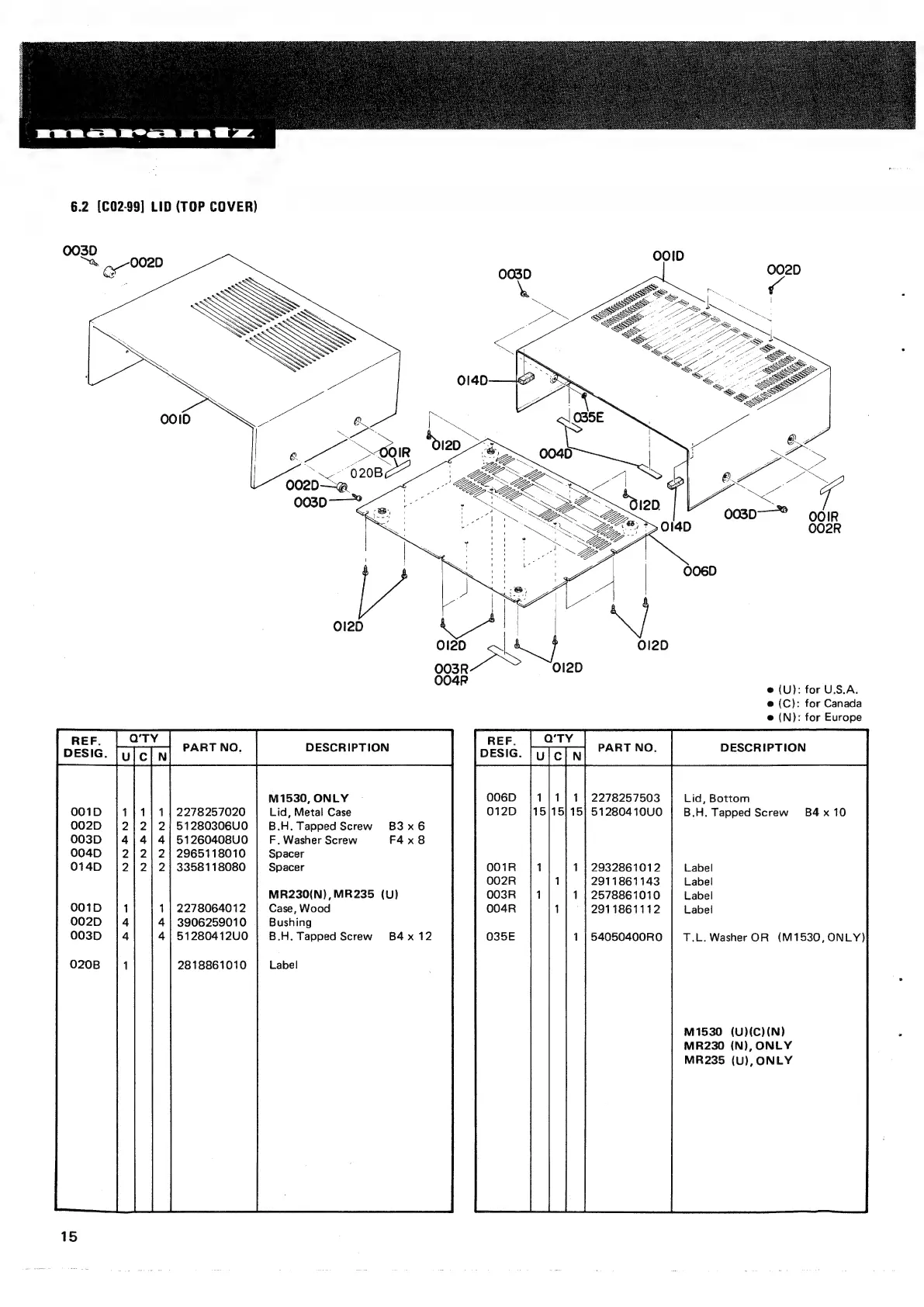

6.2 [C02-99] LID (TOP COVER)
003D
15
2278257020
51280306U0
51260408U0
2965118010
3358118080
2278064012
3906259010
512804 12U0
2818861010
012D
M1530, ONLY
Lid, Metal Case
B.H. Tapped Screw B3x6
F. Washer Screw F4x8
Spacer
Spacer
MR230(N),MR235 (U)
Case, Wood
Bushing
B.H. Tapped Screw B4x 12
Label
2278257503
512804 10U0
2932861012
2911861143
2578861010
2911861112
54050400R0
e@ (U): for U.S.A.
e (C): for Canada
e (N): for Europe
Lid, Bottom
B.H. Tapped Screw B4~x 10
Label
Label
Label
Label
T.L. Washer OR (M1530, ONLY)
M1530 (U)(C)(N)
MR230 (N), ONLY
MR235 (U), ONLY
