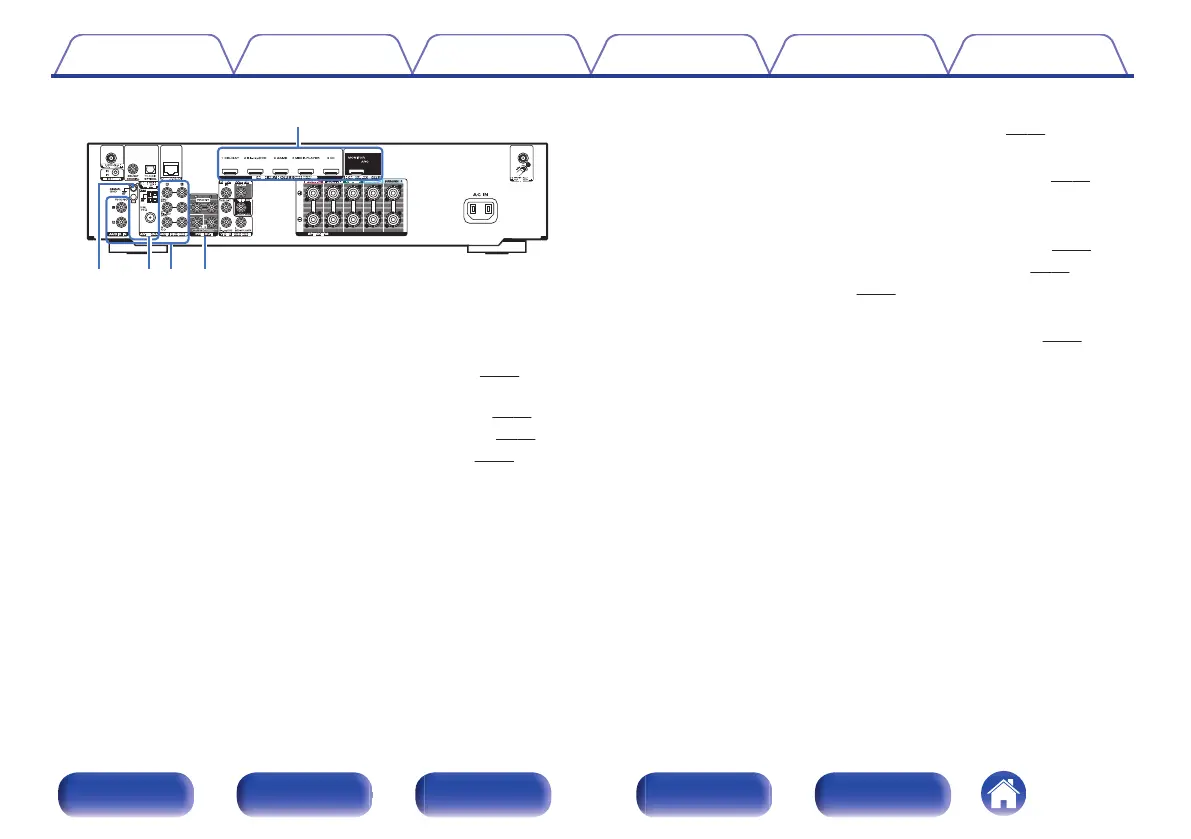

HDMI connectors
Used to connect devices equipped with HDMI connectors.
0
“Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel)” (v
p. 35)
0
“Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel)” (v p. 36)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v
p. 39)
0
“Connecting a DVD player or Blu-ray Disc player” (v
p. 40)
G
SIGNAL GND terminal
Used to connect a ground wire for the turntable. (v
p. 42)
H
FM/AM antenna terminals (ANTENNA)
Used to connect FM antennas and AM loop antennas. (v p. 44)
I
Analog audio connectors (AUDIO)
Used to connect devices equipped with analog audio connectors.
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v
p. 39)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 40)
0
“Connecting a turntable” (v p. 42)
J
PRE OUT connectors
Used to connect a subwoofer with a built-in amplifier. (v
p. 30)
