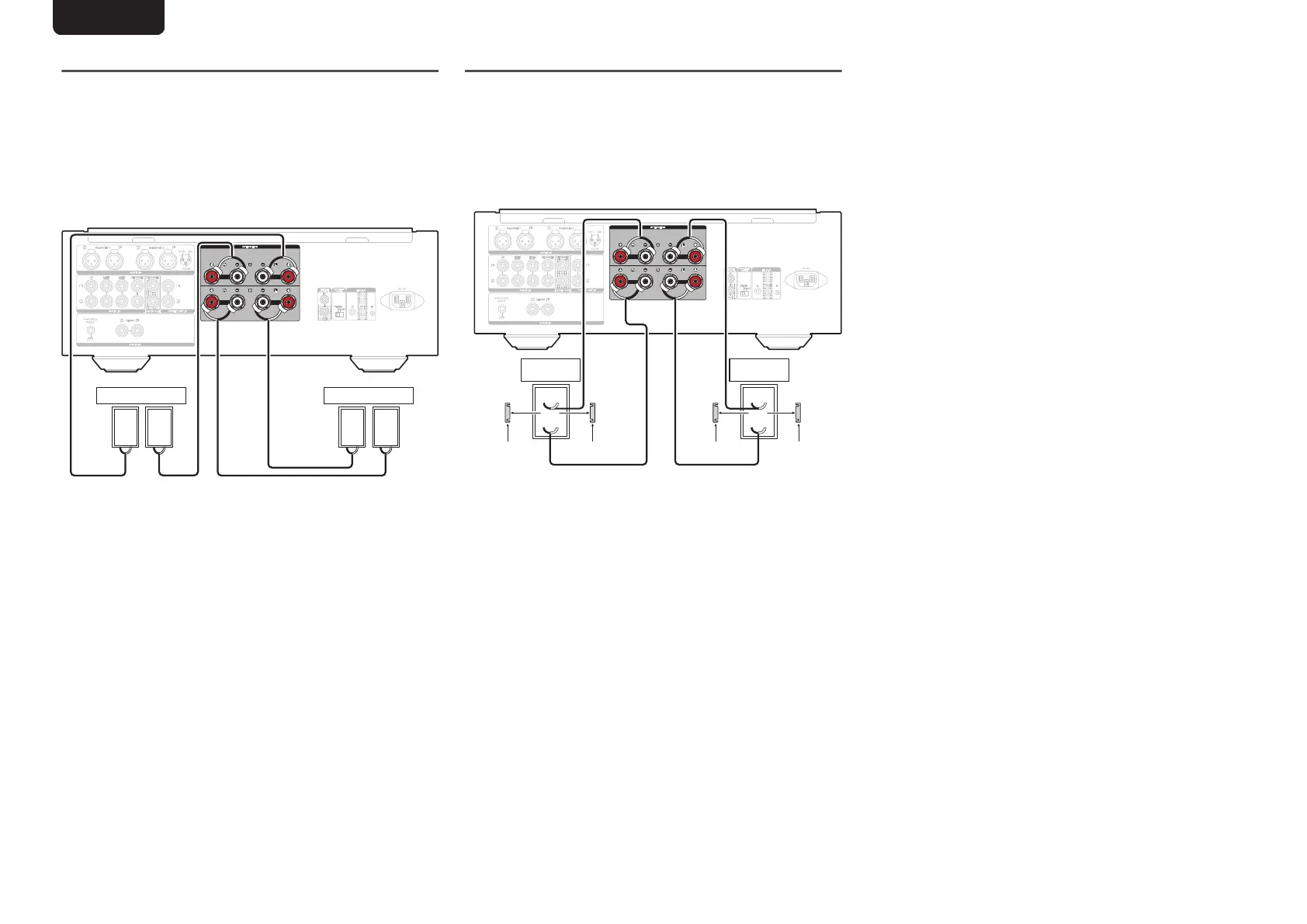

Speaker connection
This unit is equipped with two sets of speaker terminals
(SPEAKER A and SPEAKER B). One set of speakers can be
connected to each set of terminals, and a total of two sets of
speakers can be connected.
The same signal is output from the SPEAKERS A and
SPEAKERS B terminals.
When only one set of speakers is to be connected, use either
the SPEAKERS A or SPEAKERS B terminals.
.
wqwq
(R) (L)
wqwq
(R) (L)
SPEAKERS A
SPEAKERS B
Bi-wiring connection
This connection limits the effects of signal interference
between the high range speakers (tweeters) and low range
speakers (woofers), allowing you to enjoy high quality
playback.
When bi-wiring with bi-wireable speakers, connect the mid
and high range terminals to SPEAKERS A (or SPEAKERS B),
the low range terminals to SPEAKERS B (or SPEAKERS A).
.
wq
wq
HIGH
LOW
wq
wq
HIGH
LOW
Speaker
(R)
Speaker
(L)
Remove shorting bar Remove shorting bar Remove shorting bar
Remove shorting bar
