Marantz PM10s1 - Rear Panel

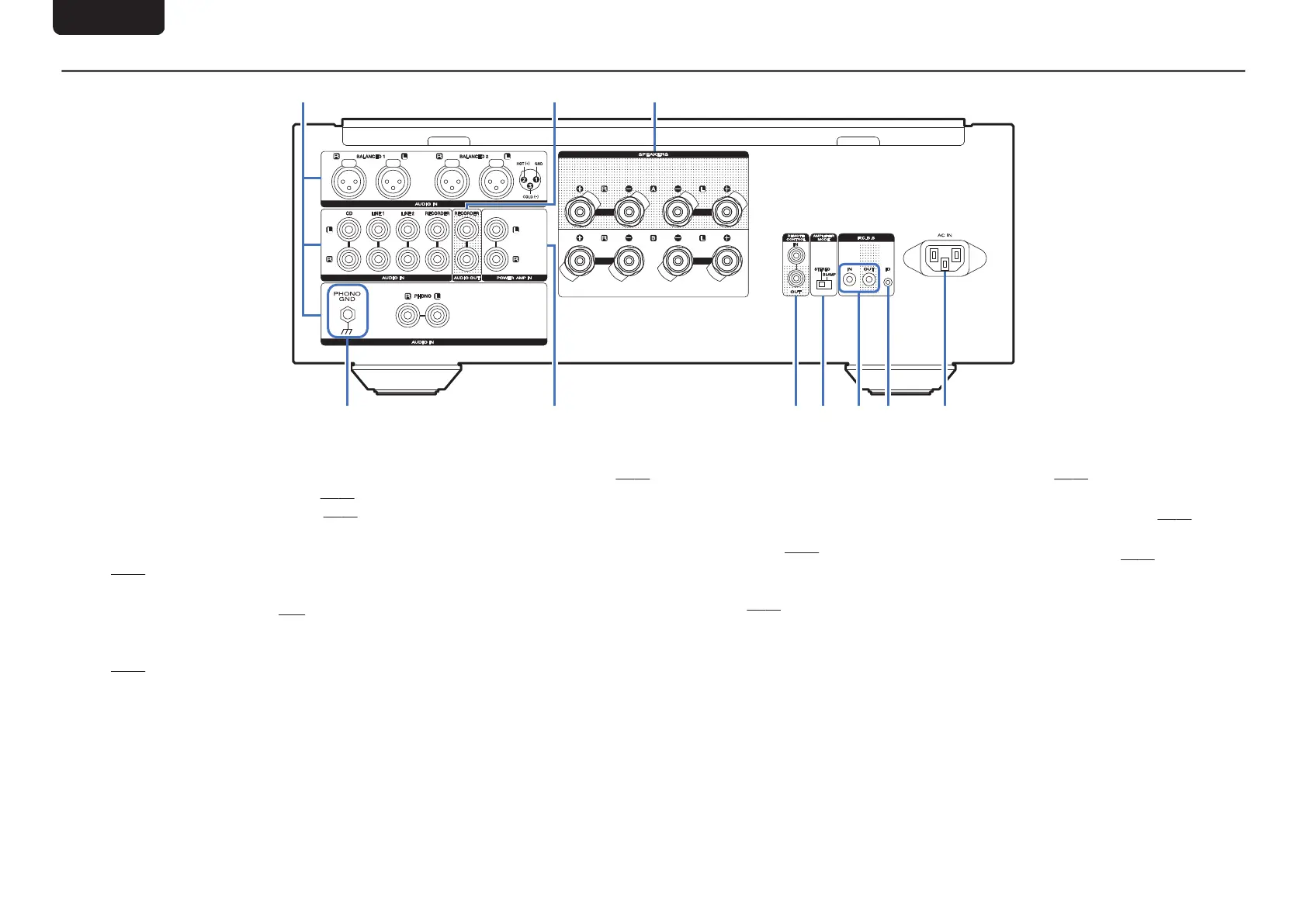

Rear panel
.
ewq
tyuioQ
0
r
A
Analog audio input connectors (AUDIO IN)
Used to connect devices equipped with analog audio
output connectors.
0
“Connecting a playback device” (v p. 10)
0
“Connecting a recording device” (v p. 10)
B
AUDIO OUT connectors (RECORDER)
Used to connect the input connector of a recorder.
(v
p. 10)
C
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 8)
D
PHONO GND terminal
Used to connect the ground wire of a turntable.
(v p. 10)
E
Power amplifier connectors (POWER AMP IN)
Used to connect a pre-amplifier when this unit is used as a
power amplifier. (v p. 15)
F
Remote control input/output connectors (REMOTE
CONTROL)
Used to connect to a Marantz audio device that is
compatible with the remote control function. (v p. 16)
G
AMPLIFIER MODE switch
Used to switch the amplifier mode (STEREO/BI-AMP).
(“Stereo complete bi-amp connection” (v
p. 12))
H
F.C.B.S. connectors
Used to connect a high quality playback system using two
or more of these units. (v p. 11)
I
F.C.B.S. ID button
Used to set the ID number for F.C.B.S.. (v p. 12)
J
AC inlet (AC IN)
Used to connect the power cord. (v p. 16)
