Marantz PM250 - Exploded View and Parts List; Rear Panel Parts

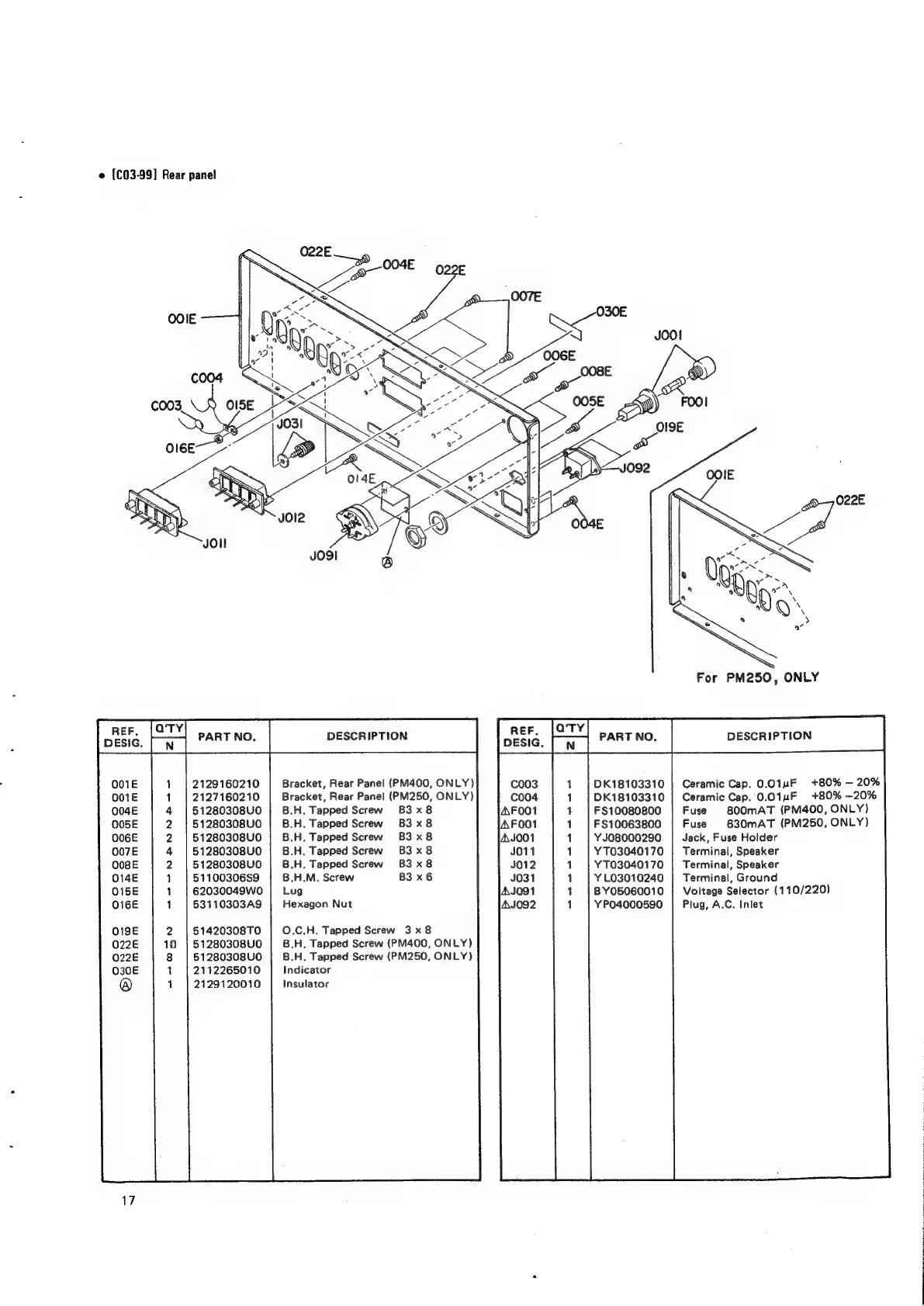

e {C03-99] Rear panel
1 2129160210 Bracket, Rear Panel (PM400, ONLY) 1 DK18103310 | Ceramic Cap. 0.01uF +80% — 20%
1 2127160210 Bracket, Rear Panel (PM250, ONLY) 1 DK18103310 | Ceramic Cap. 0.01uF +80% ~20%
4 51280308U0 B.H. Tapped Screw B3x8 1 FS10080800 Fuse 800mAT (PM400, ONLY)
2 |51280308U0 | B.H. Tapped Screw 83x8 1 |FS10063800 | Fuse 630mAT (PM250, ONLY)
2 51280308U0 B.H. Tapped Screw 83x8 1 YJ08000290 Jack, Fuse Holder
4 |51280308U0 B.H. Tapped Screw B3x8 1 ¥T03040170 | Terminal, Speaker
2 51280308U0 B.H. Tapped Screw 83x8 1 YT03040170 | Terminal, Speaker
1 5110030689 B.H.M. Screw B3 x6 1 YLO3010240 } Terminal, Ground
1 62030049W0 | Lug 1 BY05060010 | Voltage Selector (110/220)
1 1
53110303A9 Hexagon Nut YP04000590 Plug, A.C. Inlet
nN
51420308T0O
51280308U0
51280308U0
2112265010
2129120010
O.C.H. Tapped Screw 3x8
B.H. Tapped Screw (PM400, ONLY)
B.H. Tapped Screw (PM250, ONLY)
Indicator
Insulator
=
oO
=_— 0
17
