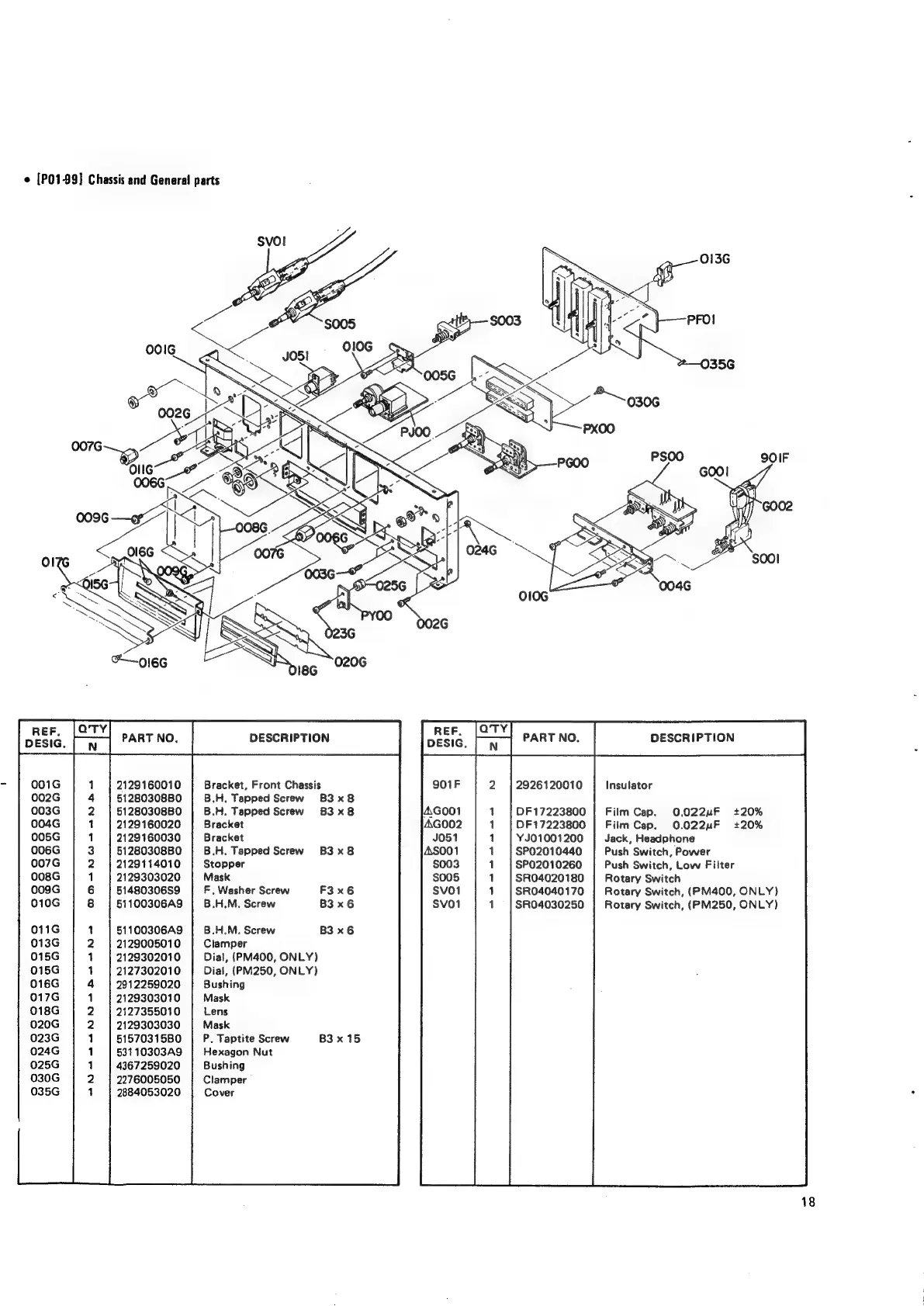

Marantz PM250 - Exploded View and Parts List; Chassis and General Parts

e [P01-99] Chassis and General parts
="
DAAMNANWe AN ho
"Newt e ew NN PA aANhY a
PART NO.
2129160010
5128030880
51280308B0
2129160020
2129160030
51280308B0
2129114010
2129303020
5148030689
51100306A9
51100306A9
2129005010
2129302010
2127302010
2912259020
2129303010
2127355010
2129303030
51570315BO
53110303A9
4367259020
2276005050
2884053020
DESCRIPTION
Bracket, Front Chassis
B.H. Tapped Screw B3x8
B.H. Tapped Screw 83 x8
Bracket
Bracket
B.H. Tapped Screw B3x8
Stopper
Mask
F, Washer Screw F3x6
B.H.M. Screw B3x6
B.H.M. Screw B3 x6
Clamper
Dial, (PM400, ONLY)
Dial, (PM250, ONLY)
Bushing
Mask
Lens
Mask
P. Taptite Screw B3 x15
Hexagon Nut
Bushing
Clamper
Cover
2926120010
DF17223800
DF17223800
Y¥J01001200
SP02010440
$R04040170
$R04030250
Insulator
Film Cap. 0.022uF +20%
Film Cap. O0.022uF +20%
Jack, Headphone
Push Switch, Power
Push Switch, Low Filter
Rotary Switch
Rotary Switch, (PM400, ONLY)
Rotary Switch, (PM250, ONLY)
