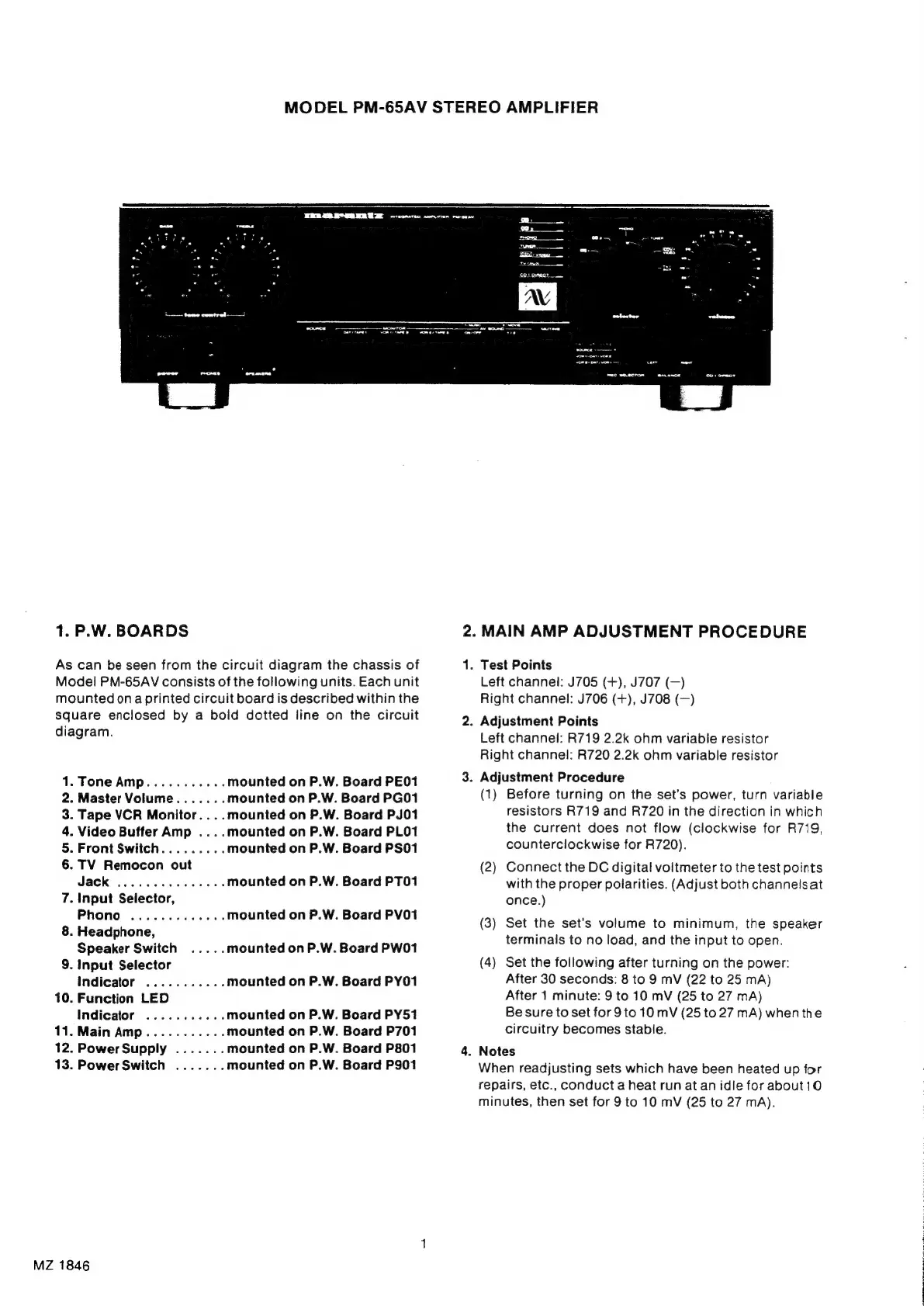

MODEL
PM-65AV
STEREO
AMPLIFIER
MER
GRRSB
NRE
wrroures
wean
mew
1.
P.W.
BOARDS
As
can
be
seen
from
the
circuit
diagram
the
chassis
of
Model
PM-65AV
consists
of
the
following
units.
Each
unit
mounted
ona
printed
circuit
board
is
described
within
the
square
enclosed
by
a
bold
dotted
line
on
the
circuit
diagram.
1.
Tone
Amp...........
mounted
on
P.W.
Board
PE01
2.
Master
Volume.......
mounted
on
P.W.
Board
PG01
3.
Tape
VCR
Monitor.
.
..
mounted
on
P.W.
Board
PJ01
4.
Video
Buffer
Amp
....mounted
on
P.W.
Board
PL0O1
5.
Front
Switch.........
mounted
on
P.W.
Board
PS01
6.
TV
Remocon
out
JOCK
ok
sedeelicales
mounted
on
P.W.
Board
PT01
7.
Input
Selector,
Phono
.............
mounted
on
P.W.
Board
PV01
8.
Headphone,
Speaker
Switch
.....
mounted
on
P.W.
Board
PW01
9.
Input
Selector
Indicator
...........
mounted
on
P.W.
Board
PY01
10.
Function
LED
Indicator
...........
mounted
on
P.W.
Board
PY51
11.
Main
Amp...........
mounted
on
P.W.
Board
P701
12.
Power
Supply
.......
mounted
on
P.W.
Board
P801
13.
Power
Switch
.......
mounted
on
P.W.
Board
P901
MZ
1846
2.
MAIN
AMP
ADJUSTMENT
PROCEDURE
1.
Test
Points
Left
channel:
J705
(+),
J707
(—)
Right
channel:
J706
(+),
J708
(—)
.
Adjustment
Points
Left
channel:
R719
2.2k
ohm
variable
resistor
Right
channel:
R720
2.2k
ohm
variable
resistor
.
Adjustment
Procedure
(1)
Before
turning
on
the
set’s
power,
turn
variable
resistors
R719
and
R720
in
the
direction
in
which
the
current
does
not
flow
(clockwise
for
R719,
counterclockwise
for
R720).
(2)
Connect
the
DC
digital
voltmeter
to
the
test
points
with
the
proper
polarities.
(Adjust
both
channelsat
once.)
(3)
Set
the
set’s
volume
to
minimum,
the
speaker
terminals
to
no
load,
and
the
input
to
open.
(4)
Set
the
following
after
turning
on
the
power:
After
30
seconds:
8
to
9
mV
(22
to
25
mA)
After
1
minute:
9
to
10
mV
(25
to
27
mA)
Be
sure
to
set
for
9
to
10
mV
(25
to
27
mA)
when
the
circuitry
becomes
stable.
.
Notes
When
readjusting
sets
which
have
been
heated
up
for
repairs,
etc.,
conduct
a
heat
run
at
an
idle
for
about
10
minutes,
then
set
for
9
to
10
mV
(25
to
27
mA).
