Marantz PM7001 series User Manual

1
1. TECHNICAL SPECIFICATIONS
Power output (20 Hz ~ 20 kHz simultaneous drive of both channels)
............................................................... 70 W x 2 (8
Ω
load)
............................................................. 100 W x 2 (4
Ω
load)
Total harmonic distortion (20 Hz ~ 2 0 kHz simultaneous drive of both
channels, 8
Ω
load) ................................................................ 0.02 %
Power band width (8
Ω
load, 0.05 %) ..........................5 Hz ~ 60 kHz
Frequency response (CD, 1 W, 8
Ω
load ....... 5 Hz ~ 100 kHz ± 3 dB
Dumping factor (8
Ω
load, 20 Hz ~ 20 kHz)................................. 100
Input sensitivity/Input impedance
PHONO (MM)........................................................ 2.5 mV/47 k
Ω
CD, LINE, TUNER, AUX/DVD, RECORDER ........ 200 mV/20 k
Ω
MAIN IN.....................................................................1.6 V/20 k
Ω
Output voltage/Output impedance
PRE OUT .................................................................. 16 V/560
Ω
Maximum allowed PHONO input (1 kHz)
MM .................................................................................. 130 mV
RIAA deviation (20 Hz ~ 20 kHz) ................................... ± 0.5 dB
S/N (IHF-A, 1 W, 8
Ω
load)
PHONO (MM)................................................ 85 dB (5 mV input)
CD, LINE, TUNER, AUX/DVD, RECORDER
............................................................ 88 dB (500 mV input)
MAIN IN............................................................................ 107 dB
Tone control
Bass (50 Hz) ..................................................................± 10 dB
Treble (20 kHz) ................................................................± 10 dB
Power requirement ............................................ AC 230 V 50 Hz [/N]
Power consumption
(EN60065)......................................................................... 250 W
(4
Ω
, 100 W x 2 output) ..................................................... 470 W
Accessories
Remote controller...................................................................... 1
AA batteries .............................................................................. 2
Detachable AC power cable...................................................... 1
Maximum outer dimensions (Amplifier)
Width .............................................................................. 440 mm
Height.......................................................................... 126.5 mm
Depth ............................................................................. 364 mm
Weight (Amplifier)...................................................................10.5 kg
1
RECORDER
RECORDER
2
2
1
1
AUX/DVD
AUX/DVD
TUNER
TUNER
PHONO
PHONO
CD
CD
STANDBY
STANDBY
SPEAKERS
SPEAKERS
OFF
OFF
ON
ON
INTEGRATEDAMPLIFIERPM7001
INTEGRATEDAMPLIFIERPM7001
TREBLE
TREBLE
BALANCE
BALANCE
POWERON/OFF
POWERON/OFF
PHONES
PHONES
BASS
BASS
RECORDER2
RECORDER2
INPUTSELECTOR
INPUTSELECTOR
R
R
L
L
VOLUME
VOLUME
+
+
-
-
+
+
-
-
RECORDER1
RECORDER1
RECORDER2
RECORDER2
RECORDER1
RECORDER1
TUNER
TUNER
PHONO
PHONO
MAX
MAX
MIN
MIN
A
A
SOURCEDIRECT
SOURCEDIRECT
B
B
COPY
COPY
OFF
OFF
SELECTOR
SELECTOR
REC
REC
CD
CD
AUX/DVD
AUX/DVD
ON
ON
OFF
OFF

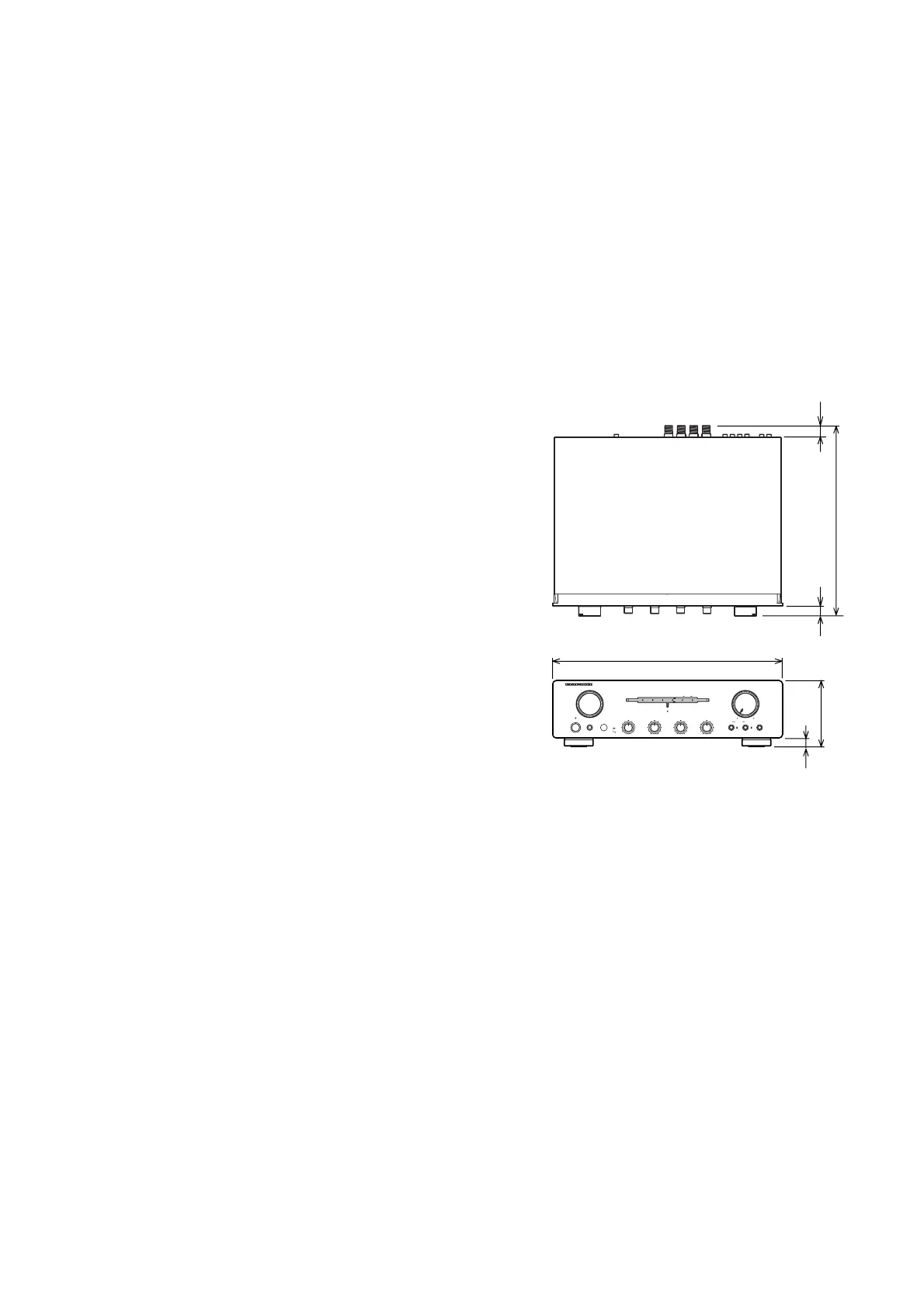

364
19.0
126.5
440.0
23.0
16.5

Marantz PM7001 series Specifications

General

Total Harmonic Distortion	0.02%
Input Sensitivity (Line)	200 mV / 20 kOhm
Input Sensitivity (MM)	2.5 mV / 47 kOhm
Weight	10.5 kg
Phono Input	Yes
Damping Factor	100
Signal to Noise Ratio	85 dB (MM)
Dimensions	440 x 126 x 366 mm
Speaker Outputs	A/B
Power Output (8 ohms)	70 W (20 Hz - 20 kHz, 0.03 % THD)
