Marantz PM700N - Connect the Speakers to the Amplifier; Connecting the Speaker Cables

4
2

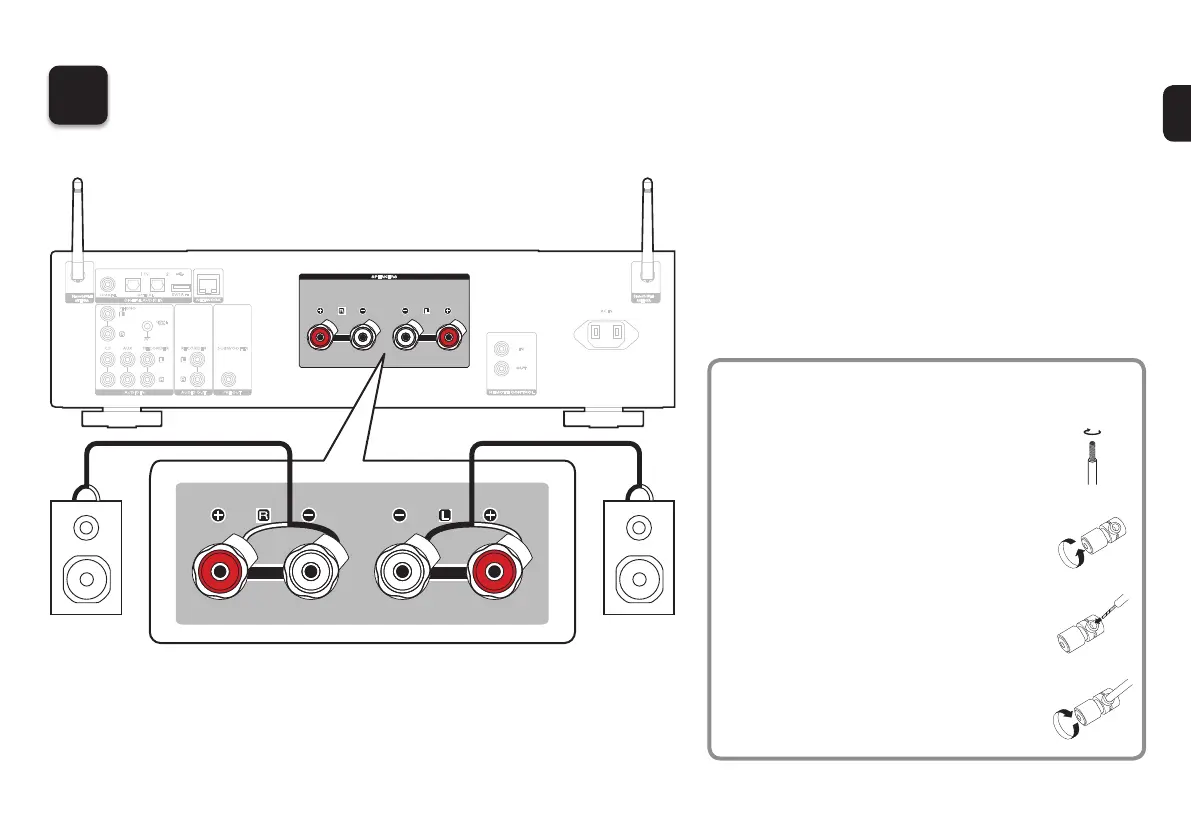

Connect the speakers to the amplifi er
AUDIO IN
CD AUX RECORDER
PHONO
SIGNAL
GND
AC IN
COAXIAL OPTICAL
DIGITAL AUDIO IN
AUDIO OUT PRE OUT
RECORDER
SUBWOOFER
(R)
w q
(L)
w q
Connecting the speaker cables
q Peel o about 10 mm of sheathing
from the tip of the speaker cable,
then either twist the core wire
tightly or apply solder to it.
w Turn the speaker terminal
counterclockwise to loosen it.
e Insert the speaker cable’s core
wire to all the way into the
speaker terminal.
r Turn the speaker terminal
clockwise to tighten it.
