Marantz PMD560 User Manual

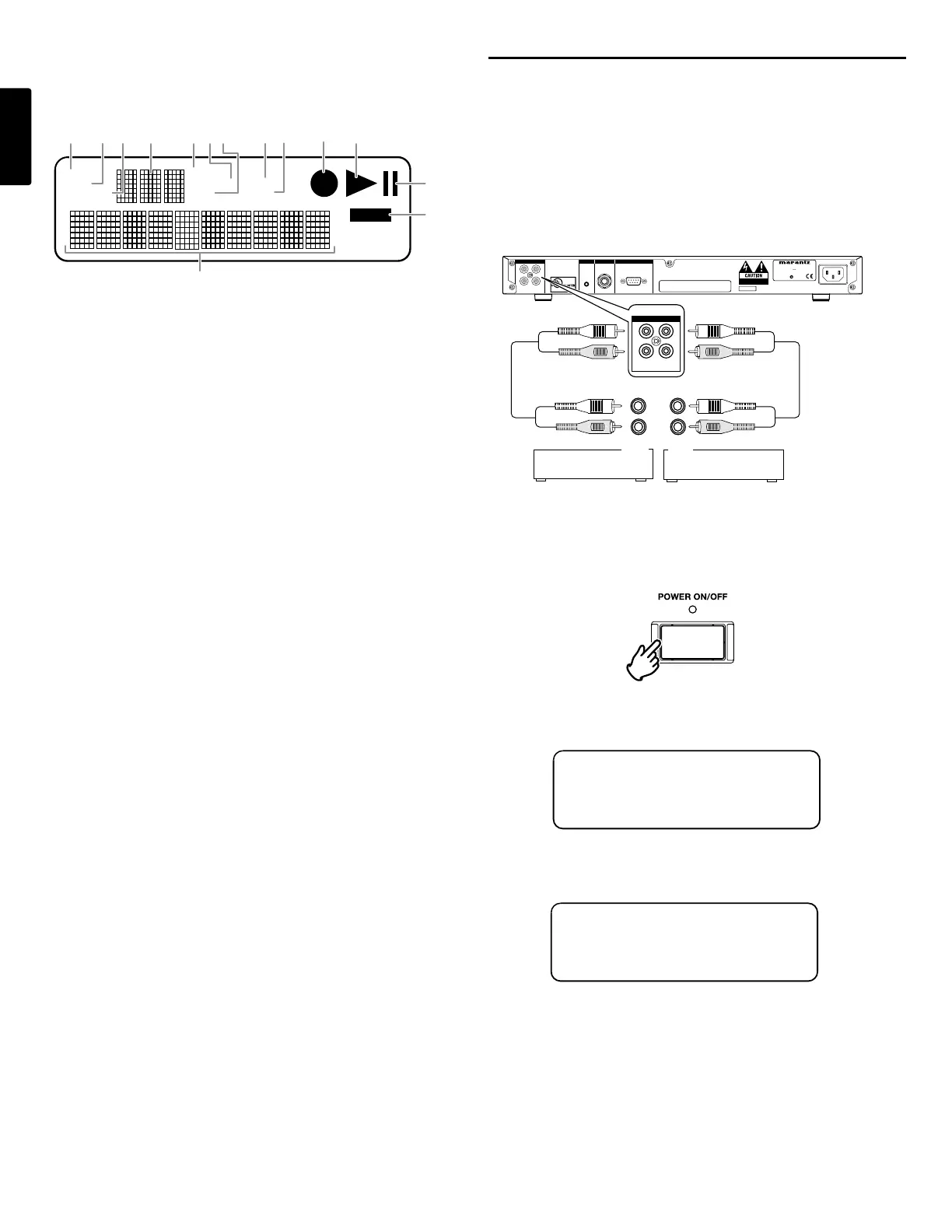

Basic operation
The PMD560 comes factory preset for recording in stereo.
These are settings for recording a meeting, not settings for
recording a vocal performance.
1. Rack mount the PMD560 or install on a stable cart or
stand.
2.Connect line level analog inputs and/or outputs to the
LINE IN/OUT jacks.
For mono
recording
use either
jack.
3. Install a CF card.
See page 7 for installing a CF card.
4. Push the POWER switch to turn on.
a. A full display will appear. Wait for the PMD560 to
initialize.
b. The display will change to this display for a newly
formatted CF card.
REMAIN
STEREO
MP3
LOCK
44.1K
001:05:32
000
Load i n
g
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AUDIO SYSTEMAUDIO SYSTEM
6 9 F M 6 9 F M
100-240V 50/60Hz100-240V 50/60Hz
MODELMODEL NO. PMD560 NO. PMD560
SERIALSERIAL NO. NO.
FACTACTORORY CODE CODE
NO.4300NO.4300
OUTOUTIN
R
L
WARNING : SHOCK HAZARD - DO NOT OPEN.
AVIS : RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR.
MADE IN JAPAN
FABRIQUE AU JAPON
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT
TO THE FOLLOWING TWO CONDITIONS;
(
1
)
THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE,AND
(
2
)
THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
N29
LINELINE REMOTE2 REMOTE1REMOTE1 RC2332CRC2332C
R
L
INPUT
Mixer or
cassette player
R
L
OUTPUT
Amp, Mixer / Pre-
Amp
OUTOUTIN
R
L
LINELINE
6
ENGLISH
Display
a. MARK
The MARK label appears when the number displayed on
the upper alphanumeric display refers to EDL marks.
b. IN-
The IN- label appears when the beginning (start point) of
Copy segment function has been set.
c. REMAIN
The REMAIN label appears to indicate remaining time.
d. Upper alphanumeric display
Displays track number, number of tracks on CF card, EDL
mark number, number of EDL's on CF card.
e. S.SKIP
The S.SKIP label appears when Silent Skip is enabled.
f. STEREO
The STEREO label appears when the recording channel is
stereo.
g. MP3
The MP3 label appears when the audio file is MP3.
h. 44.1K
The 44.1K label appears when the recording audio
wave(s) is 44,100 samples per second.
i. 48K
The 48K label appears when the recording audio wave(s)
is 48,000 samples per second.
j. Record
The Record symbol appears when the PMD560 is in
record mode. It appears with the Play symbol when
recording and appears flashing when in record - pause.
k. Play
The Play symbol appears when the PMD560 is in
playback, playback pause, recording, or recording pause.
l. Pause
The Pause symbol appears when the PMD560 is in
playback pause or recording pause.
m. LOCK
The Lock symbol appears when the PMD560 is in key lock.
n. Lower alphanumeric display
Displays a variety of information including remaining time,
clock time, menu settings, etc.
MARK
IN
-
REMAIN
S.SKIP
STEREO
MP3
LOCK
44.1K
48K
ab
h
i
g
cd
e
k
l
m
n
j
f
