Additional Functions

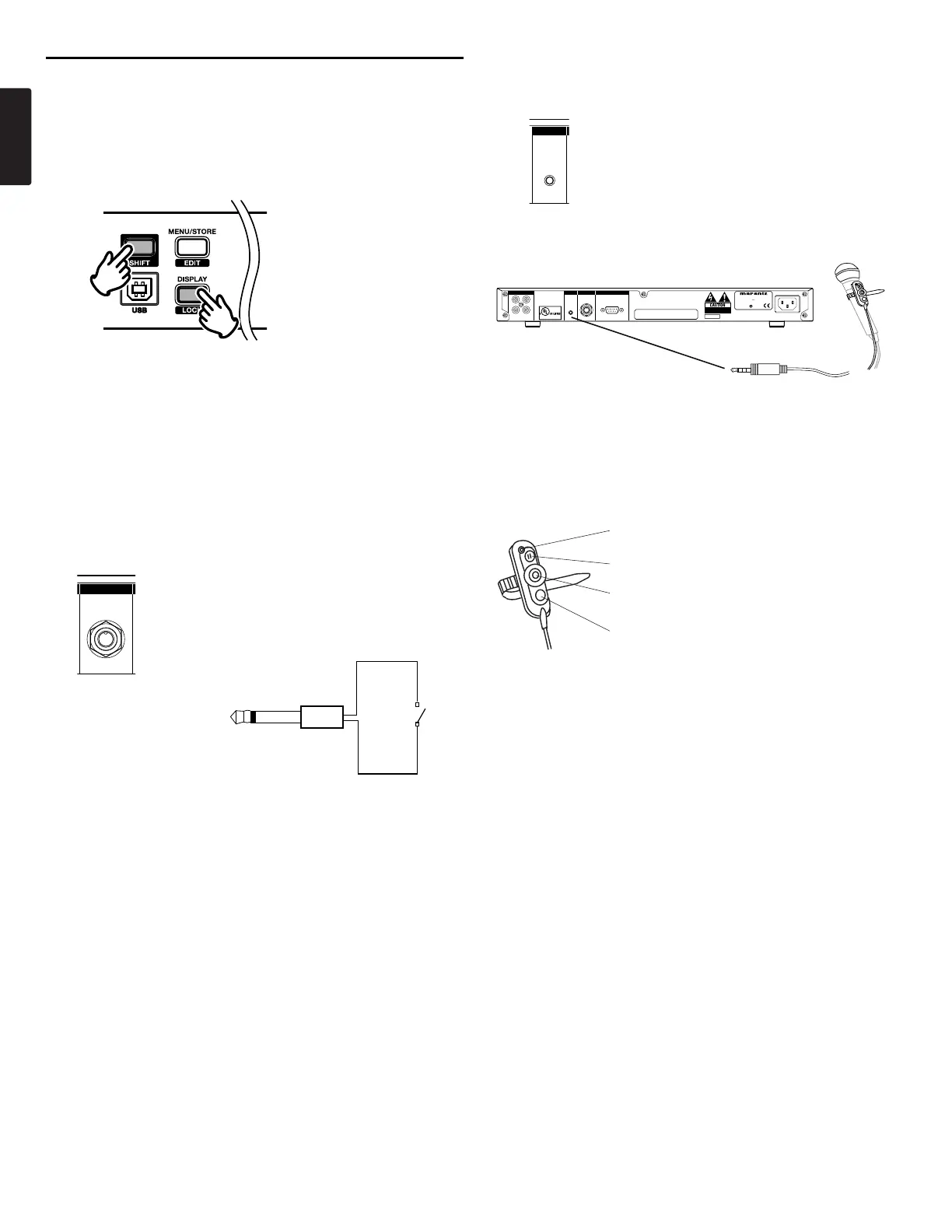

REMOTE2 jack
The REMOTE2 jack is for the optional
RC600PMD remote.
The RC600PMD is designed for
microphone interviews. It attaches to your
microphone.
The remote's five feet cord with a four contact mini plug,
plugs into the PMD560.
The RC600PMD does not require any menu changes for
use. The RC600PMD includes:
a An indicator light:
• (green) lit and steady during standby or stop
• (red) lit and steady while recording
• (flashing red) during rec pause
• (orange) flashes for 1/2 second when an over peak
level signal is input during recording or rec pause,
then it goes back to red
• (green flash) for 2 seconds when an EDL mark is
added during recording
b push to pause recording
c push to start/resume recording and to manually
increment tracks
d push to add an EDL mark while recording or playback
a
b
c
d
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AUDIO SYSTEM
6 9 F M
100-240V 50/60Hz
MODEL
NO. PMD560
SERIAL
NO.
FACT
OR
Y CODE
NO.4300
OUT
IN
R
L
WARNING : SHOCK HAZARD - DO NOT OPEN.
AVIS : RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR.
MADE IN JAPAN
FABRIQUE AU JAPON
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT
TO THE FOLLOWING TWO CONDITIONS;
(
1
)
THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE,AND
(
2
)
THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
N29
LINE
REMOTE2
REMOTE1
RC2332C
REMOTE2
Key lock
The key lock secures the PMD560 in the state it is in during
Record, Playback or Stop.
Push and hold the SHIFT button while pushing the
DISPLAY/LOCK button to turn KEY LOCK on. All buttons
and functions will cease to operate.
Set Date and Time
The date and time are written on each audio track (file)
when the track is started. When an audio track is viewed on
a computer, this date and time appears as when the file was
'created'.
Setup the "Date/Time" of the preset menu. (page 23)
REMOTE1 jack
Plug a wired remote (not supplied) in this
jack.
A switch connected to
the 1/4 inch jack off
(open) and on (closed)
does the following,
depending on the
RemoteMode setting:
RemoteMode:
StartPause
From Record-Pause or Playback-Pause, switch remote on
to start recording or playback. During recording or playback,
switch remote off to pause and on to resume. If Auto Mark is
On, an EDL mark is added when recording resumes.
Start Pause Tr
From Record-Pause or Playback-Pause, switch remote on
to start recording or playback. During recording or playback,
switch remote off to pause and on to resume.
During recording ,switch remote off to create a new track.
Mark
During recording or playback, switch remote to on to add an
EDL mark.
Manual Trk
During recording, switch remote to on to increment the track.
A new track is created at that point. There is no break in
recording.
See page 26 for instructions on how to set or change the
Remote Mode.
