Marantz PMD661 Service Manual

67

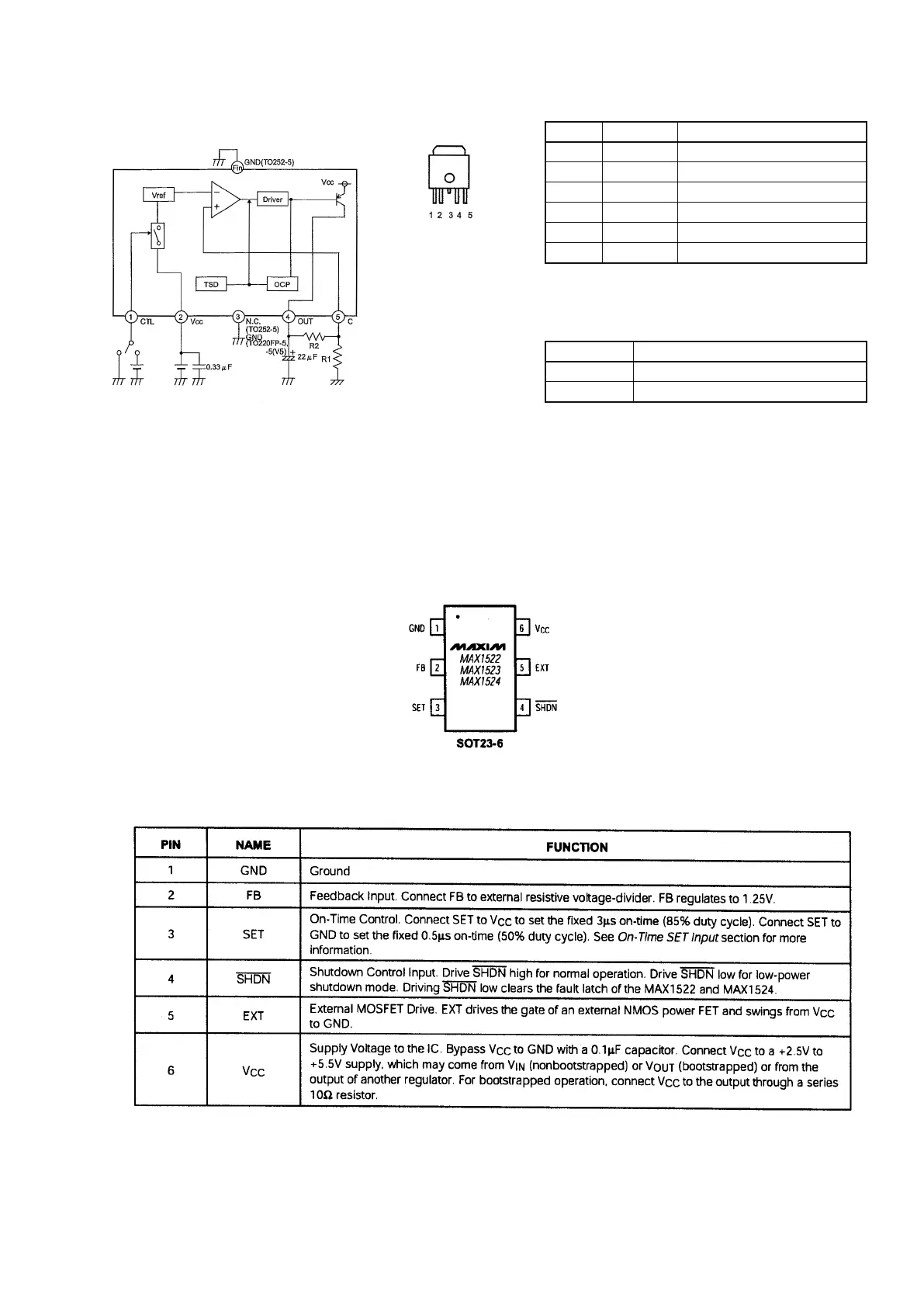

Q805 : BA00BC0WFP （電源 IC）
Pin No. Pin name Function
1 CTL Output voltage on/off control
2 Vcc Supply voltage input
3 N.C./GND NC pin/GND
*1
4 OUT Power supply output
5 C ADJ pin
FIN GND GND
*2
*1 NC pin for TO252-5 snf GND pin for TO220FP-5 and
TO220FP-5(V5).
*2 TO252-5 only.
PIN External capacitor setting range
Vcc (2 Pin) Approximately 0.33
μ
F.
OUT (4 Pin) 22
μ
F to 1000 uF
TOP VIEW[BA00BC0WFP]
TO252-5
Q808 : MAX1522eut-t （電源 IC）
PIN CONFIGURATION
TOP VIEW
PIN DESCRIPTIONS

Marantz PMD661 Specifications

General

Recording Format	MP3, WAV
Storage Media	SD/SDHC card
Microphone Input	XLR/TRS combo jack
USB	USB 2.0
Microphone	Built-in stereo microphones
Battery Life	Approximately 4 hours with alkaline batteries
Weight	650 g (without batteries)
Sampling Rate	44.1 kHz, 48 kHz
Bit Rate	32kbps to 320kbps (MP3)
Inputs	2 x XLR microphone inputs, 1 x 1/8" (3.5mm) line input
Outputs	1 x 3.5 mm headphone
Power	4 x AA batteries or AC adapter
