Marantz PMD661 Service Manual

5

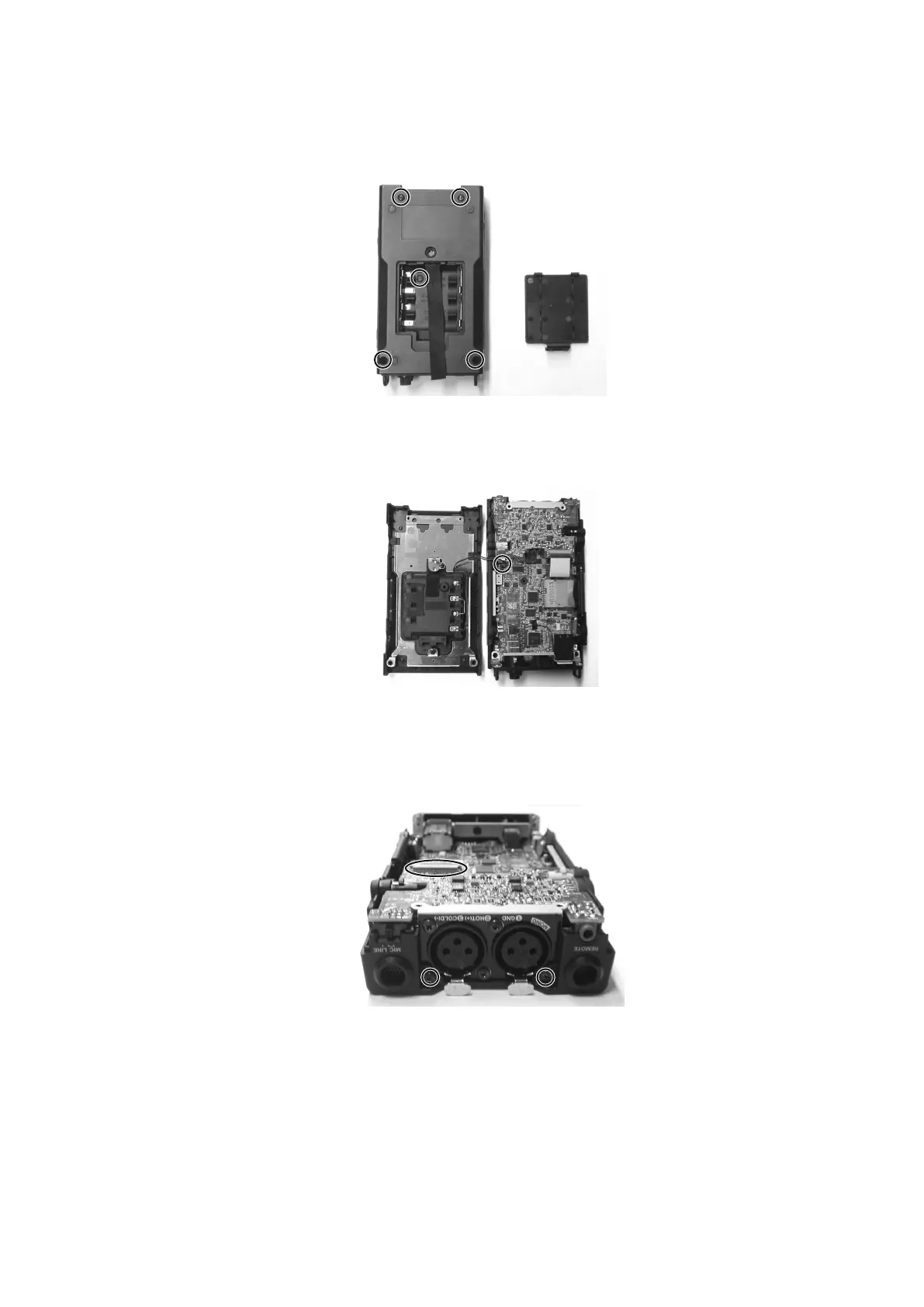

3. HOW TO DISASSEMBLE
1) Remove the battery compartment cover, and remove
the fi ve screws from the bottom case.
2) Open the bottom case, and disconnect the battery
terminal connector.
3) Remove the two screws from the rear panel. Then,
disconnect the FFC connector.
3. 分解手順
1) 電池カバーを外し、ボトムケースの ネジ５本 を外します 。
2) ボトムケースを開け 、バッテリー 端 子コネクタを外します 。
3) リア パ ネ ル の ネ ジ 2本を外します。 次に FFCコネクタを外
します 。
