Marantz PMD661 Service Manual

6

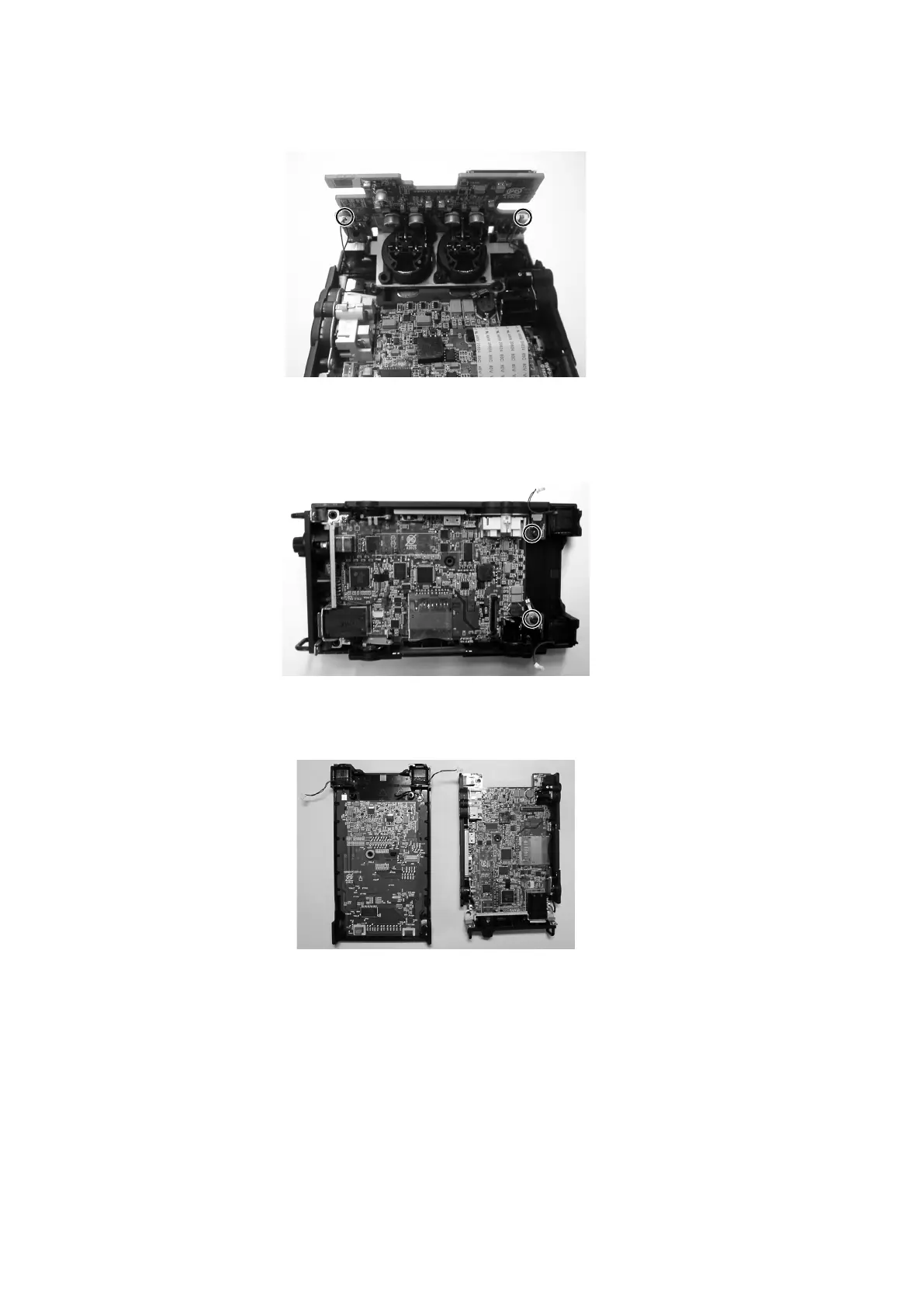

4) Lift up the XLR board, disconnect the connectors that
are connected to the microphones on the left and the
right sides, and take out the XLR board.
5) Remove the two screws on the DC.IN jack and LINE.
IN.2 jack sides of the main board.
6) Take out the main board.
4) XLR基板を持ち上げ、左右のマイク部分に接続されている
コネクタを外し、XLR 基板を外します。
5) メイン基 板の DC INジャックと LINE IN 2ジャック側にあ
るネジ 2本を外します。
6) メイン基 板を取り外します 。

Marantz PMD661 Specifications

General

Recording Format	MP3, WAV
Storage Media	SD/SDHC card
Microphone Input	XLR/TRS combo jack
USB	USB 2.0
Microphone	Built-in stereo microphones
Battery Life	Approximately 4 hours with alkaline batteries
Weight	650 g (without batteries)
Sampling Rate	44.1 kHz, 48 kHz
Bit Rate	32kbps to 320kbps (MP3)
Inputs	2 x XLR microphone inputs, 1 x 1/8" (3.5mm) line input
Outputs	1 x 3.5 mm headphone
Power	4 x AA batteries or AC adapter
