Marantz PMD661 Service Manual

7

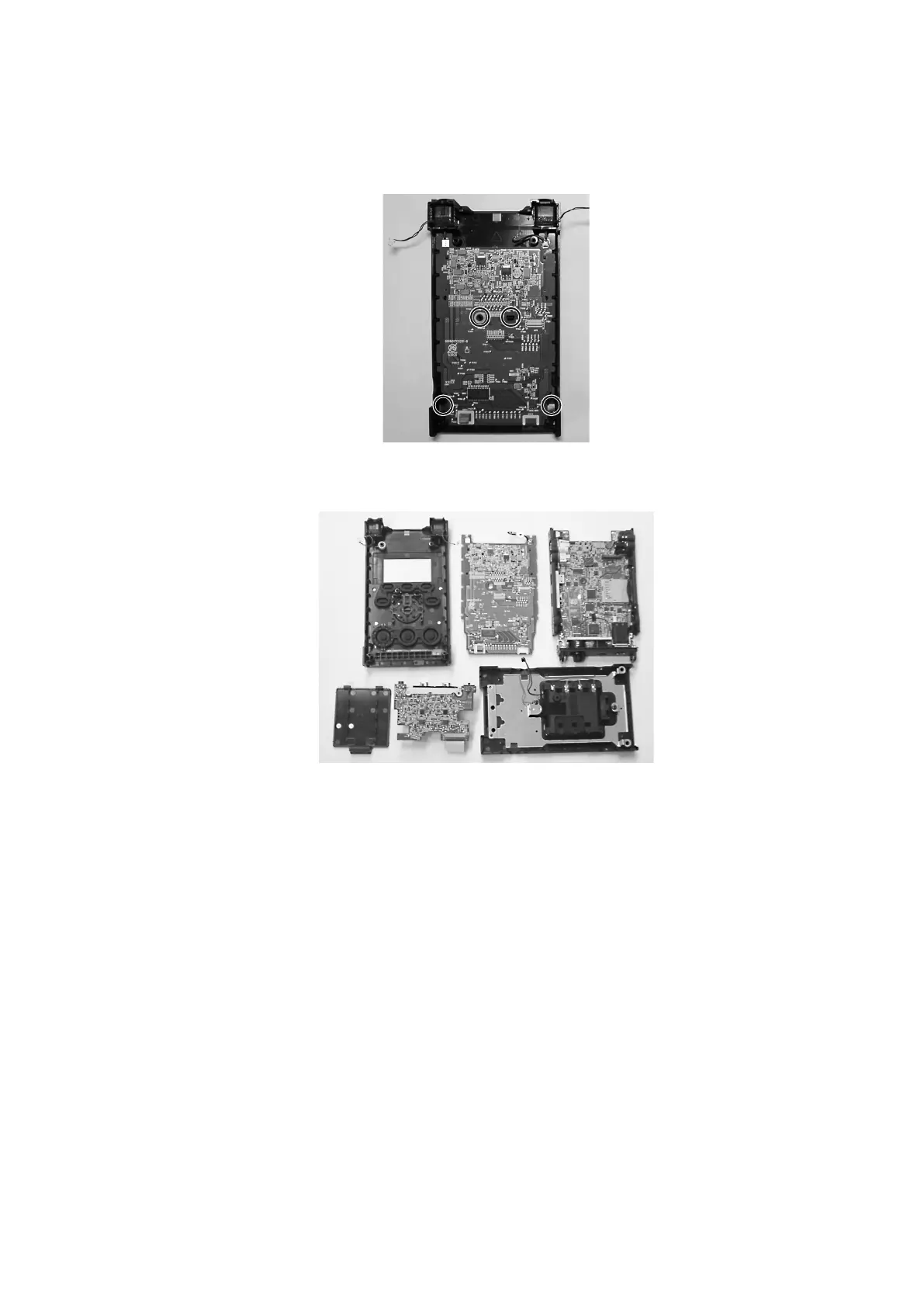

7) Remove the collar in the center of the key board, and
release two tabs on the front panel side.
While the tabs are in a released state, release the tab
in the center of the board, and take out the key board
from the top case.
Dismantled PMD661
7) キー基板中央のカラーを外し、フロントパネル 側 のつめ 2箇
所を外します。
つめを外している状態で、基板中央のつめ1箇所を外し、
トップケースからキー基 板を取り外します。
分解したPMD661

Marantz PMD661 Specifications

General

Recording Format	MP3, WAV
Storage Media	SD/SDHC card
Microphone Input	XLR/TRS combo jack
USB	USB 2.0
Microphone	Built-in stereo microphones
Battery Life	Approximately 4 hours with alkaline batteries
Weight	650 g (without batteries)
Sampling Rate	44.1 kHz, 48 kHz
Bit Rate	32kbps to 320kbps (MP3)
Inputs	2 x XLR microphone inputs, 1 x 1/8" (3.5mm) line input
Outputs	1 x 3.5 mm headphone
Power	4 x AA batteries or AC adapter
