Marantz PMD661 Service Manual

37 38

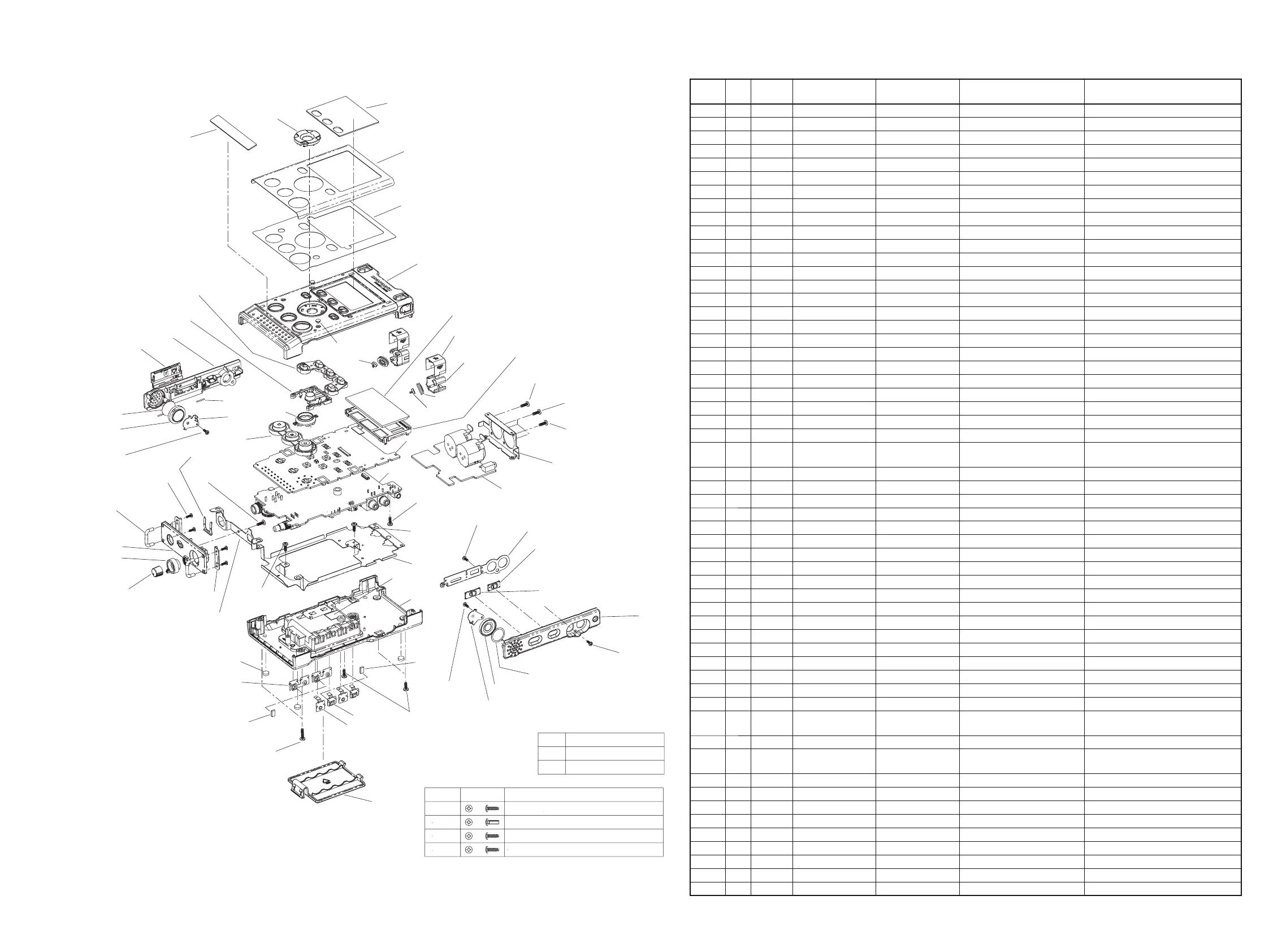

8. EXPLODED VIEW AND PARTS LIST
１７ＣＳ
032B
９０２Ｇ
５１２８
φ２．６Ｘ１２（Ｕ）
ｘ２
５１１０
φ２Ｘ６（Ａ）
ｘ４
９０４Ｇ
５１２８
φ２．６Ｘ８（Ｕ）
９０３Ｇ
５１２５
φ２Ｘ６（Ａ）
５１２５
φ２Ｘ６（Ａ）
010B
030B
004B
008B
002B
072B
070B
068B
074B
066B
Z201
076B
024G
060B
062B
０６４Ｂ×２
076B
074B
Z203
Z209
020B
050B
040B
054B
056B
016B
016G
042Bx2
022Bx2
024Bx2
026Bx2
Z205
Z207
048B
5102
900B
012B
018B
014B
002G
010G
０１４Ｇ×４
００６Ｇ×２
００４Ｇ×２
010G
００８Ｇ×２
5201
5101
５１２８
φ２．６Ｘ８（Ｕ）
×２
５１２８
φ２．６Ｘ８（Ｕ）
５１２５
φ２Ｘ６（Ａ）
044Bx2
５１２８
φ２．６Ｘ８（Ｕ）
ｘ３
012G
００６Ｂ×２
５１３０
φ３Ｘ８（Ｕ）
５１２８
φ２．６Ｘ８（Ｕ）
5128
5125
ＳＴＥＥＬ／ＢＬＡＣＫ
（Ｕ）
SYMBOL ＳＴＹＬＥ
ＰＡＲＴＳ ＮＡＭＥ
ＭＡＴＥＲＩＡＬ／ＦＩＮＩＳＨ
ＭＡＲＫ
5110
+B.H.M.SCREW
+B.H.TAPTITESCREW(BTYPE)
ＳＴＥＥＬ／ＣＨＲＯＭＡＴＥ
（Ａ）
5130
+B.H.TAPTITESCREW(PTYPE)
+P.H.TAPTITESCREW(BTYPE)
POS.
No.
QTY
VERS.
COLOR
PART No.
(FOR EUR)
PART No.
(D&M)
PART NAME DESCRIPTION
002B 1 401510011001P 401510011001P TOP CASE TOP CASE
004B 1 422410019003P 422410019003P AL ESCUTCHEON ESCUTCHEON
006B 2 00M10CS112012 00M10CS112012 EARTH SHAFT EARTH SHAFT
008B 1 456110009002P 456110009002P ADHESIVE ADHESIVE FOR TOP CASE
010B 1 411510058007P 411510058007P TRACK JUMP BUTTON TRACK JUMP BUTTON
012B 1 411510057004P 411510057004P ENTER BUTTON ENTER BUTTON
014B 1 481510009004P 481510009004P REC LENS REC LENS
016B 1 411010055003P 411010055003P REC BUTTON REC BUTTON
018B 1 411010056006P 411010056006P DISPLAY BUTTON DISPLAY BUTTON
022B 2 437310003001P 437310003001P MIC NET MIC NET
024B 2 454510010002P 454510010002P MIC HOLDER MIC HOLDER
026B 2 00M10CS271040 00M10CS271040 MIC RUBBER HOLDER MIC RUBBER HOLDER
030B 1 416510016008P 416510016008P O LED WINDOW OLED WINDOW
032B 1 416510017001P 416510017001P LEVEL WINDOW LEVEL WINDOW
034B 3 448010008009S 448010008009S RFSG-060060 L=6MM GASKET CONTACTOR L=6MM
040B 1 402510051002P 402510051002P FRONT PANEL FRONT PANEL
042B 2 414310001002P 414310001002P HANDLE HANDLE
044B 2 444310072005P 444310072005P HANDLE BRACKET HANDLE BRACKET
047B 2 00M10CS123040 00M10CS123040 GASKET CONTACTOR GASKET CONTACTOR
048B 1 444310073008P 444310073008P FRONT BRACKET FRONT BRACKET
050B 1 00M10AJ005010 00M10AJ005010
MET41-0191
(CLANP FOR HP JACK)
FOR HP JACK
054B 1 412510026003P 412510026003P REC VOL KNOB L L ROTARY KNOB
056B 1 412510023004P 412510023004P REC VOL KNOB R R ROTARY KNOB
060B 1 404510010007P 404510010007P SIDE PANEL L SIDE PANEL L
062B 1 415510004002P 415510004002P SD LID SD LID
064B 2 461310003004P 461310003004P DOOR SHAFT DOOR SHAFT
066B 1 404510011000P 404510011000P SIDE PANEL R SIDE PANEL R
068B 1 412510024007P 412510024007P POWER KNOB POWER SLIDE KNOB
070B 1 412510025000P 412510025000P KEY LOCK KNOB LOCK SLIDE KNOB
072B 1 444310070009P 444310070009P KNOB BRACKET SIDE BRACKET R
074B 2 432010008004P 432010008004P SPEAKER NET SPEAKER NET
076B 2 444310071002P 444310071002P SPEAKER BRACKET SPEAKER BRACKET
084B 1 451510060008P 451510060008P SPACER C-505(D8XD5.2XL5) SPACER PWB
086B 1 445510075005P 445510075005P INSULATOR(PET0.1t) INSULATOR FOR MAIN PWB
090B 1 00D4610415007 00D4610415007 RUBBER SHEET
FOR MAIN PWB (BATT WIRE CLUMP)
091B 2 00M17CS107010 00M17CS107010 HIMERON 15×7×0.15t 15×7 HIMERON FOR SPK (Z201, Z203)
092B 2 00M17CS107010 00M17CS107010 HIMERON 15×7×0.15t
15×7 HIMERON FOR SPK WIRE
(W004,W005)
093B 1 451510064000P 451510064000P SPACER 6×6×0.4T 6×6 SPACER FOR TOP CASE
094B 2 00M17CS107010 00M17CS107010 HIMERON 15×7×0.15t
15×7 HIMERON FOR MIC WIRE
(W002, W003)
095B 1 451510065003P 451510065003P SPACER 5×5×0.2T 5×5 SPACER FOR P101
002G 1 401010012009P 401010012009P BOTTOM CASE BOTTOM CASE
004G 2 00M20BS123012 00M20BS123012 CONTACTOR + (+) CONTACTOR
006G 2 00M481C123150 00M481C123150 CONTACTOR (-) (-) CONTACTOR
008G 2 00M481C123130 00M481C123130 CONTACTOR (-) RELAY CONTACTOR
010G 4 00M329C056010 00M329C056010 BUFFER BUFFER FOR (-)CONTACTOR
012G 1 00M378V157010 00M378V157010 TAPE FOR BOTTOM CASE

Marantz PMD661 Specifications

General

Recording Format	MP3, WAV
Storage Media	SD/SDHC card
Microphone Input	XLR/TRS combo jack
USB	USB 2.0
Microphone	Built-in stereo microphones
Battery Life	Approximately 4 hours with alkaline batteries
Weight	650 g (without batteries)
Sampling Rate	44.1 kHz, 48 kHz
Bit Rate	32kbps to 320kbps (MP3)
Inputs	2 x XLR microphone inputs, 1 x 1/8" (3.5mm) line input
Outputs	1 x 3.5 mm headphone
Power	4 x AA batteries or AC adapter
