Marantz PMD670 - PHANTOM +48 V Switch; Microphone Recommendations; Carry Studs; Installing the Carry Strap

- 45 -
Right side continued
OFF: No microphone power is supplied.
Microphone recommendations
Professional condenser microphone(s) (which
require additional power either phantom power
from the PMD670 or from another source) are
recommended because they provide greater
sensitivity, and higher quality audio recording.
Dynamic microphone(s) can be used but do not
yield optimum audio quality recordings.
Consult with your local dealer to select the
appropriate microphone(s) for your specific
application. In many cases they can demonstrate
the various performances and characteristics of
microphones for your use.
PHANTOM
+48
V
ON
OFF
19
3
COLD 2 HOT
2
3
1
2
3
1
1 GND
L
R
MIC
L
R
LINE
IN
REMOTE
LINE
OUT
PHANTOM
+48V
ON
OFF
20
20 . Carry studs
Attach the supplied carry
strap here.
LINE
OUT
REMOTE
LINE
OUT
REMOTE
1. Attach a strap
retainer through the
round hole.
2. Add carry strap.
LINE
OUT
REMOTE
LINE
OUT
REMOTE

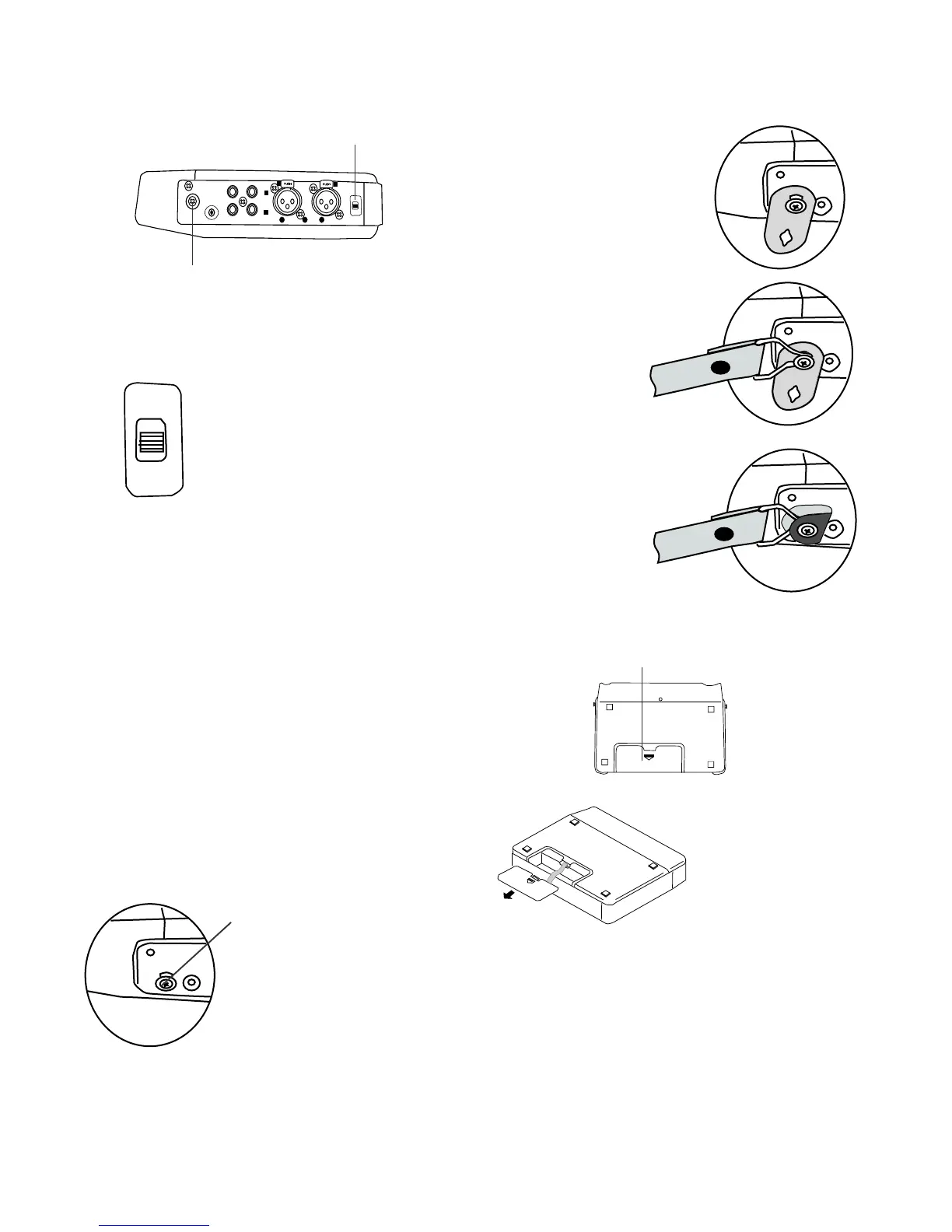

Installing the carry strap
3. Close strap
retainer.
21
19. PHANTOM +48V switch
Switch to ON to provide 48V
of power for a condenser
microphone(s).
ON: +48V is supplied to
power condenser
microphone(s).
Bottom
21. Battery com-
partment
Press and slide
at arrow to open
the Battery
compartment.
