Display
MARK
TRACK
TOTALTRACKTIME
REC REMAIN kbps
A-B
L
R
-dB
PM
kHz
AM
INT
MIC
LINE
S.SKIP
-dB
over
0
26
12
20
40
00
1 2 3 4 5 6 7
8 9 10 11 12 13 14
15 16 17 18 19 20 21 22 23

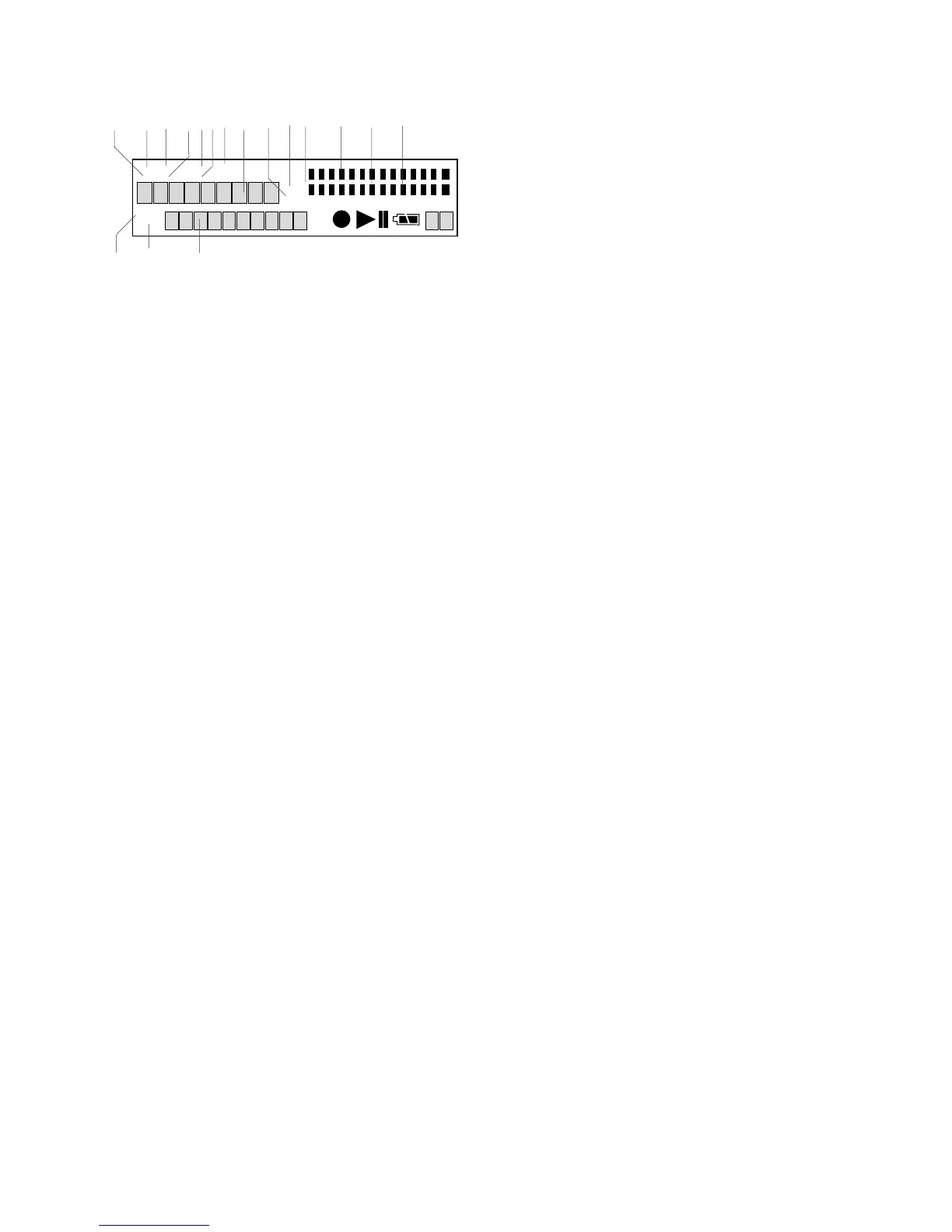

1. REC label
The REC label appears with other labels in
this area to indicate TOTAL REC TIME or
REC TIME REMAINING displayed on the
upper alphanumeric display.
2. TOTAL label
The TOTAL label appears with other labels in
this area to indicate TOTAL REC TIME, or
TOTAL REC TIME REMAINING displayed on
the upper alphanumeric display.
3. TRACK label
The TRACK label appears with other labels in
this area to indicate TRACK TIME displayed
on the upper alphanumeric display.
4. REMAIN label
The REMAIN label appears with other labels
in this area to indicate REC TIME REMAIN-
ING, or TOTAL REC TIME REMAINING
displayed on the upper alphanumeric display.
5. TIME label
The TIME label appears with other labels in
this area to indicate REC TIME REMAINING,
TOTAL REC TIME REMAINING, or TRACK
TIME displayed on the upper alphanumeric
display.
6. kbps label
The kbps label appears to indicate that the
first five places in the upper alphanumeric
display are kilobytes per second.
7. A-B label
A- indicates that the beginning (A point) of an
A-B loop has been set.
A-B indicates that the ending (B point) of an
A-B loop has also been set.
8. Upper alphanumeric display
Displays a variety of information including
remaining recording time, clock time, menu
settings etc. Associated labels are display
items 1-7 and 9-10.
9. AM / PM label
Displays AM or PM when clock time is dis-
played.
10. kHz label
The kHz label appears to indicate that the
last five places in the Upper alphanumeric
display is frequency in kiloHertz.
11. L -dB R level meter labels
L is the label for the upper (Left) level meter.
-dB is the label for the center level meter
scale in decibels.
R is the label for the lower (Right) level
meter.
12. Upper level meter
The louder the sound input to the recorder on
the Left channel the more bars are displayed.
13. Decibel scale
The scale in dB (decibels) for the upper and
lower level meters.
14. Lower level meter
The louder the sound input to the recorder on
the Right channel the more bars are dis-
played.
15. TRACK label
The TRACK label appears to indicate that the
number displayed on the left of the lower
alphanumeric display is the track number.
16. MARK label
The MARK label appears to indicate that the
number displayed on the left of the lower
alphanumeric display is the EDL Mark num-
ber.
17. Lower alphanumeric display
Displays a variety of information including
remaining recording algorithm, date, track
number, number of tracks on CF card, EDL
