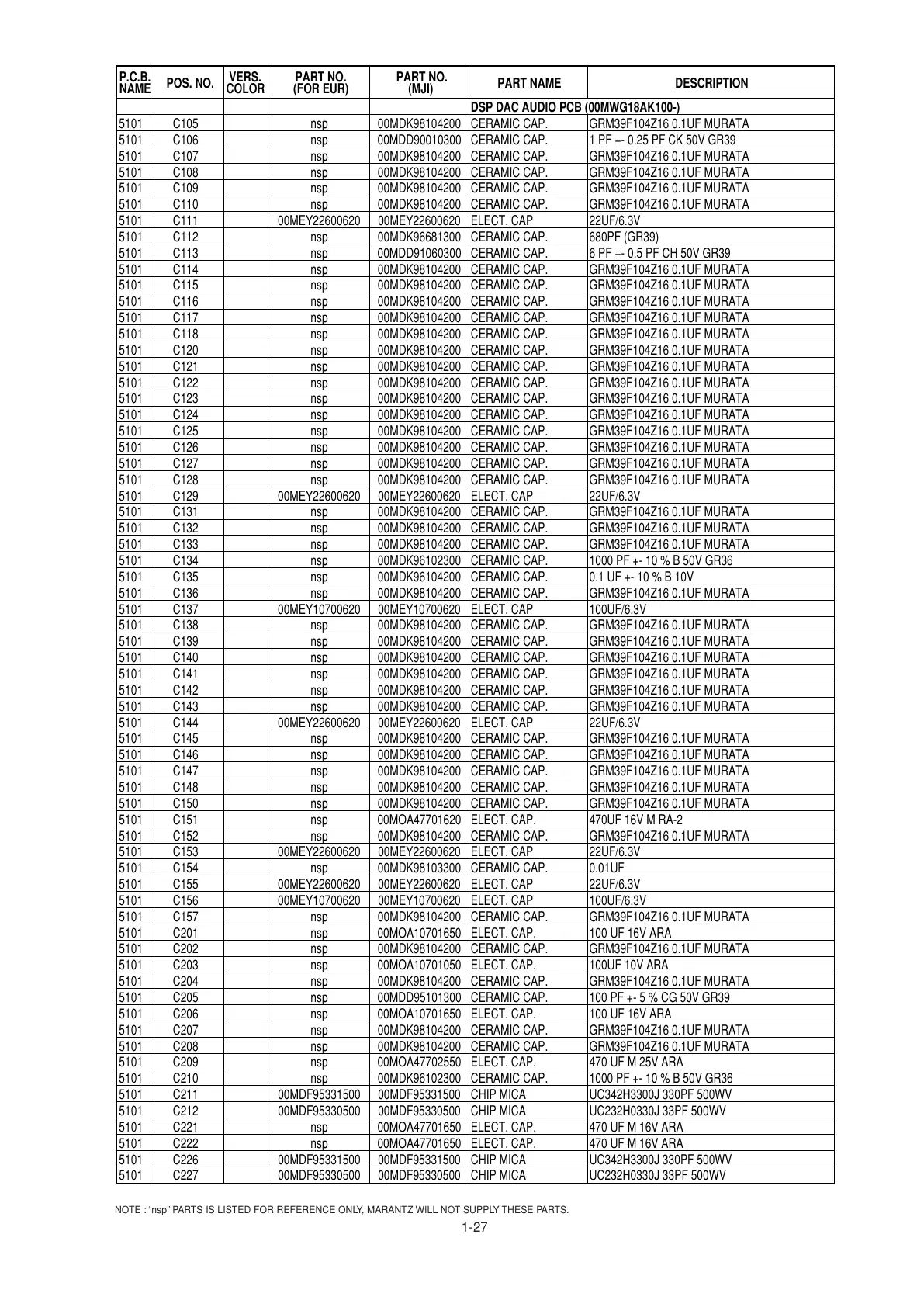

1-27
NOTE : “nsp” PARTS IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
DESCRIPTION
DSP DAC AUDIO PCB (00MWG18AK100-)
5101 C105 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C106 ns
p
00MDD90010300 CERAMIC CAP. 1 PF +- 0.25 PF CK 50V GR39
5101 C107 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C108 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C109 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C110 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C111 00MEY22600620 00MEY22600620 ELECT. CAP 22UF/6.3V
5101 C112 ns
p
00MDK96681300 CERAMIC CAP. 680PF
(
GR39
)
5101 C113 ns
p
00MDD91060300 CERAMIC CAP. 6 PF +- 0.5 PF CH 50V GR39
5101 C114 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C115 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C116 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C117 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C118 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C120 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C121 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C122 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C123 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C124 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C125 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C126 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C127 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C128 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C129 00MEY22600620 00MEY22600620 ELECT. CAP 22UF/6.3V
5101 C131 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C132 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C133 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C134 ns
p
00MDK96102300 CERAMIC CAP. 1000 PF +- 10 % B 50V GR36
5101 C135 ns
p
00MDK96104200 CERAMIC CAP. 0.1 UF +- 10 % B 10V
5101 C136 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C137 00MEY10700620 00MEY10700620 ELECT. CAP 100UF/6.3V
5101 C138 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C139 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C140 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C141 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C142 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C143 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C144 00MEY22600620 00MEY22600620 ELECT. CAP 22UF/6.3V
5101 C145 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C146 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C147 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C148 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C150 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C151 ns
p
00MOA47701620 ELECT. CAP. 470UF 16V M RA-2
5101 C152 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C153 00MEY22600620 00MEY22600620 ELECT. CAP 22UF/6.3V
5101 C154 ns
p
00MDK98103300 CERAMIC CAP. 0.01UF
5101 C155 00MEY22600620 00MEY22600620 ELECT. CAP 22UF/6.3V
5101 C156 00MEY10700620 00MEY10700620 ELECT. CAP 100UF/6.3V
5101 C157 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C201 ns
p
00MOA10701650 ELECT. CAP. 100 UF 16V ARA
5101 C202 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C203 ns
p
00MOA10701050 ELECT. CAP. 100UF 10V ARA
5101 C204 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C205 ns
p
00MDD95101300 CERAMIC CAP. 100 PF +- 5 % CG 50V GR39
5101 C206 ns
p
00MOA10701650 ELECT. CAP. 100 UF 16V ARA
5101 C207 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C208 ns
p
00MDK98104200 CERAMIC CAP. GRM39F104Z16 0.1UF MURATA
5101 C209 ns
p
00MOA47702550 ELECT. CAP. 470 UF M 25V ARA
5101 C210 ns
p
00MDK96102300 CERAMIC CAP. 1000 PF +- 10 % B 50V GR36
5101 C211 00MDF95331500 00MDF95331500 CHIP MICA UC342H3300J 330PF 500WV
5101 C212 00MDF95330500 00MDF95330500 CHIP MICA UC232H0330J 33PF 500WV
5101 C221 ns
p
00MOA47701650 ELECT. CAP. 470 UF M 16V ARA
5101 C222 ns
p
00MOA47701650 ELECT. CAP. 470 UF M 16V ARA
5101 C226 00MDF95331500 00MDF95331500 CHIP MICA UC342H3300J 330PF 500WV
5101 C227 00MDF95330500 00MDF95330500 CHIP MICA UC232H0330J 33PF 500WV
P.C.B.
NAME
POS. NO.
VERS.
COLOR
PART NO.
(FOR EUR)
PART NO.
(MJI)
PART NAME
